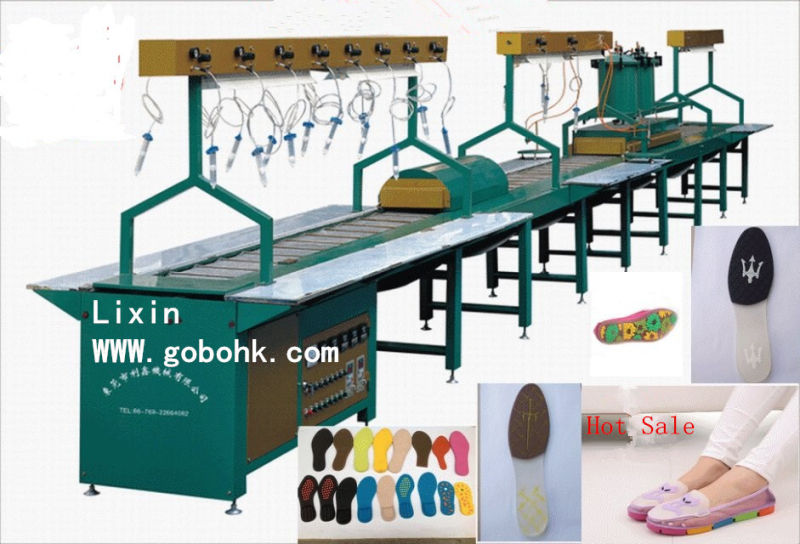

Mutil Color PVC Label Making Machine/PVC Label Injection Machine/ PVC Gifts Automatic Production Line
PVC Automatic Production Line is used for the soft PVC product, such as: Photo frame/ key chain /luggage tag /key ring / patch/watch strap/mouse mat/brooch/refrigerator magnets/ coasters/ bar mat/ table mat/car mat/mobile stand/cup coaster/cup mat/and many kinds of PVC label used onto garment,shoes,bags,gifts etc.

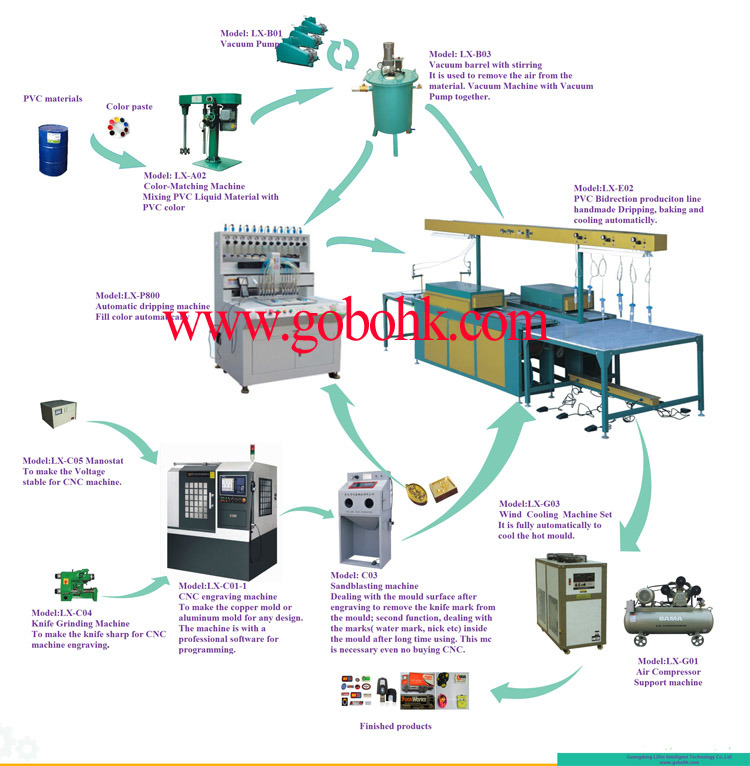

Mould making equipment
1. LX-C01-1 CNC engraving machine
Application:
To make the copper mold or aluminum mold for any design. The machine is with a professional software for programming.
2. LX-C04 Knife Grinding Machine
Application: To make the knife sharp for CNC machine engraving.
Specification: 5 KW
Volate: 220V single phase
3. LX-C05 Manostat
Specification: 5 KW
Volate: 220V single phase
Application: To make the Voltage stable for CNC machine.
Remarks: If CNC is not required, buyer can consider to buy the moulds from us in the beginning. If so above 3 mentioned machine unit are not required.
4. Sandblasting machine
Application:
Dealing with the mould surface after engraving to remove the knife mark from the mould; second function, dealing with the marks( water mark, nick etc) inside the mould after long time using. This mc is necessary even no buying CNC.
.5. LX-A02 Color-Matching Machine
Application:
Mixing PVC Liquid Material with PVC color
| Power Requirement | 380V, 3 Phase, 1.1Kw |
| Air Requirement | 5kg/cm2 |
6.LX-B03
Vacuum barrel with stirring
Application:
During mixing the PVC with color, air will go inside
the PVC material. It is used to remove the air from
the material. This is done by Vacuum
Machine with Vacuum Pump together.
7. LX-B01 Vacuum Pump
Application:
Remove the air from the Vacuum Machine
| No of Unit | 1 (Standard 30L) |
| Power Requirement | 380V, 3 Phase, 3Kw |
| Air Requirement | None |
8. LX-P800 Automatic dripping machine( 12 color)
Application: to fill the color automatically
9. PVC Bidrection produciton line without dripper
Application: baking and cooling the mould
automatically
10. LX-G01 Air Compressor
Application:
Air Pump
| Power Requirement | 380V, 3 Phase, 7.5Kw |
| Air output | 6 - 8kg/cm2 |
| Size of compressor | 0.1/m3 |
11. LX-G03 Wind Cooling Machine Set
Application:
Wind Cooling Machine Set
The cooling plate in the production line needs cold water to cool the hot mould. It is fully
automatically to cool it.
This machine mainly apply to all kinds of PVC trademark(Clothing, shoes, handbags, bags)PVC soft adornment
(Cup mat, watch belt, picture frame, foot steps mat, steering wheel, car chair cushion, etc)and PVC soft toys(The doll, Donald Duck)
Realize product diversity and good flexibility. The machine itself configuration a little gum machine, automatic frozen equipment, molding machine, and baked part
This machine mainly apply to all kinds of PVC trademark(Clothing, shoes, handbags, bags)PVC soft adornment
(Cup mat, watch belt, picture frame, foot steps mat, steering wheel, car chair cushion, etc)and PVC soft toys(The doll, Donald Duck)
Realize product diversity and good flexibility. The machine itself configuration a little gum machine, automatic frozen equipment, molding machine, and baked part
| Code | LX-E01-A | LX-E01-B | LX-E01-C |
| Max. products size | 150*150mm | 250*330mm | 550*800mm |
| Main conveyer width | 300mm | 350mm | 650mm |
| Work table width | 300mm | 300mm | 500mm |
| Mould return conveter width | 180mm | 250mm | / |
| Quantity of dripper | 20 sets | 24 sets | 18 sets |
| Total power | 23.5KW | 32KW | 70KW |
| Voltage | AC/380V | AC/380V | AC/380V |
| Weight | 600kg | 950kg | 2200kg |
| Dimension | L11000*W1250*H1800mm | L17500*W1400*H1800mm | L25000*W1800*H1800mm |
Company profile
DONG GUAN LI XIN MACHINERY CO., LTD found in 1992, acting as first leading and most professional manufacture specialized in PVC and Silicone machinery.
Strong R&D team and years of experience earn us a good reputation in the world where the machine to have been.
Because of development request, we establish Our oversea office in India, Bangladesh and Indonesia and also hoping to have many office in other countries very soon.
Pre-sale service:
1. You will get free solution for your production with suitable machinery combination.
2. You will get Factory direct sale price.
3. You will get durable quality of machine and most professional service.
4. Your visiting to our factory for checking or training is warmly welcome.
After-sale service:
1. Warranty: 1 year free and life long maintenance
2. Free installation & training service.
3. 24 hours online consult a day;
FAQ:
1Q:Can you provide technical support?
A: We provide free technical support for machine installation and 3 to 15 days training.
We can provide production consulting and guide because our deputy General Manager worked in Philippine 1 year and worked in Bangladesh 6 years and worked in India 1 year and worked in indonesia 2 years so we can give best solution for production whenever you meet difficulty.
We also can dispatch rich experience specialists for a long term working to your factory.
2Q: How do you support when machine goes wrong.
A: Talk with our specialist online by telephone, skype, wechat,etc and we will give imm. solution for some incorrect operation or change the consumable parts which we dispatch freely as parts packing list with the machine shipment.
B: Our specialist will teach you how to change the parts during the training time.
3Q:Why choose Dongguan Li Xin Machinery Co., Ltd?
A:We are the first leader and most professional manufacturer in China for such industry.
B: We have R&D team who can design fully new and automatic machine to update the processing.
C: We give one station solution including raw material, mould, main production machine and support machine and technology.
D: Our machine with more than 30% energy saving. Highest speed with fully automatic solution.
E: Excellent pre-sale and after-sale services. If you give me a chance, you will get it Extremely worthy value.
4Q: Are customized products accepted?
A:Your idea, your choice, we design. Nothing is impossible. We are always waiting for you here, where are you.
