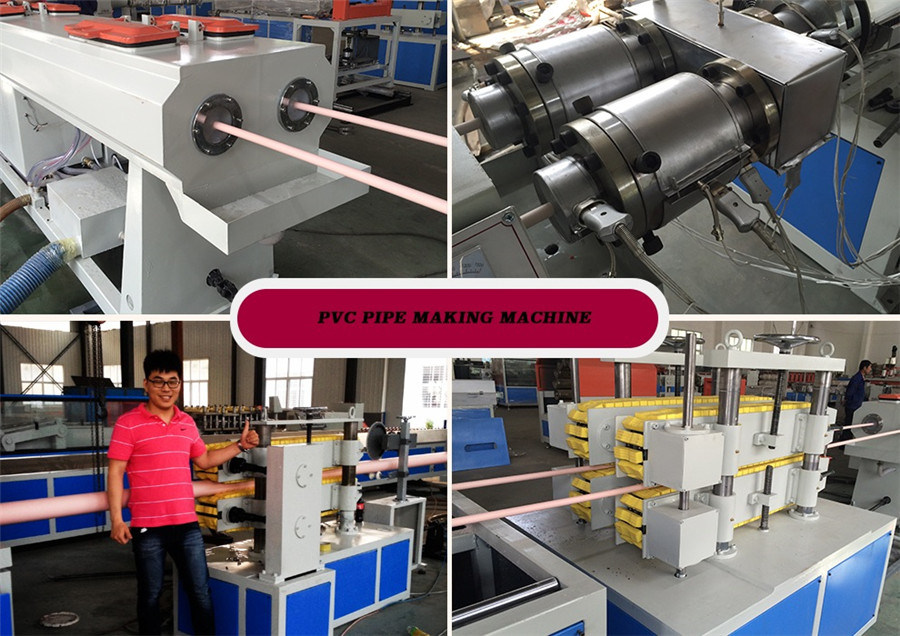

Plastic PVC Pipes Extrusion Line/ PVC Tube Production Line/Pipe Making Machine/Extruder/Machine

https://youtu.be/6vYFRSRhejY
https://youtu.be/tvsRtBTDxYQ

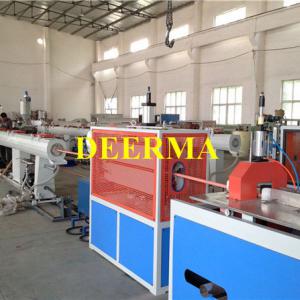

Complete extruder and extrusion lines for production of PVC pipes in diameter from 16 to 630mm.We also design and manufacture machines for production of CPVC pipe and PVC foam core pipe.

Application:
To produce variety of PVC pipe for water supply, drainage, cable protection ,etc

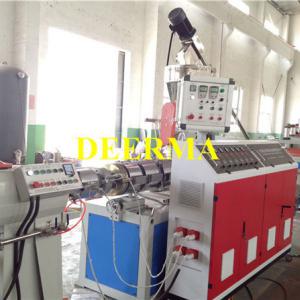

1,SJSZ Conical twin screw extruder: using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

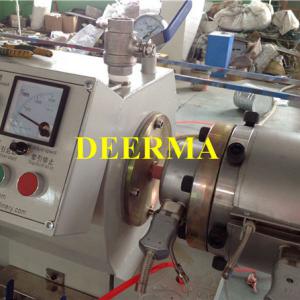

2,Mould: spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

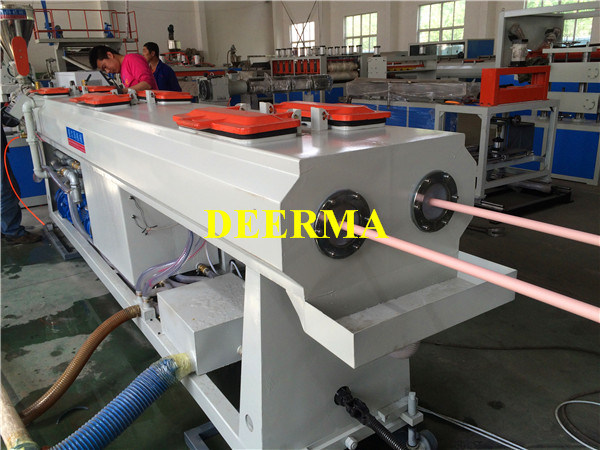

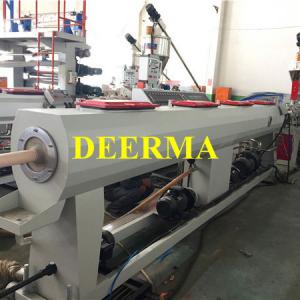

3,Spraying and cooling tanks: Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

4,Haul off machine: adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

5,Cutting machine:precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6,Pipe belling machine: automatic pipe belling machine comes with 2 heating ovens to ensure pipe belling quality and productivity.

Main technical data
