Chinese Electric Steam Generator for Sale
I. Introduction:
"FUTURE" Small electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
II. Featues:
1. Small Input Power(3-108KW) with higher output(4-150Kg/h).
2. Use of Titanium Alloy Heating Element, it ensures long-term effective operation of the boiler.
3. Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS, etc...
III. Technical Parameters:
| Model | LDR0.004-0.4 | LDR0.009-0.7 | LDR0.013-0.7 | LDR0.017-0.7 | LDR0.025-0.7 | LDR0.033-0.7 | LDR0.042-0.7 | |
| Item | Unit | |||||||
| Rated steam capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 33 | 42 |
| Rated working pressure | MPa | 0.4 (0.7) | 0.7 (0.8, 1.0) | |||||
| Saturated steam temp. | °C | 150 (171) | 171 (175, 184) | |||||
| Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 30 |
| Input current | A | 6 | 9 | 14 | 18 | 27 | 36 | 45 |
| Electric Voltage | V | 220 | 220/380 | 380 (Made to order) | ||||
| Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Steam outlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Blowdown valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Safety valve dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Overall dimension (L×W×H) | mm | 480×520×850 | 500×550×920 | 500×550×920 | 500×550×920 | 520×600×1000 | 520×600×1000 | 550×730×1130 |
| Net weight | kg | 50 | 75 | 79 | 85 | 92 | 118 | 136 |
| Model | LDR0.05-0.7 | LDR0.065-0.7 | LDR0.074-0.7 | LDR0.082-0.7 | LDR0.1-0.7 | LDR0.13-0.7 | LDR0.15-0.7 | |
| Item | Unit | |||||||
| Rated steam capacity | Kg/h | 50 | 65 | 74 | 82 | 100 | 130 | 150 |
| Rated working pressure | MPa | 0.7 (0.8, 1.0) | ||||||
| Saturated steam temp. | °C | 171 (175, 184) | ||||||
| Input power | KW | 36 | 48 | 54 | 60 | 72 | 96 | 108 |
| Input current | A | 54 | 72 | 81 | 90 | 110 | 145 | 163 |
| Electric voltage | V | 380 (Made to order) | ||||||
| Water inlet dia. | DN | 15 | 15 | 15 | 15 | 15 | 15 | 20 |
| Steam outlet dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
| Blowdown valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
| Safety valve dia. | DN | 15 | 15 | 15 | 20 | 20 | 20 | 25 |
| Overall dimension (L×W×H) | mm | 550×730×1130 | 550×730×1190 | 550×730×1190 | 560×770×1250 | 560×770×1290 | 630×810×1450 | 630×810×1450 |
| Net weight | kg | 136 | 149 | 149 | 190 | 210 | 236 | 270 |

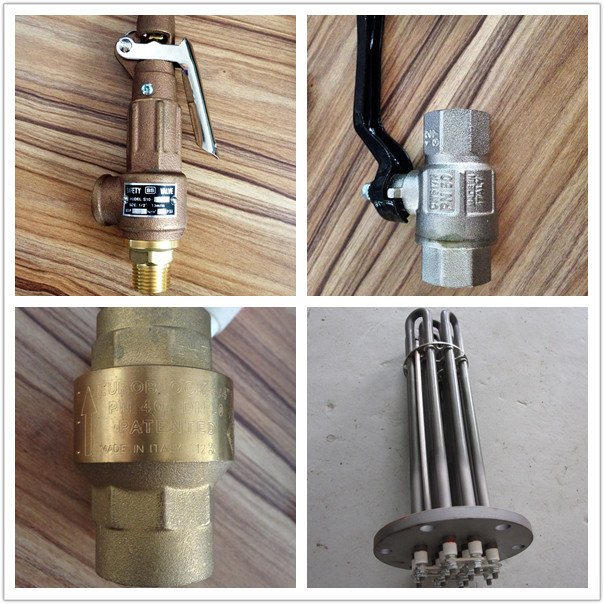

V. Top Quality Parts & Components
1) Heating heatings: Titanium alloy (3-year warranty)
2) Valves: Imported from Italy & Taiwan
VI. Customer Using Site (In Canada):
