ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant

1. Dominant product-biomass boiler:     Jinan Boiler Group Co., Lt.d is the largest biomass boiler research and development base and develops various types and series of biomass boilers. This series of product has the advantages of energy saving a

Technical Feature

  • Qingdao, China
  • 150 Sets/Year
  • L/C, T/T, D/P
  • Water Boiler, Steam Boilers
  • Biomass Burned
  • Bulk Boiler
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
YG-130/9.8-T
Drum Placement
Vertical Boiler
Pressure
Pressure
Manufacturing Level
A
Burning Style
Travelling Grate/Stepped Grate
Usage
Industrial, Power Station
Trademark
JBG
Transport Package
Steel Structure/Container
Specification
30TH-300TH
Origin
Shandong, China
HS Code
8402119000

DETAIL DESCRIPTION

1. Dominant product-biomass boiler:
    Jinan Boiler Group Co., Lt.d is the largest biomass boiler research and development base and develops various types and series of biomass boilers. This series of product has the advantages of energy saving and environmental protection. JBG has three kinds of biomass boiler technology, combined grate, water-cooling vibrating grate and Circulating Fluidized Bed. Since the operation of the first 130t/h biomass boiler in China in 2006, JBG has supplied more than 200 sets of biomass boilers.

2. Biomass boiler parameter:
DescriptionPARAMETER
rated capacity130t/h
rated steam pressure 9.8 MPa
rated steam temperature540ºC
rated water feeding temperature215ºC
applicable fuel  Wood chips/barks/straws etc.
guarantee heat efficiency90%
ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant

Other Product series
No.Boiler ModelCapacity, t/hSteam pressure,Mpa Steam Temperature,ºCNo.Boiler ModelCapacity, t/hSteam pressure,Mpa Steam Temperature,ºC
1YG-240/9.8-T2409.854021YG-95/5.29-T955.29485
2YG-240/5.29-T2405.2948522YG-95/3.82-T953.82450
3YG-240/3.82-T2403.8245023YG-85/9.8-T859.8540
4YG-220/9.8-T2209.854024YG-85/5.29-T855.29485
5YG-220/5.29-T2205.2948525YG-85/3.82-T853.82450
6YG-220/6.4-T2206.445526YG-75/9.8-T2759.8450
7YG-220/3.82-T2203.8245027YG-75/9.2-T489.2540
8YG-170/9.8-T1709.854028YG-75/5.29-T755.29485
9YG-170/5.29-T1705.2945029YG-75/3.82-T753.82450
10YG-170/3.82-T1703.8245030YG-65/9.8-T659.8540
11YG-150/9.8-T1509.854031YG-65/5.29-T655.29485
12YG-150/5.29-T1505.2954032YG-65/3.82-T653.82450
13YG-150/3.82-T1503.8245033YG-50/5.29-T505.29485
14YG-130/11.5-T13011.553534YG-50/3.82-T503.82450
15YG-130/9.8-T1309.854035YG-48/9.2-T489.2540
16YG-130/9.8-T11309.854036YG-45/5.29-T455.29485
17YG-130/9.2-T1309.854037YG-45/3.82-T453.82450
18YG-130/5.29-T1305.2948538YG-35/5.29-T355.29450
19YG-130/3.82-T1303.8245039YG-35/3.82-T353.82450
20YG-95/9.8-T959.8540

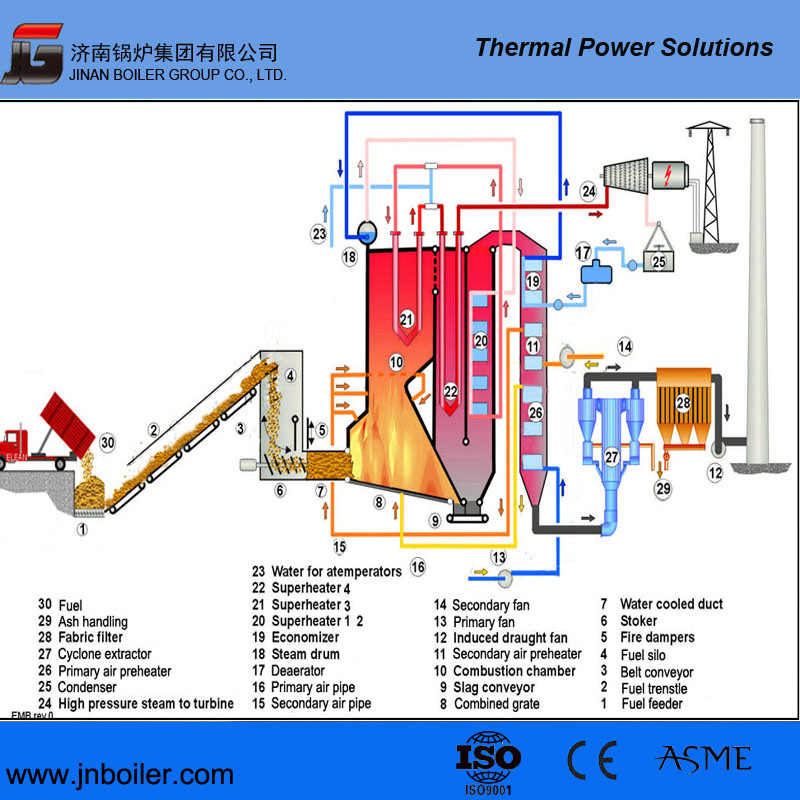

3. Biomass boiler types and features:
Boiler TypeFeatures
combined grate1. stepped and travelling grate
2. better adjustment performance
3. suitable for high moisture
4. suitable for a variety of fuels
circulating fluidized bed1. suitable for hard fuel
2. high combustion efficiency
3. stable operation control
4. wide load control range
water cooling vibrating grate1. techonology from Europe
2. directional combustion
3. suitable for single fuel
4. high combustion efficiency

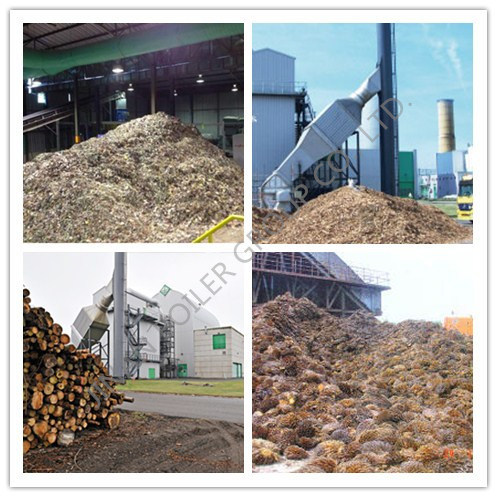

4. Biomass boiler burning fuel:
*Agriculture waste:
wheat straw, corn straw, cotton, peanut straw, rice straw, sugarcane leaves, rice husk, peanut shells, corn cob, bagasse, palm fiber, palm shell, empty fruit bunch(EFB)
*Forest waste: Wood piece, wood chip, sawdust, wood branch, bark, leaves, green mud etc.
*Industial waste: Cloth, paper, rubber, plastics, leather, sludge, medical waste etc.
ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant


5. Company introduction:
        Established in 1954, Jinan Boiler Group Co., Ltd. ( Hereinafter called "JBG" ) is a large backbone company that manufactures Grade "A" power boilers and industrial boilers in China, and is also one of the leading companies for CFB boiler and biomass boilers. With the total asset value being over RMB 3 billion, JBG has 1500 employees, including 360 engineering technical staff. Located in the famous historical and cultural city -Jinan, the capital of Shandong Province, which is called "City of Springs", JBG covers an area of 320,000 square meters.
        Majoring in the manufacture of power boilers and industrial boilers, JBG integrates the research & design, manufacture, auxiliaries supply, installation, maintenance, alteration, power plant EPC, environmental project EPC and technology consultation, and tries to step over from a single boiler supplier to an EPC contractor.
        Adhering to the business principle "dedicating clean energy, making green products, improving economic benefit and building harmonious enterprise", JBG develops the first circulating fluidized bed power boiler in China, introduces and digests the 100% biomass power boiler technology and manufactures the first 30MW biomass power boiler in China. Now, JBG has grown up to be a globally-known CFB (Circulating Fluidized Bed) boiler research base and the largest biomass fired boiler manufacture base, and JBG is one of high-tech enterprises in Shandong Provence and recognized as an experimental base by the Thermophysics Institute of China Academy of Science. JBG positively follows the low carbon economy trend and development of new energy industry and vigorously develops CFB boilers, biomass power boilers etc. for energy conservation and environmental protection. Now, JBG has developed more than 10 series and 100 types of products including CFB boilers, biomass boilers, pulverized-coal fired boilers, hot water boilers, waste heat recovery boilers, chemical recovery boilers, oil/gas fired boilers, waste incineration boilers, De-Sox & De-NOx products and pressure vessels etc.. The products are popular in China and exported to many countries, including Japan, Belgium, Singapore, Indonesia, Malaysia, Thailand, Pakistan, India, Viet Nam, Cambodia, Mongolia, Nigeria, Rwanda etc.
ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant

6. Company certificates:

ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant
ASME/Ce 130 T/H Stepped+Travelling Grate Biomass Boiler for Power Plant
