Water Supply Pipeline Sonar Inspection System
(Model: X4)
Water Supply Pipeline Sonar Inspection System
Product description:
When the pipeline is full of water without emptying conditions, any traditional video testing method fails to obtain a better testing effect. However, X4 pipeline section sonar imager is just applicable to such pipelines (various pipelines with diameter or section up to 125mm~6000mm).

Technical Parameters
Sonar capsule


-Size: 346mm in total length; diameter up to 50mm70mm
-Material: stainless casing
-Maximum applicable pipe diameter: 6000mm
-Power requirements: 26V DC (+/-1V), 0.5A constant; 1A peak
-Weight: 3kg
Master control box


-Size: 110mm * 165mm * 35mm;
-Weight: 0.2kg;
-Power supply: 220V electric supply connection
Manual Cable Reel

-Counting: high precision coder(+ 0.1M), used for measuring the length of cables;
-Cable arrangement: manual winding device;
-Protection: IP63, dust proof and water-spattering resistance;
-compatibility: applicable to various models of creepers;
-Size: 330mm * 420mm * 570mm.
-Length: standard cable length is of 150m and it can be customized.
Probe Floating cylinder

-Stainless material; integral cylinder design; applicable range of pipe diameter: 150mm~6000mm;
-Size: 140mm * 70mm * 400mm;
-Weight: 2kg;
-Buoyancy force: 5kg;

Product application:
For structural defects (such as deformation, collapse, crack, encrustation, secret joint of branch pipelines, etc.) and functional defects (such as deposition, floaters) of most pipelines,X4 pipeline section sonar imager can reach an accurate effect and a mouse is adopted for measurement and analysis.

Products Details:

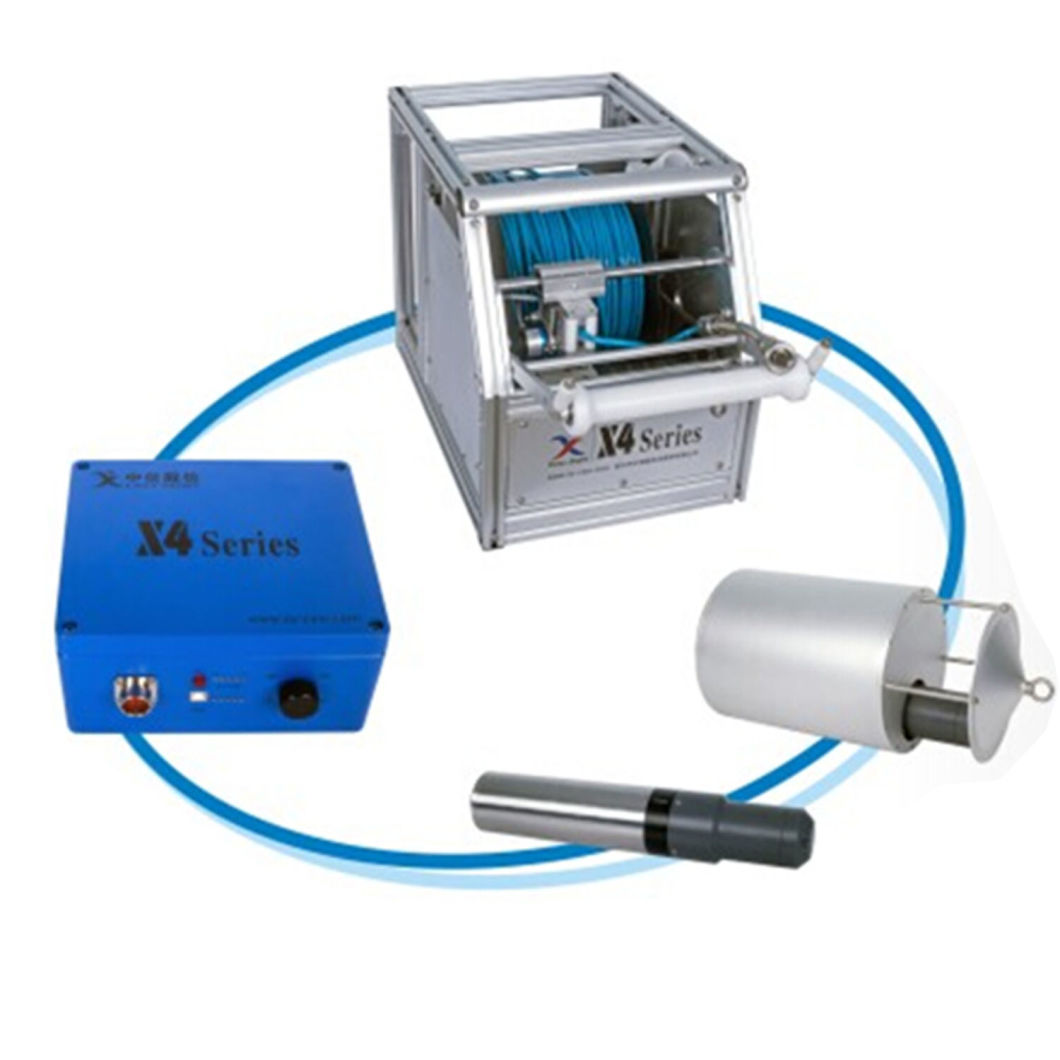

X4 pipeline section sonar imager is composed of four parts including sonar capsule, cable reel, host computer and Pipe Sonar pipeline sonar testing imaging analysis software. By adopting sonar imaging technology, the underwater scanning unit (sonar capsule) is placed underwater inside the pipeline (both the full and semi-full pipeline are available) and the image moves by creeper or artificial dragging (sliding or floating) inside the pipeline. Integrating Pipe Sonar pipeline sonar testing imaging analysis software, the host computer can acquire and display profile pictures with high resolution. Any deposition and coagulation inside the pipeline or structural damage pipe wall damage on the pipe wall can be determined by the analysis of profile features.
Water Supply Pipeline Sonar Inspection System
Overseas Exhibition show:

1.Easy-sight Deputed on Water Environment Federation's Technical Exhibition and Conference (WEFTEC) in the US
Water Supply Pipeline Sonar Inspection System

2.China-made New Pipeline Inspection Equipment debuted in 2017 Japan Tokyo Sewage Works Exhibition
Water Supply Pipeline Sonar Inspection System


Certificates
Water Supply Pipeline Sonar Inspection System

Our X4 Sonar Inspection System advantages

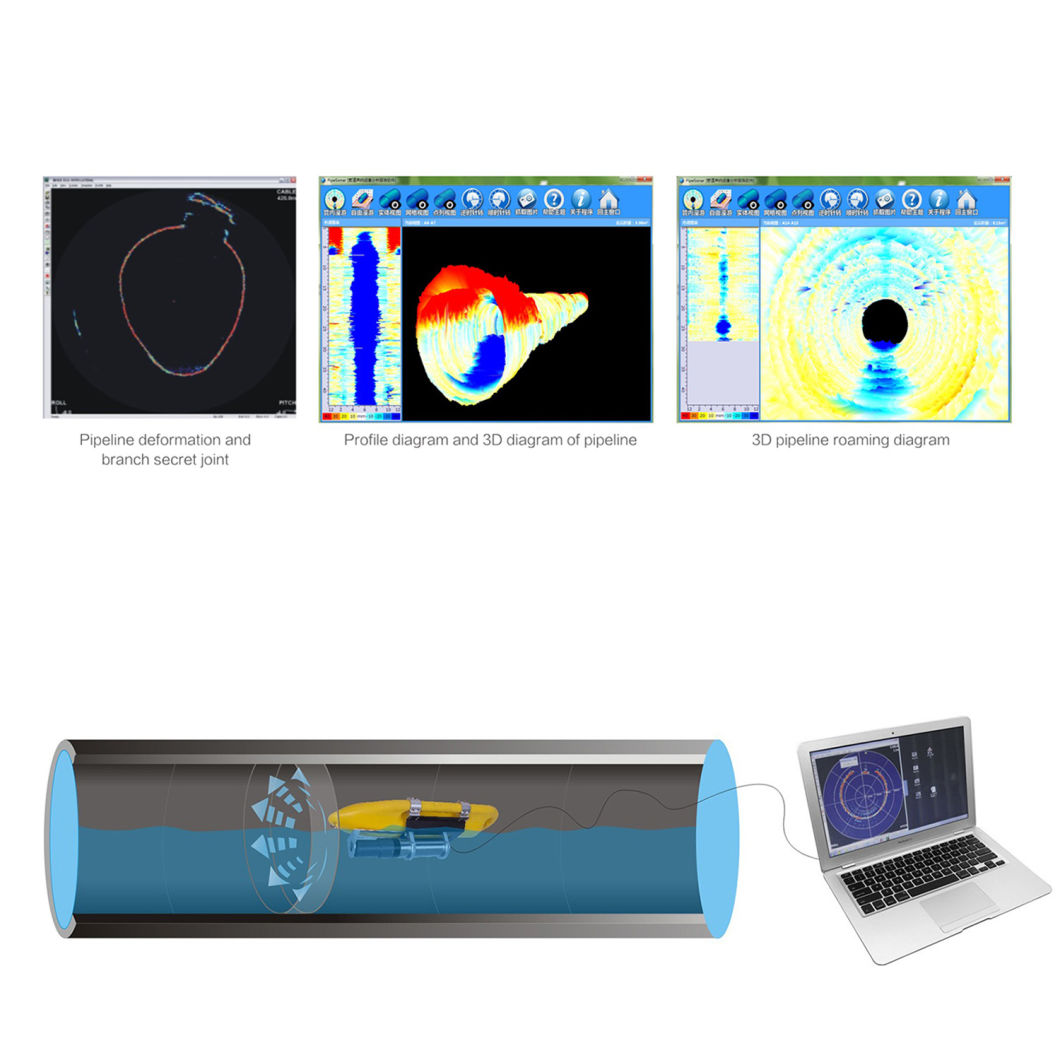

Three-dimensional imaging

It will help the operator to observe pipe inner construction defects more clearly and directly, 3D sonar system with 3D display,can rotate to any orientation to check the 3D image and video.3D perspective and scale

Deep pipe water inspection
When the pipeline is filled with water deep more than 300mm, and the conditon for drainage does not passed , it can use for pipe network structure inspections.

Synchronous pipeline inspection both above water and under water
It can add floating valves ,realize CCTV and both above water and under water precise both above water and under water inspection


Packing & Shipping
Water Supply Pipeline Sonar Inspection System


Our Perfect Service
1.After -service:We firmly believe that depending on the abundant strength, advanced equipment, perfect detection method, stable technology and outstanding professionals as well as our good faith and excellent service, we will certainly bring you satisfactory returns.


2.Technical help:Wuhan easy-sight Technology Co., Ltd provides pipeline detection,maintenance, repair and technical services, which focused on providing efficient and environmentally friendly drainage network solutions.

3.Warranty policy: The warranty time is 12 months counting from the date on which the commodity arrives at the port of destination, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, or customers can return it back ,we will maintain it well.

4.Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

5.Lifelong Services:  We provide lifelong services for all the products we sold out, and supply the spare parts with competitive price.

6.Language: We have a professional sales team who are good at English to ensure zero communication barriers.

7.Detailed Operational Manual &Training CD in English Version will be offered. We also provide free training if you worried operation matters, welcome you visit our factory, our professional technicians will teach you how to use the machine in correct way.

8.OEM order is welcomed , and we can print the customer brand  logo on the product free of charge.
