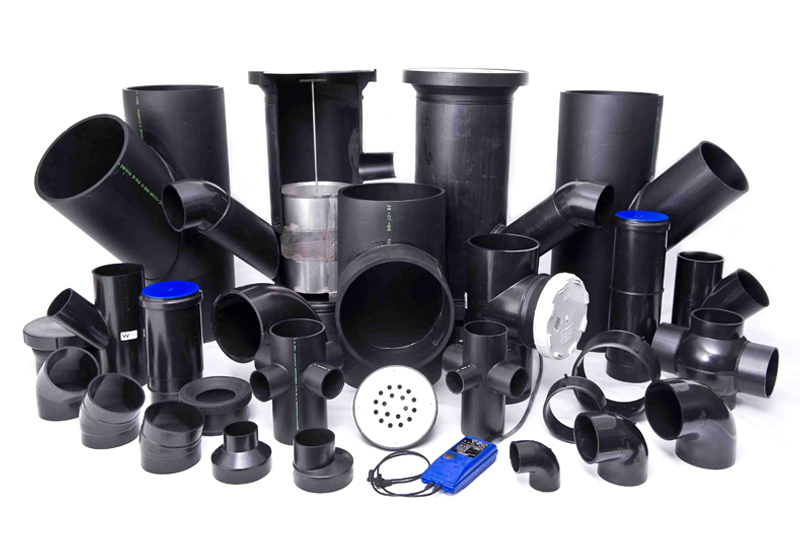

PE80 Natural Gas Pipe Water Supply System
Product Features
HDPE pipe is widely used for water supply,irrigation,chemical industry.We use PE resin with god mechanical property as raw material.The pipe has good tensile strength.
Outer diameter:20mm~1600mm
Material:High quality,virgin PE100/PE80
Pressure:PN4,PN6,PN8, PN10, PN12.5, PN16 PN20( SDR33, SDR26, SDR21, SDR17,SDR13.6, SDR11,SDR9)
Connection: Socket fusion, butt fusion joint, electro fusion joint, flanged joint
Standard: ISO4427, GB/T13663-2000

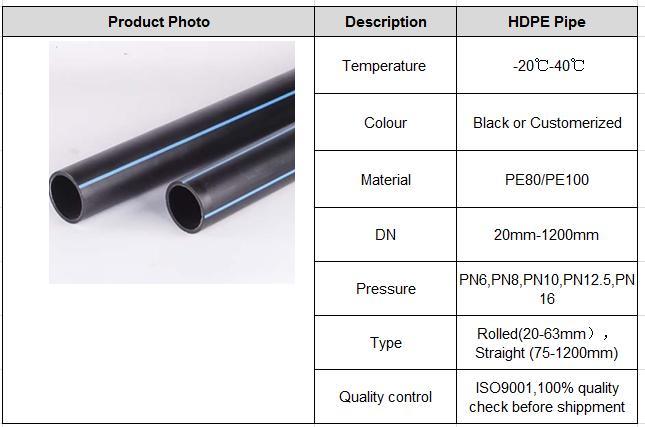

Specification
| dn(mm) | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.6MPa | |
| Thickness | Thickness | Thickness | Thickness | Thickness | |
| 20 | 2 | 2 | 2 | 2 | 2.3 |
| 25 | 2 | 2 | 2.3 | 2.3 | 2.3 |
| 32 | 2 | 2.3 | 2.3 | 2.5 | 3 |
| 40 | 2.3 | 2.3 | 2.5 | 3 | 3.7 |
| 50 | 2.3 | 2.5 | 3 | 3.7 | 4.6 |
| 63 | 2.9 | 3 | 3.7 | 4.7 | 5.8 |
| 75 | 3 | 3.7 | 4.5 | 5.6 | 6.8 |
| 90 | 3.7 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.2 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 |
| 900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 |
| 1000 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 |
| 1200 | 45.9 | 57.2 | 67.9 | 88.2 | - |
| 1400 | 53.5 | 66.7 | 82.4 | 102.9 | - |
| 1600 | 61.2 | 76.2 | 94.1 | 117.6 | - |

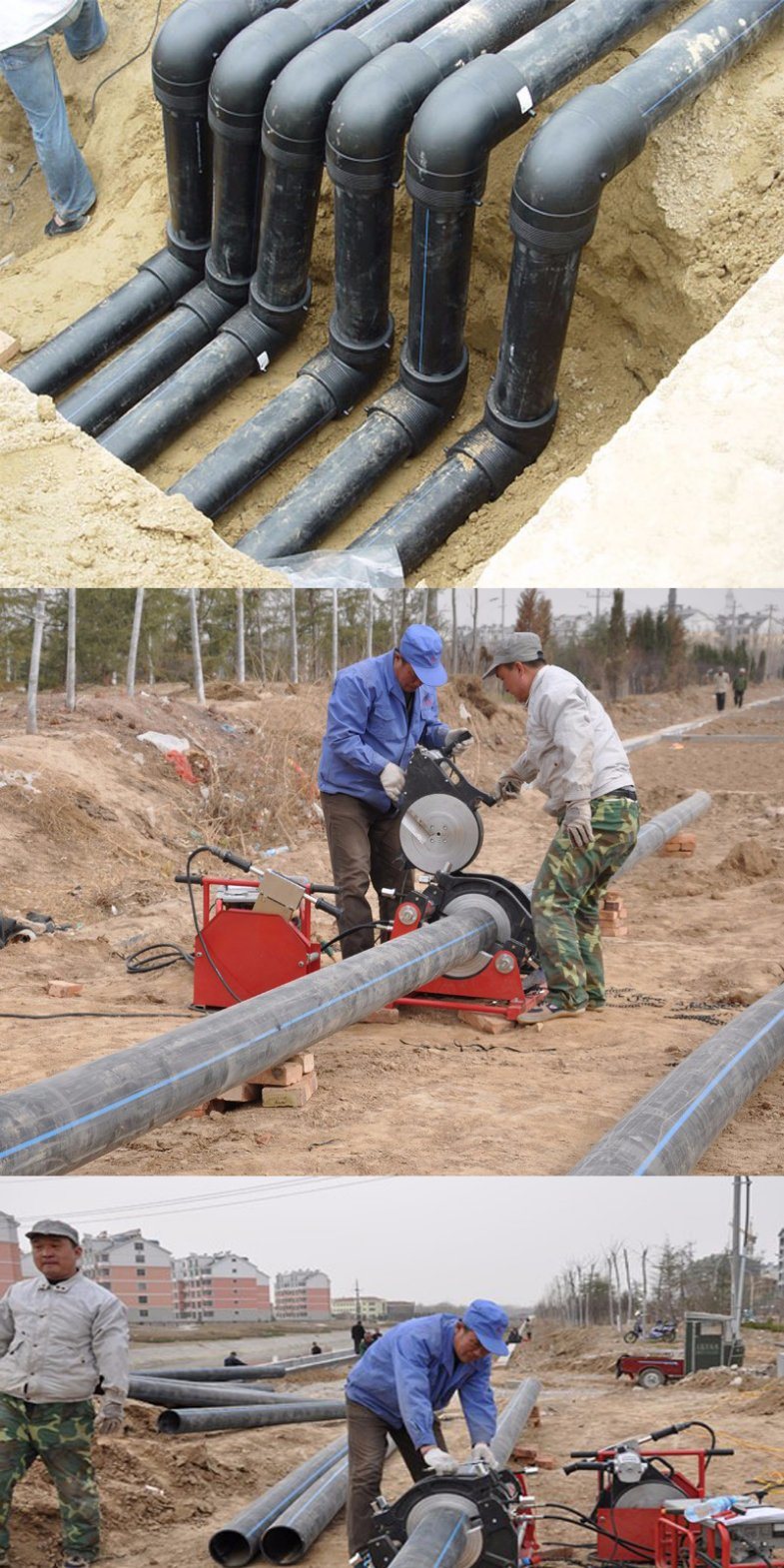

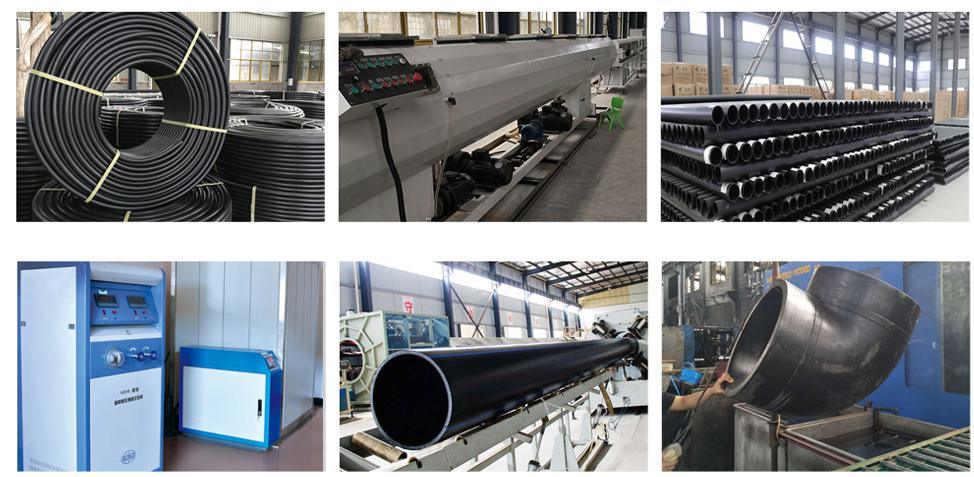

Project Images

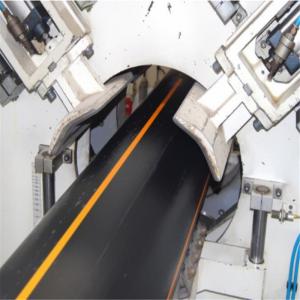

Details
Applications
•City and town dringking water supply system
•Sea bed water supply system
•Food and chemical industry
•Replacement of cement pipe and steel pipes
•Argillaceous silt,mine,mud transportation
•Irrigation and garden green pipe networks and sewage treatment
•Nature gas supply system
Project Case

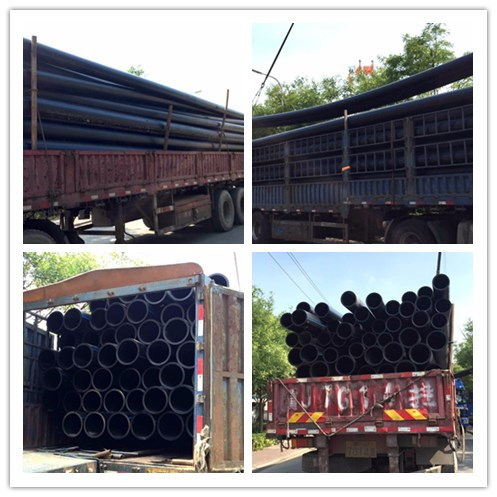

Shipping&Packaging
Certification
•Sea bed water supply system
•Food and chemical industry
•Replacement of cement pipe and steel pipes
•Argillaceous silt,mine,mud transportation
•Irrigation and garden green pipe networks and sewage treatment
•Nature gas supply system
Project Case
Shipping&Packaging
Certification
FAQ
Q: Are you trading company or manufacturer ?
A: Our factory is one of the biggest HDPE products, HDPE machines manufacturer in China
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: What is your terms of payment ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
