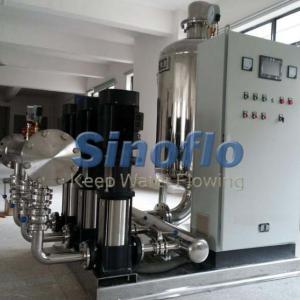

Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System

Description of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump SystemVariable frequency pump series constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controll

Technical Feature

  • Shanghai, China
  • 1000 PCS Per Year
  • L/C, T/T
  • >150m
  • >400 L/min
  • Motor
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Condensate Pump, Ash Pumps, Circulating Pump
Transport Package
Export Wooden Case
Specification
cast iron, stainless steel
Origin
China

DETAIL DESCRIPTION

Description of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System
Variable frequency pump series constant pressure frequency conversion water supply system is composed of newest great performance PID frequency conversion controlling cabinet, one pump or more than 2 pumps. It is the top technical water boosting equipment, which can automatically adjust to satisfy the requirement of constant pressure, variable water demand.

The pressure of water supply net can be kept constant water pressure. The whole water supply system can be at best effective, energy saving, perfect status.

Parts of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System

Vertical stainless steel multistage pump
Frequency converter and pressure sensor
A series pipeline, valve and base

Application of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System
Water plant and booster pump station
Water supply of residential area, hotel, restaurant and big public building
All kinds of factory
Fire fighting of residential area, hotel, restaurant and big public building
Factory constant pressure ,cooling water and circulation water
Hot water supply, air condition and so on
Sewage pump station,sewage handle and so on
Agricultural irrigation,greenland irrigation, landscape and fountain

Water Supply Way of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System
There are two ways of water supply, they are frequency convention water supply and pressure tank water supply.
a. Frequency water supply is automatically adjust the rotation speed of one pump or run/stop one or more pumps, which is the best water supply way to keep the water supply net to be stable .

b. Another way is pressure tank water supply which don,t start the pump motor, the pressure tank store some water which can offer water when you need less water. Such as at night or any other case. It is easy to use for Domestic water supply
For more information. contact us, our engineer will give you best solution for your requirement

Advantage of Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System
According to water consumption,usage frequency converter to control speed of the pump ,high efficieny
and protection the pump.
Usage pressure sensor, top floor and base floor are same pressure--constant pressure
Easy to install,only connect the cable, you can use it.

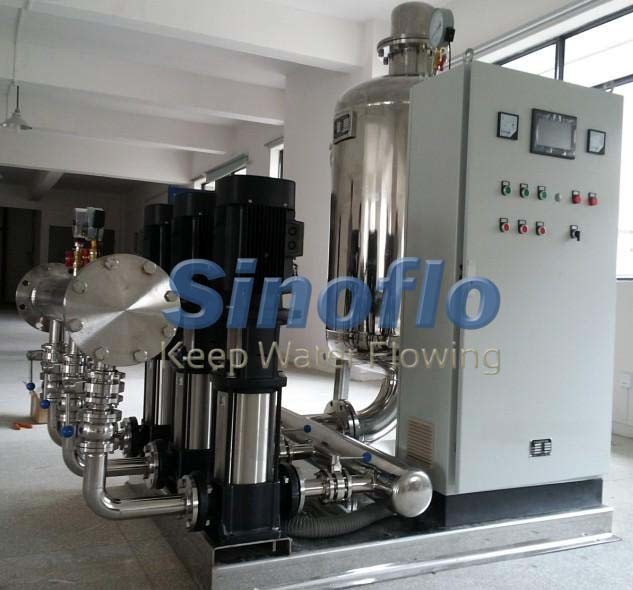

Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System

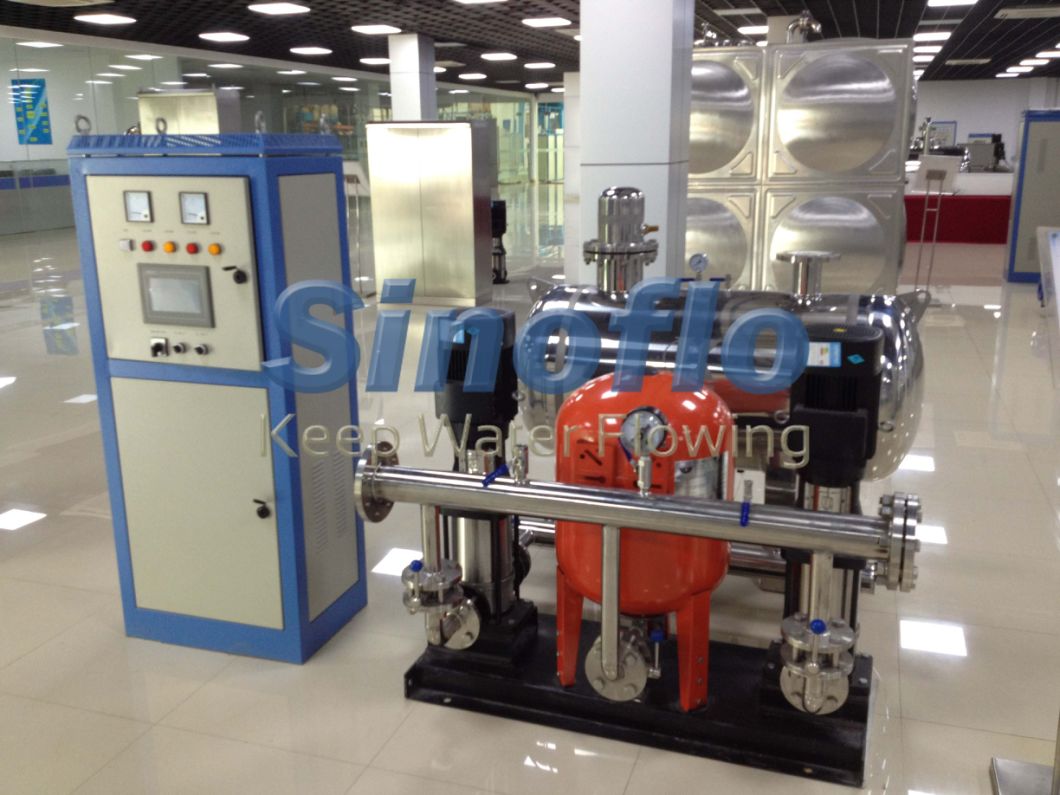

Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System




Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System

Vertical VFD Stainless Steel Constant Pressure Water Supply Pump System
