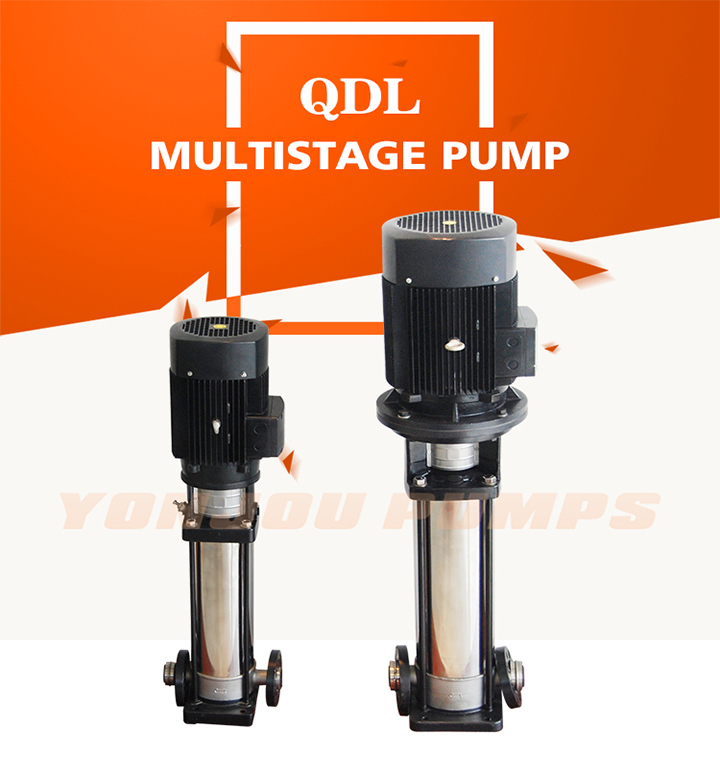

Summarize:
1. High pressure electric water pump has the advantages of energy conversation, small floor space, easy installation, stable performance, etc.

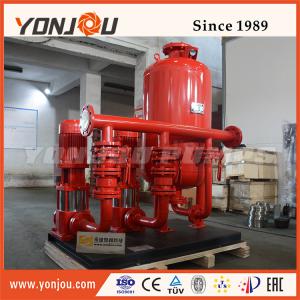

2. It gracefully satisfies the needs of water supply in high building, deep well mining or fire-fighting equipment, farm irrigation, etc.
3. It's an ideal pump for the delivery of cold or hot water, or fluid similar to water.
4. The high pressure water pump is with higher head (discharge pressure) than regular single stage one.
5. Widely used in energy industry, metallurgy, water processing, chemical industry, spinning industry, papermaking, restaurant, hotels, bathroom, etc.
Product details:
| Working Principle: | Centrifugal, Multi-stage |
| Main applications: | Water |
| Driver: | Electric motor |
| Power Specs: | 220/380/415V 3phase, 110/220/240v 1phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Vertical |
| Casing material: | stainless steel |
| Shaft seal type: | Mechanical seal, packing seal |
| Free passage: | 0.1 mm |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 150mm(6inch) |
| Flow rate range: | 1.4-194m3/h(6.2-853.6US.GPM) |
| Maximum head: | 200m(656ft) |
Performance Data:
| Model | Capcacity | Head | Power | Diameter |
| m 3 /h | m | KW | mm | |
| 25GDL2-12× 3 | 2 | 36 | 1.1 | 25 |
| 25GDL2-12× 4 | 2 | 48 | 1.1 | 25 |
| 25GDL2-12× 5 | 2 | 60 | 1.5 | 25 |
| 25GDL2-12× 6 | 2 | 72 | 1.5 | 25 |
| 25GDL2-12× 7 | 2 | 84 | 2.2 | 25 |
| 25GDL2-12× 8 | 2 | 96 | 2.2 | 25 |
| 25GDL2-12× 9 | 2 | 108 | 2.2 | 25 |
| 25GDL2-12× 10 | 2 | 120 | 3 | 25 |
| 25GDL2-12× 11 | 2 | 132 | 3 | 25 |
| 25GDL2-12× 12 | 2 | 144 | 3 | 25 |
| 40GDL6-12× 3 | 6 | 36 | 1.5 | 40 |
| 40GDL6-12× 4 | 6 | 48 | 2.2 | 40 |
| 40GDL6-12× 5 | 6 | 60 | 2.2 | 40 |
| 40GDL6-12× 6 | 6 | 72 | 3 | 40 |
| 40GDL6-12× 7 | 6 | 84 | 3 | 40 |
| 40GDL6-12× 8 | 6 | 96 | 4 | 40 |
| 40GDL6-12× 9 | 6 | 108 | 4 | 40 |
| 40GDL6-12× 10 | 6 | 120 | 4 | 40 |
| 40GDL6-12× 11 | 6 | 132 | 5.5 | 40 |
| 40GDL6-12× 12 | 6 | 144 | 5.5 | 40 |
| 50GDL12-15× 2 | 12 | 30 | 2.2 | 50 |
| 50GDL12-15× 3 | 12 | 45 | 3 | 50 |
| 50GDL12-15× 4 | 12 | 60 | 5 | 50 |
| 50GDL12-15× 5 | 12 | 75 | 5.4 | 50 |
| 50GDL12-15× 6 | 12 | 90 | 5.5 | 50 |
| 50GDL12-15× 7 | 12 | 105 | 7.5 | 50 |
| 50GDL12-15× 8 | 12 | 120 | 7.5 | 50 |
| 50GDL12-15× 9 | 12 | 135 | 11 | 50 |
| 50GDL12-15× 10 | 12 | 150 | 11 | 50 |
| 65GDL24-12× 2 | 24 | 24 | 3 | 65 |
| 65GDL24-12× 3 | 24 | 36 | 4 | 65 |
| 65GDL24-12× 4 | 24 | 48 | 5.5 | 65 |
| 65GDL24-12× 5 | 24 | 60 | 7.5 | 65 |
| 65GDL24-12× 6 | 24 | 72 | 7.5 | 65 |
| 65GDL24-12× 7 | 24 | 84 | 11 | 65 |
| 65GDL24-12× 8 | 24 | 96 | 11 | 65 |
| 65GDL24-12× 9 | 24 | 108 | 15 | 65 |
| 65GDL24-12× 10 | 24 | 120 | 15 | 65 |
| 80GDL54-14× 2 | 54 | 28 | 7.5 | 80 |
| 80GDL54-14× 3 | 54 | 40 | 11 | 80 |
| 80GDL54-14× 4 | 54 | 56 | 15 | 80 |
| 80GDL54-14× 5 | 54 | 70 | 18.5 | 80 |
| 80GDL54-14× 6 | 54 | 84 | 18.5 | 80 |
| 80GDL54-14× 7 | 54 | 98 | 22 | 80 |
| 100GDL72-16× 2 | 72 | 32 | 11 | 100 |
| 100GDL72-16× 3 | 72 | 48 | 15 | 100 |
| 100GDL72-16× 4 | 72 | 64 | 18.5 | 100 |
| 100GDL72-16× 5 | 72 | 80 | 22 | 100 |
| 100GDL72-16× 6 | 72 | 96 | 30 | 100 |
| 100GDL72-16× 7 | 72 | 112 | 30 | 100 |
Company Information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
