Stainless Steel Frame and Plate Filter Press

Introduction of the Stainless steel frame and plate filter press:Stainless steel plate frame filter press, the filter board, filter frame are all stainless steel SUS304 material, seal material is food grade white silicone rubber,Operate temperatur

Technical Feature

  • Shanghai, China
  • 100 Unit/Year
  • L/C, T/T, Western Union, Paypal
  • Belt Type
  • PE
  • Mechanical Pressure
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~500

PRIMARY PARAMETERS

Trademark
OEM
Transport Package
Plywood Case
Specification
CE, SGS, ISO9001
Origin
China

DETAIL DESCRIPTION

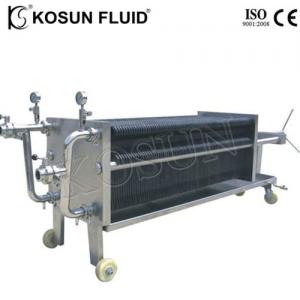

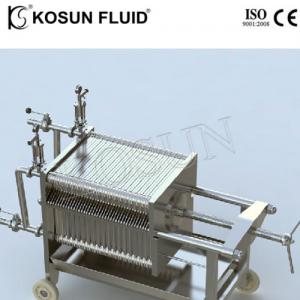

Introduction of the Stainless steel frame and plate filter press:

Stainless steel plate frame filter press, the filter board, filter frame are all stainless steel SUS304 material, seal material is food grade white silicone rubber,Operate temperature is ≤ 140 ºC.

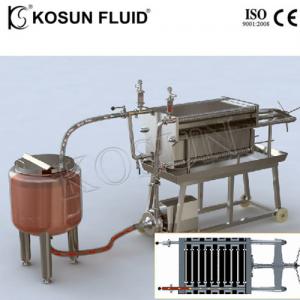

The surface of the plate and frame is smooth, the cleaning thoroughly does not leave the dead corner. The filter press can includes frame type stainless steel frame with feed sanitary pump type and thrust board.

Operate pressure :0-4.0 barg
Operate temperature :0-140 DegC

Advantages of the filter press :
  1. Plate filter press: flat between the plate and frame, suitable for clamped thick filter paperboard, such as supporting plate, pre filter plate, fine filter plate, bactericidal plate with thickness between 3-5mm, etc.
(2) the plate frame type diatomite filter, by widening the filter frame to 25-40mm, increases the space capacity of the filter frame, and then preforms the filter aid of diatom or activated carbon after holding the supporting plate between the plate and frame.
3)Stainless steel plate frame filter Press machine is suitable for many kinds of special filter plates (oil beer, wine fine filter, clarification plate, bacteriostasis board, support board, coarse filter board etc.) and filter with filter aids

Application ofStainless steel frame and plate filter press:

1.alcohol (fruit wine, health care wine, yellow rice wine, beer, white wine, etc.) 2.Pharmaceutical solution (traditional Chinese medicine extract and other 3.pharmaceutical filters, Drinks, soy sauce, vinegar, honey, syrup,
4.All kinds of oils (edible oils, industrial oils, Chemical products, etc.
Different effects of coarse filtration, fine filtration, microfiltration and bacteriostasis can be achieved by selecting filter materials with different regular precision.


Models of filter press :
ModelNumber of filter platesFilter Area m2Recommend Filter capacity m3/h waterOuter plate size mm
KS400NN-313143-4400x400
KS400NN-41415.54-6400x400
KS400NN-616186-8400x400
KS400NN-71719.58-10400x400
KS400NN-10110113.510-13400x400
KS600NN-41411410-13600x600
KS600NN-61612115-10600x600
KS600NN-1011013520-30600x600
