Application

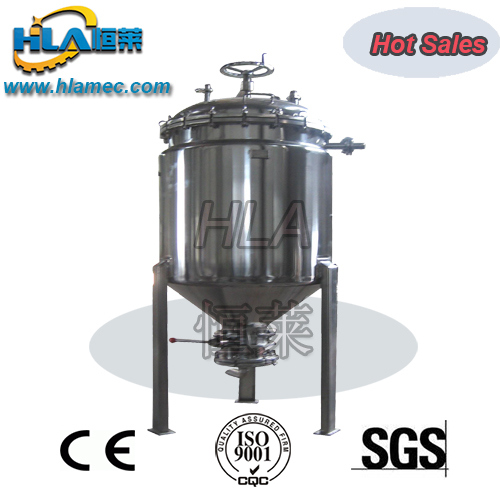

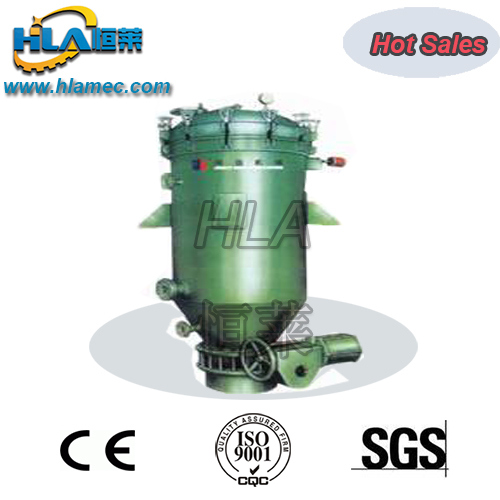

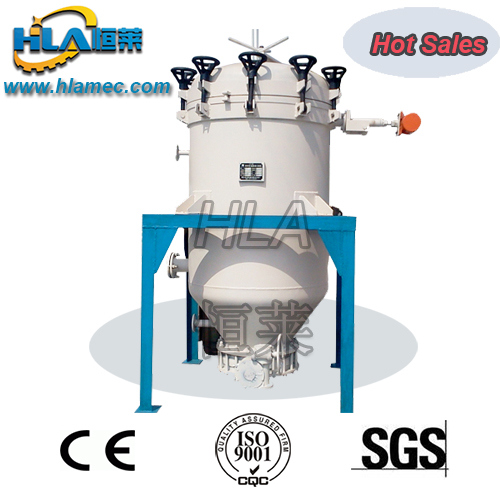

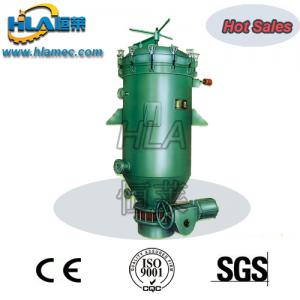

The horizontal plate Filter Press is used by several industries for a variety of applications. The main application of the filter press is to filter solids from liquids. The press is available in varying combinations of number of plates of 1-10mm dia. This model is offered with a suitable pressure pump and other accessories to suit related application.
Feature
1.Maximum cake stability assured
2.Can be used for numerous batch and continuous filtration processes
3.Any filter media can be used
4.Filter plates are easy to clean
5.High flow rates at low pressure drop
6.Flexibility in operation
7.Permits easy cake washing and drying
Technical Specifications
| Model | Unit | PHF05 | PHF010 | PHF015 | PHF020 | PHF025 | PHF030 | ||||
| capacity | Squ/M2 | 5 | 10 | 15 | 20 | 25 | 30 | ||||
| Working pressure | MPa | ≤0.4 (Special model can reach to 1MPa) | |||||||||
| Filtering Particles size | Micron | 50 (can be made as user's requirement) | |||||||||
| Particles Holding capacity | Kgs | 200 - 700 | |||||||||
| Cleanness | ≤NAS 10 Grade | ||||||||||
| Power supply (Electromagnetic valve ) | 380v,50Hz, 3 Ph (or customerized) | ||||||||||
| Temperature range | ºC | 10~500 | |||||||||
| Weight | Kgs | 700 | 1200 | 1500 | 1800 | 2200 | 2800 | ||||
| Dimension | L | mm | 2000 | 2200 | 2500 | 2900 | 3200 | 3500 | |||
| W | 900 | 950 | 1100 | 1200 | 1400 | 1500 | |||||
| H | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | |||||
