Use Spray Paint Drying Equipment

Car painting room (CE Marked spray booth)1. CE approved2. German Technology3. Professional ventilation system4. Spray booth professional manufacturer5. Factory price, energy saving6. High quality, best sell service, timely delivery7. We can meet at c

Technical Feature

  • Guangzhou, China
  • 60 Set/Sets Per Month
  • T/T
  • Hardware Spraying Equipment, Wood Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment
  • CE
  • ISO9001: 2000
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~7

PRIMARY PARAMETERS

Model NO.
BTD 7200
Usage
Car Spraying and Baking
Configuration Level
Economic Type Spray Booth
Popular in
Asia, Africa
Color
White
Diesel Burner
Italy Riello Diesel Burner G20(180, 000kcal/H)
Lighting System
Osram Lamp with Tempered Glass
Trademark
BTD
Transport Package
Export Professional Packages
Specification
Outside Size(mm)
Origin
China
HS Code
8419899090

DETAIL DESCRIPTION

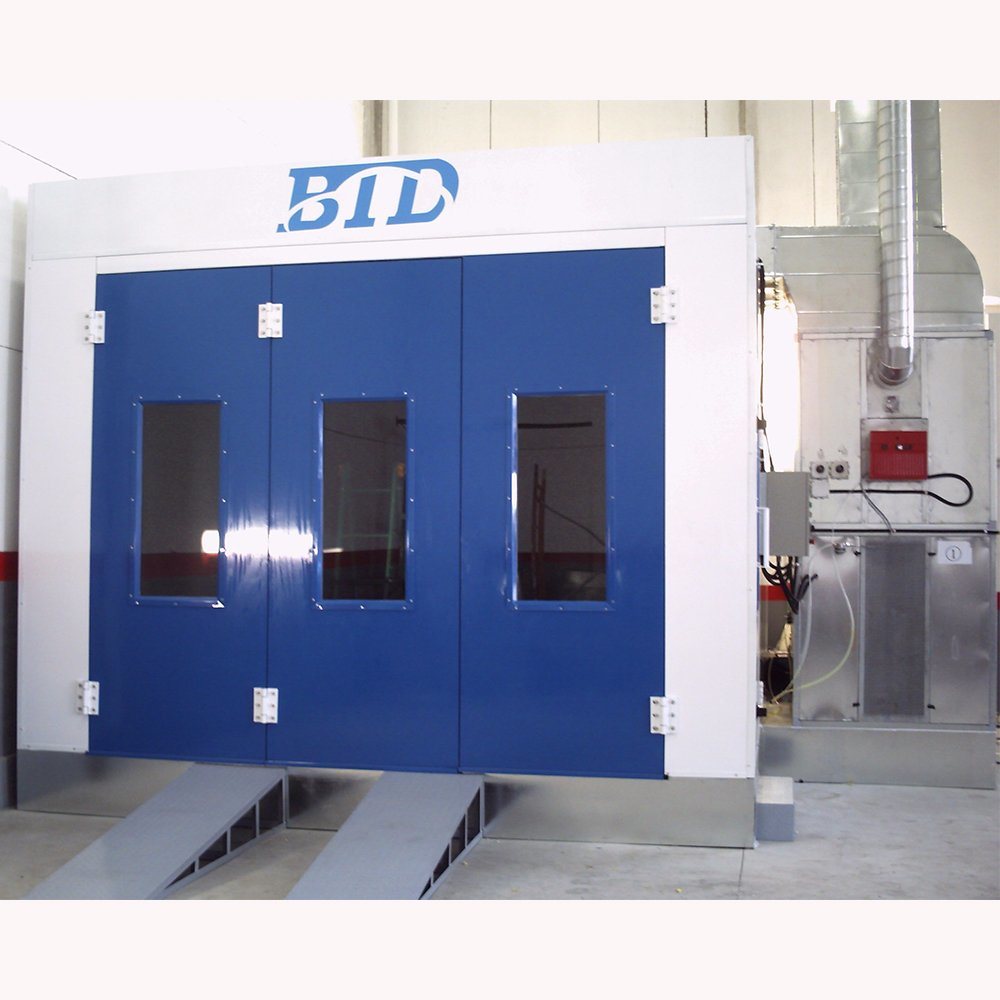

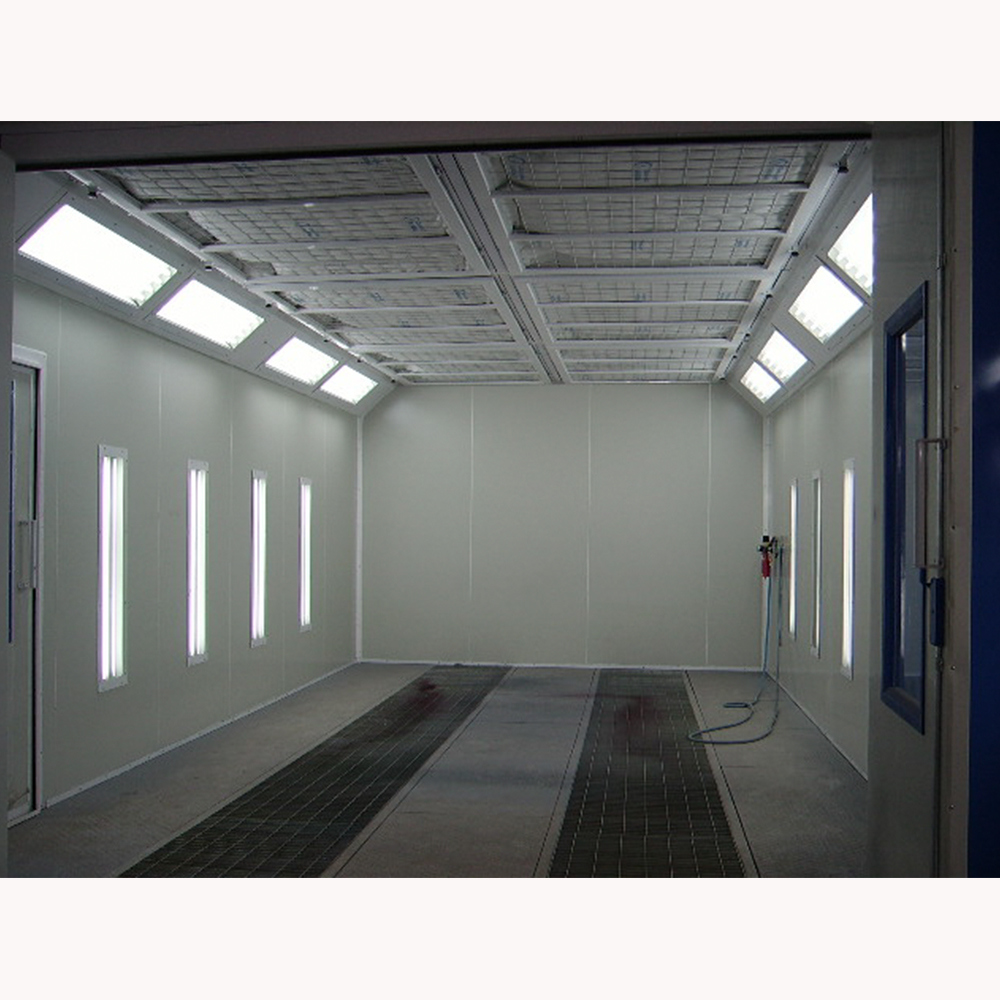

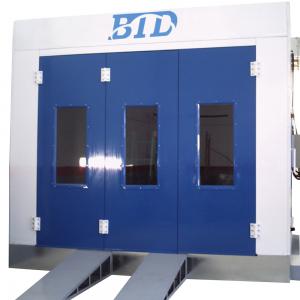

Car painting room (CE Marked spray booth)
1. CE approved
2. German Technology
3. Professional ventilation system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement

Model: BTD 7200
PARAMETER
Product NameSpray BoothBrandBTD
ModelBTD-7200Company NameGuangzhou BTD Mechanical And Electrical Equipment Co., Ltd
External Size7010x5570x3610mm
(276x220x143″)
Internal Size6900x4000x2800mm
(272x158x111″)
Wall Panel50mm EPSProduction Cycle45 days

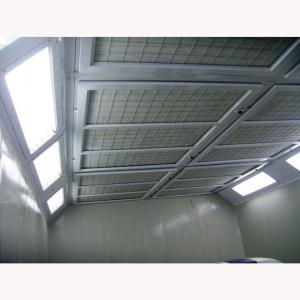

Ceiling Lighting8 units,each 4x36WBrightness>800Lux
Inlet Fan7.5Kw big impeller fanExhaust FanNo
Total Air Volume25000m³/hAir Speed Inside CabinLoaded:0.23-0.35m/s
Heat Exchanger Capacity160KWBurner ModelITA RIELLO G20 180,000kcal/H
VolumeGross weightNet weightPackage20GP40GP
12.5cbm2300Kg(2100lbs)2200kg(2000lbs)20pc1 set2 sets
Implementation Standards2006j42jCE, Machinery Directive
2006j95jCE, Low Voltage Directive
Directive EMC 2004j108jCE
94j09jCE ATEX Directive, according to standard EN13355

Use Spray Paint Drying Equipment
Use Spray Paint Drying Equipment
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray booth is getting more and more popular all over the world.

BTD target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.

BTD has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.

Use Spray Paint Drying Equipment
Use Spray Paint Drying Equipment
Use Spray Paint Drying Equipment

Use Spray Paint Drying Equipment
FQA:
Q1: Are you Manufacturer or Trading company?

A: We are a professional manufacturer with our own export department.

Q2: Where is your company ocated? How can I visit there?

A: Our company is located in Guangzhou. All clients, from home and abroad, are warmly welcomed to visit us.

Q3: How about the quality of the products?
A: With the advanced machines, strong and professional R&D team and material
Sources, our products are excellent in performance and craftsmanship.

Q4: What's the sort of heating types?
A: There are diesel, gas and electricity(infrared lamp) heating.

Q5: Does the BTD spray booth with the European design?
A: Our products are welcomed in Europe. All the spray booths are according to European standard with CE certificate.

Q6: What are range of the voltage and power for BTD spray booth when operating?
A: The standard voltage and power for our products is 220V 50Hz 1pH for lights (Residential voltage), 380V 50Hz 3pH for motors (Industrial voltage), we could modify the voltage to suitable for customer's local voltage.

Q7: Can we customize our product?

A: Absolutely yes, BTD has the professional team with 10 years of design experience. Customized material and standard are acceptable. We can provide different standards according to your market and favor.


Our Service:

We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.

If you wish to discuss any aspect of your project,

Please feel free to contact us.
