Thin Film Evaporator Short Path Distillation and Separation

Short path evaporators from laboratory to production scale in sizes ranging from 0.04 - to 80 m² and for operating temperatures up to 400 °C.Short path distillation is a special type of thin film distillation technology, at which even lower working

Technical Feature

  • Shanghai, China
  • 300pieces/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Lab
  • Customized
  • CE
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$35~68

PRIMARY PARAMETERS

Model NO.
HSPD5
Rotary Flask
5L
Application Industries
Bio-Chemical, Pharmaceutical,Chemical Industry
Operating Temp. Range
Rt~300c
Main Uses
Concentration, Refining, Separation
Film System
Self-Clean Roll Filming System
Temperature
Max
Vacuity
Min
Trademark
BETTER
Transport Package
Standard Solid Wooden Case for Export
Specification
5L
Origin
China
HS Code
8419409090

DETAIL DESCRIPTION

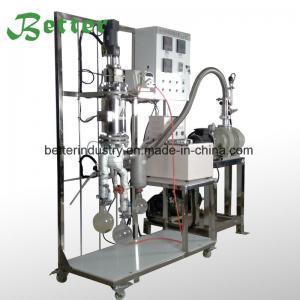

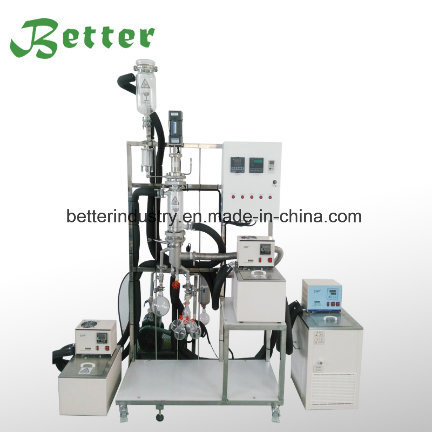

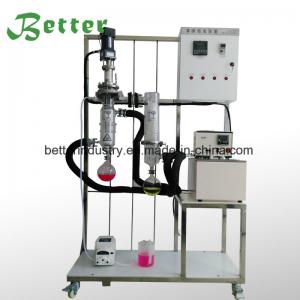

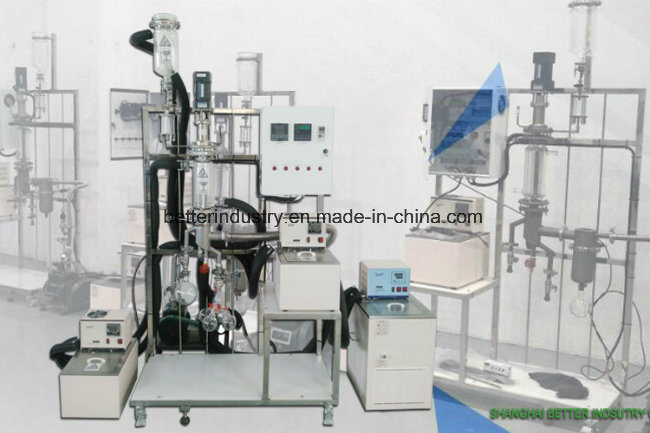

Thin Film Evaporator Short Path Distillation and Separation
Short path evaporators from laboratory to production scale in sizes ranging from 0.04 - to 80 m² and for operating temperatures up to 400 °C.

Short path distillation is a special type of thin film distillation technology, at which even lower working pressures and therefore even lower boiling temperatures can be achieved.
Design

Different from the traditional wiped film evaporator design, the condenser is located inside the short path evaporator body.

Operation

Feed liquid is admitted into still under high vacuum, immediately spread into a very thin film and forced quickly down the evaporation surface. Heated walls and high vacuum drive the more volatile components (distillate) to the external condenser as the less volatile components (residue) continue down the cylinder. The resulting fractions, thus separated, exit through individual discharge outlets. Depending on application, the desired product is either the distillate or the residue fraction. Small amounts of condensable low MW compounds collect in cold trap upstream of vacuum system. For high solvent loads, an optional external condenser may be installed immediately downstream of the still.

Particular features

Continuous distillation process.
Very low operating pressures up to 0.1Pa (100Pa=1mba). (The considerably lower pressure in the short path evaporator is obtained by the short distance for the vapours on their way from the evaporator surface to the condenser. )
The very low operating pressures ensure very low distillation temperatures and therefore a very gentle distillation is possible.
Short residence time. (Thanks to the short residence time, the low evaporation temperature and the immediate cooling of the concentrate, thermal stress and decomposition of the product can be minimized.)
High evaporation rates.

Fields of application

For the thermal separation of high molecular and high-boiling products.
For heat sensitive materials.
Thin Film Evaporator Short Path Distillation and Separation

ModelHSPD-5 HSPD-10  HSPD-20   HSPD-50  HSPD-100  HSPD-200
Rotary Flask (L)5L10L20L50L100L200L
Evaporator
heat
transfer
area(m2)
0.058  0.120.24    0.5  1.0  2.0
Heating
method
Ceramic electric heating units, MAX TEMP:260ºC
Electric Oil heater ,MAX TEMP:200ºC
Vacuum
pressure
0.1-2000Pa,
According to the actual vacuum system configuration.
Condensati
on transfer
area
(m2)
0.086  0.20  0.42  1.1  2  4
Theoretical
evaporation
(L/H)
0.8~
1.5
5~6  10~12  25~30  50~60100~120
Occupying
space
(L*W*H)
(m)
1.1*0.5*1.71.1*0.8*1.
7
1.5*1.2*2.
5
2.0*1.5*3.
0
2.0*1.5*3.5 2.5*2.0*4.0

Package&Shipping
A. Sufficient inner protection with differen materials, including bubble bag, foam board and others.
B. Qualified wooden packge or carton for different products or as customer require
C. Strict packing process to ensure the safety and completeness of the goods
