We can design and supply many different kinds of evaporators to achieve customer's special processing requirements.

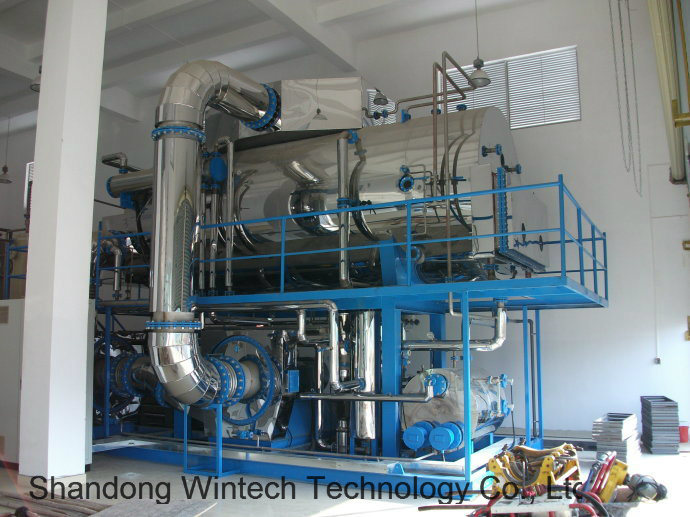

The sewage TDS treatment evaporator is a natural circulation device operated under vacuum conditions.This evaporator includes three main series and another Q-type forced circulation evaporator. It can condense continuously under vacuum conditions of low temperature to insure quality
It is characterized by high efficiency of heat conduction, high evaporation intensity,low power consumption, etc.
Technical Parameters:
| No. | Item | Unit | WBZ-2000 | WBZ-1000 | WBZ-500 |
| 1 | Evaporation capacity | kgs/h | 2000-2200 | 1000-1200 | 500-600 |
| 2 | Tank vacuum degree | pa | -90000 | -90000 | -90000 |
| 3 | Heating area | m3 | 22 | 11 | 5.4 |
| 4 | Steam pressure | Mpa | 0.05-0.2 | 0.05-0.2 | 0.05-0.2 |
| 5 | Steam consumption | kgs/h | 2000-2200 | 1100-1200 | 550-600 |
| 6 | Cooling water pressure | Mpa | 0.25-0.3 | 0.25-0.3 | 0.25-0.3 |
| 7 | Heater diameter | mm | Φ600 | Φ400 | Φ300 |
| 8 | Evaporation tank diameter | mm | Φ1400 | Φ1000 | Φ800 |
| 9 | Liquid trap diameter | mm | Φ650 | Φ500 | Φ400 |
| 10 | Condenser diameter | mm | / | / | Φ400 |
| 11 | Heater weight | kgs | 980 | 505 | 300 |
| 12 | Evaporation tank weight | kgs | 1100 | 580 | 320 |
| 13 | Liquid trap weight | kgs | / | 106 | 85 |
| 14 | Condenser weight | kgs | / | / | 885 |
Application field: used in chemical industry, environmental protection industry, fermentation industry, pharmaceutical industry, food industry, paper industry, sugar industry, the beverage industry
Pre-sales Service:
Customization:
We can specially customize products if you tell us any special requests,such as spare parts, cylindrical tank, material, output, pump...
After-sales Service:
1. One-year free warranty and life-long maintenance service
2. Equipment operation and maintenance vedio guide for the customers
3. Help to do worker training
4. On-line support every day
FAQ:
1.Q:Are you a factory or trading company?
A:We are one of the largest evaporator manufactory in China
2.Q:Can we visit your factory before placing orders?
A:Sure,warmly welcome to our factory!
3.Q:What's the info needed if I send one inquiry?
A:Pls tell us the working conditions,mediums,temperature,pressure, equipment's material,size,quantity,and other special requests
4.Q:What is the MOQ?
A:We accept loose quantity order,any trial orders or mixed order
5.Q:How does your factory do quality control?
A:Quality is priority,we make relevant strict testing before delivery
Our factory has already obtained ISO9001 quality and ISO 14001
Environmental management system certificate
