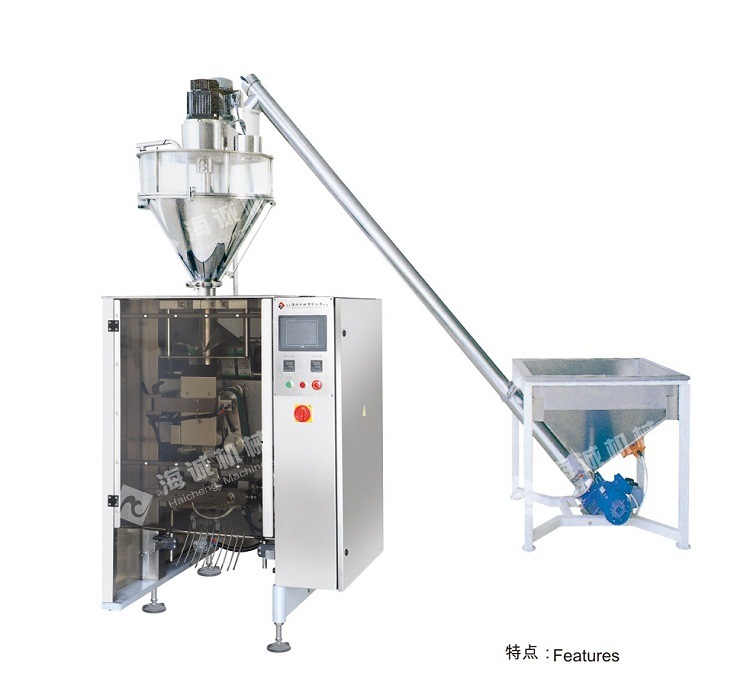

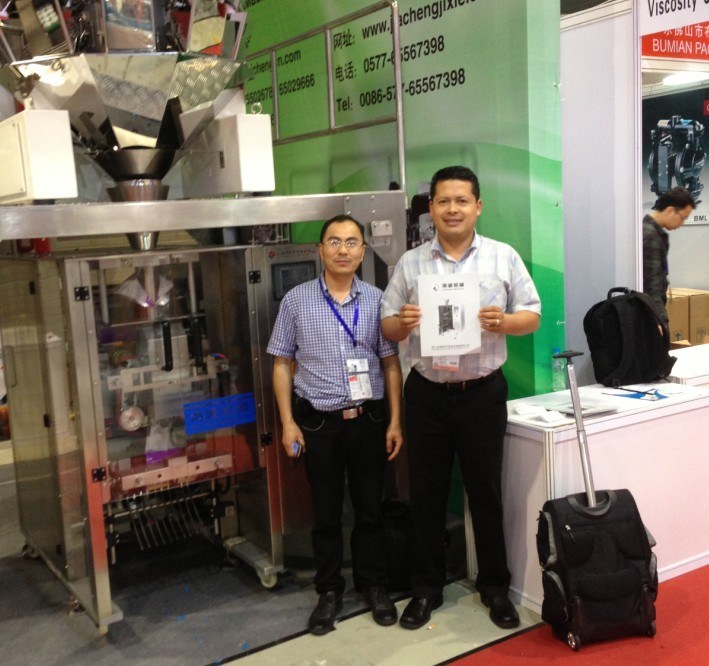

Vertical Spice Packaging Machine
DXD-520F
Use
Suitable for automatic packaging of all kinds of spices, milk powder, coffee powder, fine sugar, milk tea powder, fruity powder, food additive, powdered glucose, seasoning, pesticide, health-care tea powder, washing powder etc.
Features
1. Adopt intelligent temperature controller and ensure the nice and smooth sealing
2. Imported PLC control system, servo film feeding system, interface touch screen can get mutiple functions such as counting, date printing, nitrogen charging(gas discharge), conveying etc.
3. Combined with metering equipment, full automatic packaging process including feeding, metering, bag filling, date printing and auto counting can be completed.
4. The setting and modification of packaging parameter can be done via the touch screen, more, it can save 10 different types of parameters.
5. Different Type of bag making: Can make pillow bag, punched hanging bag, mutliplecontinuous bags etc. According to customer's requests.
Main Technical Parameters:
DXD-520F
Use
Suitable for automatic packaging of all kinds of spices, milk powder, coffee powder, fine sugar, milk tea powder, fruity powder, food additive, powdered glucose, seasoning, pesticide, health-care tea powder, washing powder etc.
Features
1. Adopt intelligent temperature controller and ensure the nice and smooth sealing
2. Imported PLC control system, servo film feeding system, interface touch screen can get mutiple functions such as counting, date printing, nitrogen charging(gas discharge), conveying etc.
3. Combined with metering equipment, full automatic packaging process including feeding, metering, bag filling, date printing and auto counting can be completed.
4. The setting and modification of packaging parameter can be done via the touch screen, more, it can save 10 different types of parameters.
5. Different Type of bag making: Can make pillow bag, punched hanging bag, mutliplecontinuous bags etc. According to customer's requests.
Main Technical Parameters:
| Packing speed | 15-70bags/min |
| Bag-making size | (L)80-350mm (W)80-250mm |
| Filling range | 15-2000g |
| Film width | 180-520mm |
| Packing materials | OPP/CPP PET/PE etc |
| Film thickness | 0.04-0.08mm |
| Air consumption | 0.36m3/min 0.6MPa |
| Power supply | AC220V 50/60Hz 3.5kw |
| Machine dimensions | (L)1750× (W)1050× (H)2650mm |
| Machine weight | 680kg |
