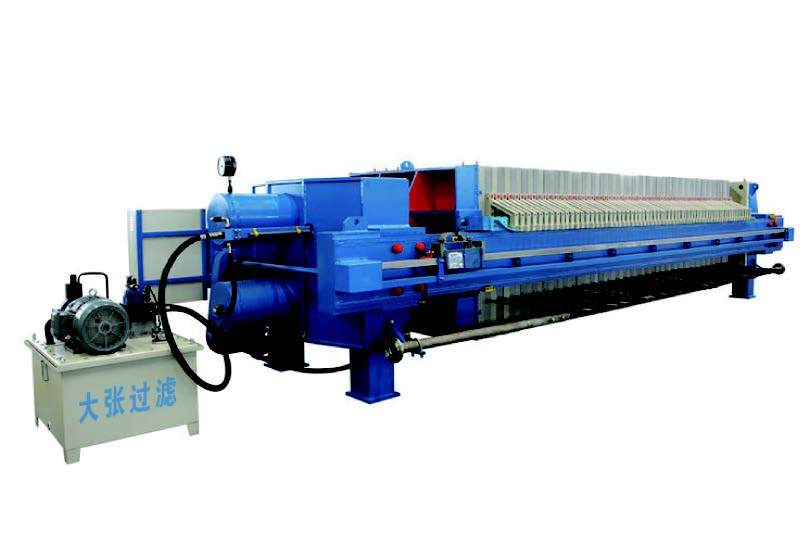

Dz Water Treatment Chamber Membrane Filter Press Machine

DaZhang Membrane Filter Press adopts international advanced TPE membrane technology, so thant ensure stable performance and long-life span, and widely used for various industries. Cakes from membrane filter press can be secondarily squeezed under ma

Technical Feature

  • Shanghai, China
  • 10000 Sets/Year
  • L/C, T/T, Western Union
  • Automatic Chamber Filter Press
  • 3pH/380V/50Hz, 3pH/415V/50Hz, 3pH/440V/50Hz, etc
  • Ce, ISO9001
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~50

PRIMARY PARAMETERS

Model NO.
XMG70/1000
Filter Volume
1109L
Weight
5263 Kg
Plate Material
PP
Filter Area
70m2
Trademark
Dazhang
Transport Package
Seaworthy Package
Specification
5130*1500*1400mm
Origin
Henan Province of China
HS Code
8421291090

DETAIL DESCRIPTION

Dz Water Treatment Chamber Membrane Filter Press Machine
DaZhang Membrane Filter Press adopts international advanced TPE membrane technology, so thant ensure stable performance and long-life span, and widely used for various industries.

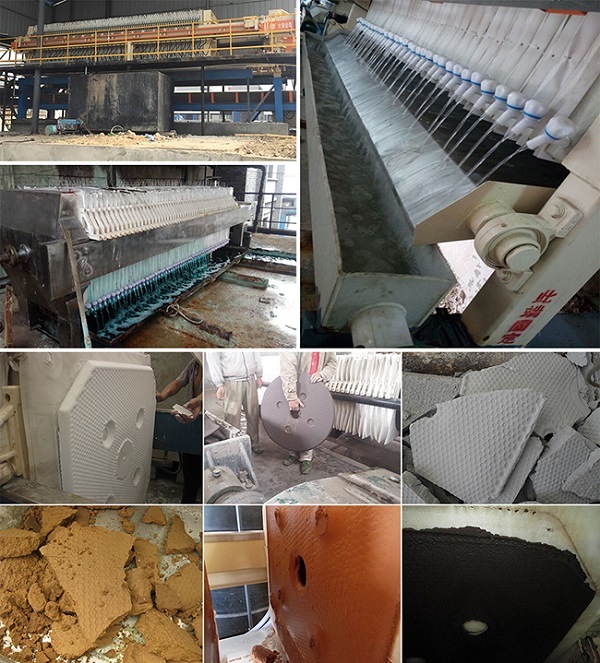

Cakes from membrane filter press can be secondarily squeezed under max 1.6Mpa by water to realize the lowest cake residual moisture. In some wastewater treatment industries, the final cake can be used for landfill or burning directly.
The membrane filter press can realize fully automatic operation with flexible devices, such as: belt conveyour, drip tray, cloth washing system, etc.

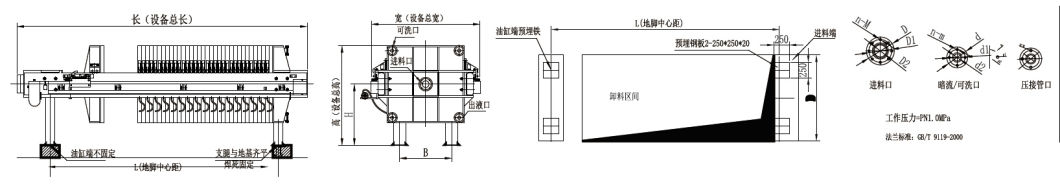

Dz Water Treatment Chamber Membrane Filter Press Machine
Features of membrane filter press machine:
1, Automatic functions includes automatic compress the plates, automatic pressure keeping, automatic plate shifting etc.
2, The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.
3, Filter plates is made of pure PP, do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.
4, Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.

Technical Data:
ModelFilter area
(M2)
Plate Size (MM)Filter
Chamber Volume
(L)
Plate NO.
(pcs)
Power
(KW)
Filtration Pressure (Mpa)Weight
(Kg)
Dimension
L*W*H(MM)
XMG50/1000501000*1000776274.0>=0.843524270*1500*1400
XMG60/1000609433344804770*1500*1400
XMG70/10007011093952635130*1500*1400
XMG80/10008012754557195560*1500*1400
XMG100/100010016085765556410*1500*1400
XMG120/100012019416974667260*1500*1400

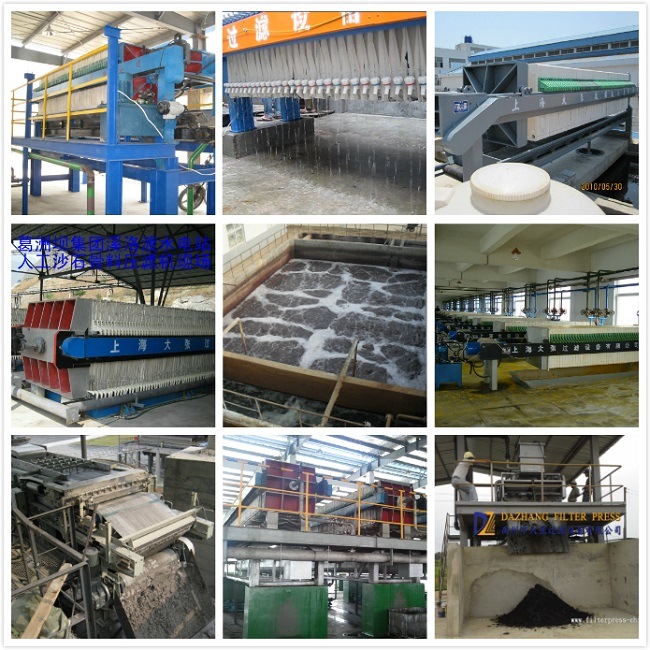

Applicable field
1) Chemical Industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
2)Food Industry
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and so on
3)Sewage Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
4) Pharmacy Industry
Phytic acid, calcium, chinese traditional medicine, saccharification, organophosphate etc
5) Pottery Clay Industry
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces
6) Metallurgy, Coal Industry
Gold, silver, copper, zinc ore mineral powder, etc
7) Other solid liquid separation industries.
Dz Water Treatment Chamber Membrane Filter Press Machine

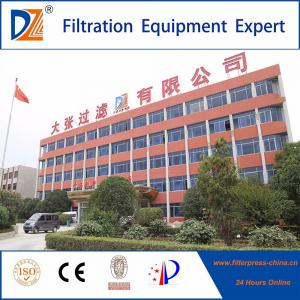

Company Information:
Henan Dazhang Filter Equipment Co.,Ltd founded in 2007, occupies a total area of 120,000 square meters, and employs 1,000 staff members, including 62 senior engineers and technicians and 128 mid-level engineers and technicians. Dazhang Group is a joint-stock enterprise that produces filtration equipment such as filter press and filter, forming R&D, production and sale into an integral system. Over the past decade, adhering to the corporate tenet of "Profession, Innovation, Customer Supreme Quality First ", Dazhang Group has become one of the largest solid-liquid separation manufacturers in China with the most complete specifications and the best quality after high-speed development.
DaZhang produce dozens of models (model 320 to 2000) of filter presses with more than 100 specifications. Filtration area of these filter presses ranges from 1M2 to 1,000M2 and filtration pressure ranges from 0.4MPa to 1.6MPa (and the filtration pressure of circular filter press can be 2.0Mpa).

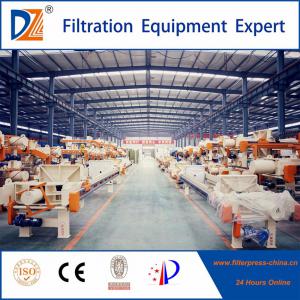

DaZhang has excellent processing and testing equipment. Our major production equipment includes large CNC machining center, mold processing center, professional filter plate CNC processing equipment, large filter plate 4000T press, 1000T press, 500T press, 200T press, vertical lathe, large double housing planer and full-automatic welding equipment and so on.
"Devoted, Elaborate, Rigorous, Harmonious". Customers are our pilots, service is our heart. What customers demand is what we are trying to create, and what makes customers satisfied is what we are pursuing all the time. In many years, staffs in Dazhang continuously create, overstep ourselves and work hard to provide the customers with the high-quality products, creating the brand with product quality and promoting the brand with services. Honor creates success, innovation creates prosperity. On the basis of technique innovation, guided by the enterprise culture and purpose to serve society, uniting as one, staffs in Dazhang are not afraid of hardships to make dedication to top-grade brand and making great efforts to do the biggest contribution to China national industry with all strength.
Quality is our culture and DaZhang will be your best friend forever.
Dz Water Treatment Chamber Membrane Filter Press Machine
Technical Advantage:
1. DaZhang Filter Equipment is the biggest factory in north-central of China, and we have the biggest injection molding machine with 4000 tons.
2. The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding.
3. DaZhang self-developed flter press with the biggest filter area of 1000M2 goes well in Vietnam.
4. The main beam of DaZhang filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology.
5. The chain cover which is indenpendently developed by DaZhang has the characteristic of high hardness and anti-corrosion.
6. All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO exoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cose, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.
Dz Water Treatment Chamber Membrane Filter Press Machine
FAQ:
Q: Are you filter press manufacturer?
A: Yes, we are the company which is the joint of trade and industry, and we cal provide sample test, equipment manufacture, after-sale service, etc.

Q: Which country have your products been exported?
A: Many countries around the world, such as Australia, EU, America and so on. And our company has agencies in Vietnam.

Q: Can your company help the customers design the project in mining processing?
A: Yes, our professional team can design perfect projects for our customers.

Q: What kind of filter press can you produce?
A: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press,vacuum belt filter, round filter press, cast iron filter press, stainless steel filter machine, filter plate and filter cloth etc.

Q: What's your MOQ?
A: We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.

Q: What is the payment terms?
A: TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.

Q: Do you accept OEM?
A: Yes, we can manufacture according to your requirement.

Q: What is the machine warranty?
A: All the machines from my factory have 12 months warranty.

Q: Is on site installation & commissioning available?
A: Yes.

Q: Can I visit your factory?
A: Sure, of course, welcome to visit our factory at any time!
