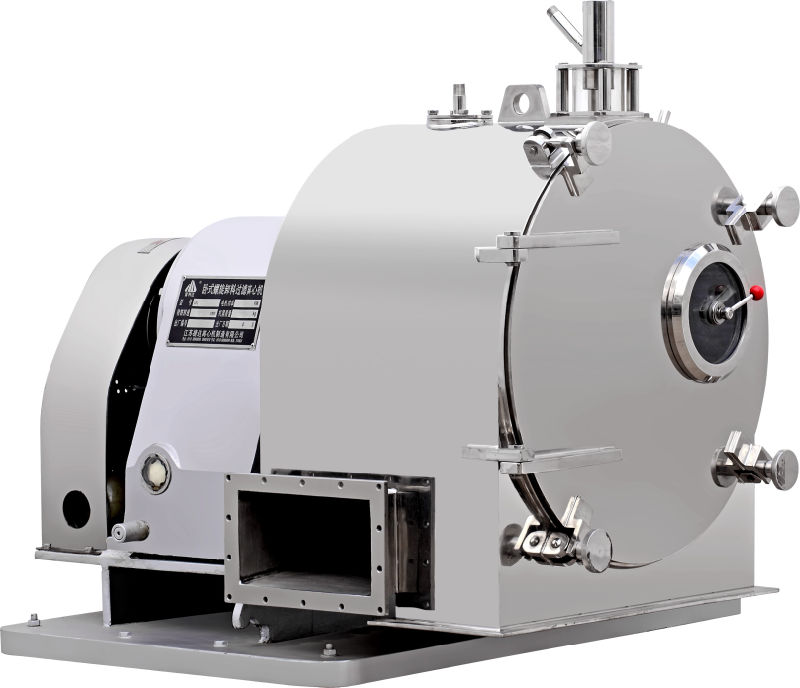

LWL 350 HORIZONTAL SCREW DISCHARGE FILTERING CENTRIFUGE
PRODUCT FEATURES AND USES
The LWL series centrifuge is a filtering centrifuge with horizontal screw discharge. With stable running, good washing effect, high handling capacity, and high economic efficiency, the machine can carry out continuous feeding, washing, dehydrating and discharging of suspensions when running at full speed. It is a piece of efficient separation equipment for solid-liquid separation. The machine is suitable for solid-liquid separation of suspensions containing 10%-80% solid particles (linear or crystalline) with granularity of 0.13-5mm (better effect for 0.2-2mm) such as citric acid, gulonic acid, salt, fruit juice, ammonium sulfate, urea, etc. in chemical industry, pharmacy, food, metallurgy, mining, etc. Designs of the machine comply with the GMP standard.
WORK PRINCIPLE
Continuous operation with the highest handling capacity
Wide application with various types of bowls and spiral rollers
Reasonable power configuration with low energy consumption
Parts that contact materials are made of austenitic stainless steel.
Imported bearings, seals, and independent circulating oil lubrication system are adopted.
The closed housing can protects the operator and site environment.
Because of its small volume and convenient installation, there is no need to make any complex foundation.
Safe and reliable running. The V type unloading and overload protective devices are adopted.

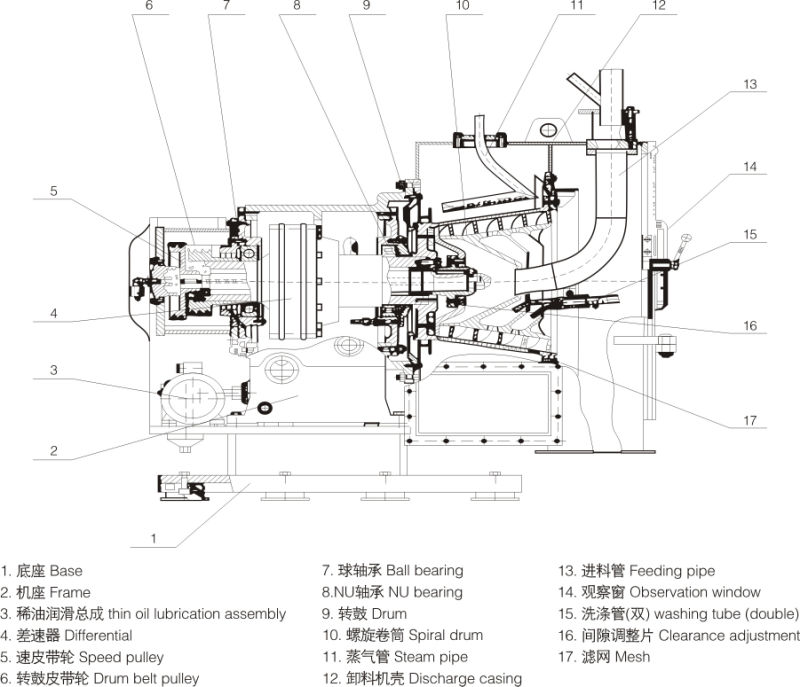

1. Base
2. Frame
3. thin oil lubrication assembly
4. Differential
5. Speed pulley
6. Drum belt pulley
7. Ball bearing
8. NU bearing
9. Drum
10. Spiral drum
11. Steam pipe
12. Discharge casing
13. Feeding pipe
14. Observation window
15. washing tube (double)
16. Clearance adjustment
17. Mesh
