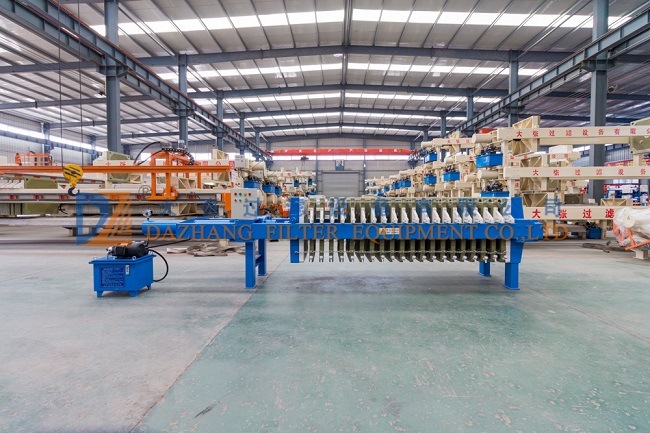

800Series Once open PP Membrane filter press
Automatic chamber/recessed filter press use micro computer processer, PLC and touch screen to control
every part's actions, such as: cylinder, plate shifter, cloth washing, etc, and remote control ports are left.
High efficiency filter press expended the length of cylinder and can discharge several cakes every time.
The advantages: stable performance, high efficienccy and lower running cost.
Spare parts of Filter Press

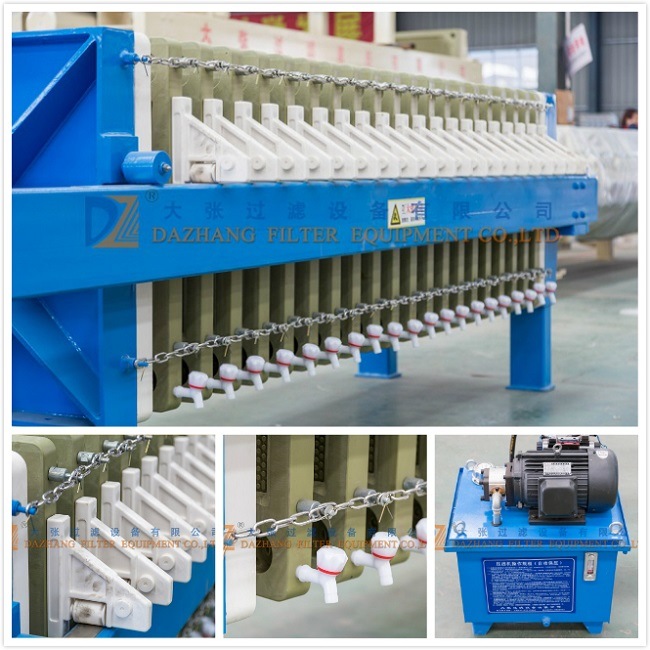

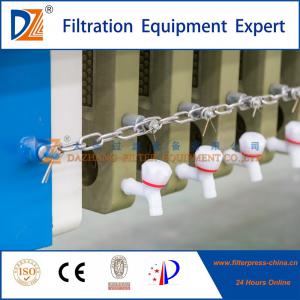

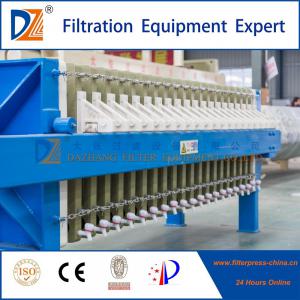

Once open filter press uses longer cylinder and beams. The plates are connected by stainless steel chains.
While discharging, all plates will be pulled open to discharge all cakes at one time.
Companying with vibration device, it can discharge cakes perfectly.
Advantages: High efficiency, Labour saving
Disadvantages: The plates should not be much, normally no more than 30 pcs.
Application of Dazhang filter press
Dazhang filter press widely applicable to coal washing, inorganic salt, mining, alcohol, petroleum, chemical, dyestuff, metallurgy, medicine, foodstuff, paper making and sewage treatment industries.
Technical Data
Company overview
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment.
We are also good at supplying our customers with comprehensive filtration solutions. Our company
nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Our Workshop
Packaging&Transportation
Working Site
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
Automatic chamber/recessed filter press use micro computer processer, PLC and touch screen to control
every part's actions, such as: cylinder, plate shifter, cloth washing, etc, and remote control ports are left.
High efficiency filter press expended the length of cylinder and can discharge several cakes every time.
The advantages: stable performance, high efficienccy and lower running cost.
Spare parts of Filter Press
Once open filter press uses longer cylinder and beams. The plates are connected by stainless steel chains.
While discharging, all plates will be pulled open to discharge all cakes at one time.
Companying with vibration device, it can discharge cakes perfectly.
Advantages: High efficiency, Labour saving
Disadvantages: The plates should not be much, normally no more than 30 pcs.
Application of Dazhang filter press
Dazhang filter press widely applicable to coal washing, inorganic salt, mining, alcohol, petroleum, chemical, dyestuff, metallurgy, medicine, foodstuff, paper making and sewage treatment industries.
Technical Data
| Model | Filter Plate(m2) | Plate size(mm) | Cake thickness(mm) | chamber volume(L) | Plate NO.(pcs) | Filtration pressure(MPa) | Motor power(Kw) | Weight(Kg) |
| XMY6/630-30UK | 6 | 700X700 | 30 | 95 | 7 | 0.6 | 2.2 | 1450 |
| XMY8/630-30UK | 8 | 119 | 9 | 1500 | ||||
| XMY10/630-30UK | 10 | 154 | 12 | 1610 | ||||
| XMY10/870-30UK | 10 | 870X870 | 154 | 7 | 0.6 | 2.2 | 1940 | |
| XMY20/870-30UK | 20 | 307 | 15 | 2230 | ||||
| XMY18/1000-30UK | 18 | 1000X1000 | 270 | 10 | 0.6 | 4 | 1850 | |
| XMY35/1000-30UK | 35 | 525 | 20 | 2540 |
Company overview
Henan Dazhang Filter Equipment Co., Ltd. is a professional filter press manufactures. It has three subsidiary corporations in Shanghai and Yuzhou. Now Henan Dazhang is the biggest filter press base in the center of China. We are specialized in designing,producing and selling filter presses and other related equipment.
We are also good at supplying our customers with comprehensive filtration solutions. Our company
nocovers an area of 30000 square meters,with advanced equipment and strict QC procedures.
Our Workshop
Packaging&Transportation
Working Site
Our product line:
Automatic Membrane Filter Presses,
Automatic Chamber/Racessed Filter Presses,
Hydraulic/Mechanical/Manual Filter Presses,
Special Filter Presses,
Filter Plates(including CGR Gasketed Filte Plates),
Belt Filter Presses,
Bag Filters
In order to meet different filtration needs of customers, we have been constantly developing and improving our prduct technology, quality, process automation and after-sales services. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
