PTFE Membrane Cartridge Filters Used in Industrial Dust Collectors

PTFE membrane cartridge filters used in industrial dust collectorsSPECIFICATIONS NumberDescription1Marking2Gasket3Inner liner4Bottom end cap with or without hole5Media pack6 Top end cap7Inner beading 8With or without outer liner DimensionsModelOD

Technical Feature

  • Shanghai, China
  • 10000PCS/Month
  • L/C, T/T
  • Polyester
  • Synthetic Fiber
  • Non-Woven Polyester Fiber
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
THN-LT
Filtration Grade
HEPA Filter
Filter Bag Sectional Shape
Round Bag
Filter Bag Environment
Temperature
Cartridge Installation
Flange Mounting
Item No.
PTFE Membrane Cartridge Filters
Shape
Conical/Cylindrical,Cylindrical/Cylindrical
Gasket
Galvanized Steel
Trademark
Thenow
Transport Package
Standard Export Carton
Specification
ISO9001; CE
Origin
Shanghai, China
HS Code
84219990

DETAIL DESCRIPTION

PTFE membrane cartridge filters used in industrial dust collectors
PTFE Membrane Cartridge Filters Used in Industrial Dust Collectors

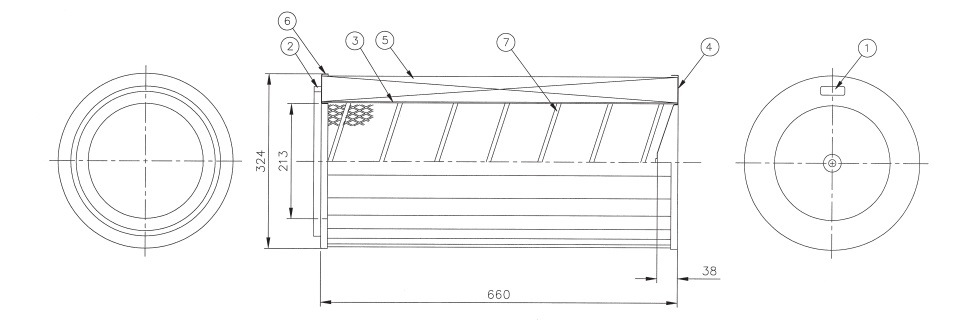

SPECIFICATIONS
NumberDescription
1Marking
2Gasket
3Inner liner
4Bottom end cap with or without hole
5Media pack
6 Top end cap
7Inner beading
8With or without outer liner

Dimensions
ModelOD (mm)H(mm)ID(mm)Bolt hole(mm)
TN10792220201559929.5
TN11211821830847029517.5
TN11212022330851819623
TN1127261132466021314
TN11272921432475021314
TN1127301032476421315
TN11382621435266024016
TN11382822235271124022
TN11383621435291424014
TN11402822235671124722
TN11403910356991243/
TN11462422337362226323
TN11463021437376226214
TN11472422337461026222
TN11502422238362225423
TN11601110406292244/
TN11601110406292245/
TN11601110406292291/
TN11601210406305292/
TN11602821440671829114
TN11603421440687629114
TN11603021440876229114
TN11603421440886429214
TN11662010422508269/
TN11752614445660356/
TN11752610447660311/
TN11762610447660356/
TN11762421444861031114
TN11872010476508356/
TN11872510476635356/
TN11921010489263327/
TN11921310489351327/
TN12202410559629395/
TN12222510565635448/

Filter Media
  • Cellulose polyester blend
  • 100% cellulose
  • 100% polyester

Treatment
  • Nano
  • Conductive
  • Flame Retardant
  • ePTFE Membrane
  • PTFE coating

Mesh
  • Plastic inner mesh
  • Diamond metal mesh
  • Expanded helix metal mesh
  • Punched screen deck

End Caps
  • Galvanized steel
  • Stainless steel
  • Powder coated
  • Plastic ABS

PTFE Membrane Cartridge Filters Used in Industrial Dust CollectorsPTFE Membrane Cartridge Filters Used in Industrial Dust Collectors
