Laboratory Underground Well Water Ozone Filtration System
Product Description:
Water treatment ozone generator / ozone water treatment plant / ozone sterilizer machine
Features:
1. Technology corona discharge high-quality quartz ozone cell
2. Adjustable ozone output 0-100%
3. Inner temperature controller to prevent heat generating
4. Ozone generated tube cooling way: water-cooling system
5. Special design to avoid water return
6. 120mins timer controller or continuous running
7. External / Inner air compressor
8. Inner refrigerant dryer
9. Stainless steel 304 case
10. Inner PSA oxygen generator unit
11. CE approved
12. Lifespan>= 20, 000 hour
Application:
1. Medical treatment industry: disinfect sickroom, operating room, medical treatment equipment,aseptic room, etc.
2. Laboratory: industrial oxidation of flavor and pharmaceutical intermediate,small water treatment
3. Beverage industry: disinfect production water supply for Bottle water -pure water,
mineral water and any kinds of beverage, etc.
4. Fruits and vegetables processing industry: keep fruits and vegetables fresh and Cold storage;
disinfect production water supply for fruits and vegetables processing.
5. Sea food factory : Remove smell of sea food factory and kill bacteria ,disinfect production water supply.
6. Slaughtering : Remove smell of slaughtering and kill bacteria, disinfect production water supply.
7. Poultry factory : Remove smell of poultry factory and kill bacteria ,disinfect water for poultry feeding.
8. Ozone use for surface sanitation
9. Swimming pool and SPA water sterilization and disinfection
10. Ozone laundry system for Washing machine
11.Aquaculture and aquarium water sterilization
12.Waste/sewerage water treatment (Agriculture wastewater treatment)
13.Decolor for textile,Jeans bleaching
1. Normally, 3-5g/h ozone for 1T/h water, using oxygen source ozone generator. For example: if the water flow rate of the RO system is 10T/h, a 30-50g/h oxygen source ozone generator is suitable for it.
2. It still needs some accessories. The ozone-water mixing device is venturi, pressure pump is used to increase the negative pressure in venturi, reaction tank is used to store the after mixing ozone-water for a better mxing.
3. For small RO system, you can also use our YT-S series all-in-one ozone water machines. (all accessaries are included)
4. The ozone machine should be installed behide the RO system.
Specification:
Model No | YT-017 | |
Ozone output(g/hr) | 50g/hr | 60g/hr |
Ozone concentration(mg/l) | 80-120mg/l | 80-120mg/l |
Voltage(V) | 220-110V/50-60HZ | 220-110V/50-60HZ |
Power(W) | 1700W | 1750W |
Gas flow rate | 140L/min | 160L/min |
Size(cm) | 50*40*124cm | 50*40*124cm |
Source | Dry clean air | Dry clean air |
Cooling way | water cooling+air cooling | water cooling+air cooling |
Weight(kg) | 55kg | 56kg |
Informations of ozone generator swimming water treatment for your reference:
a 10-20g/h oxygen source ozone generator is suitable for it.
is used to increase the water flow rate in venturi, reaction tank is used to store
the after mixing ozone-water for a better mxing.
(all accessaries are included)
generating ozone water for appliance desinfection etc.

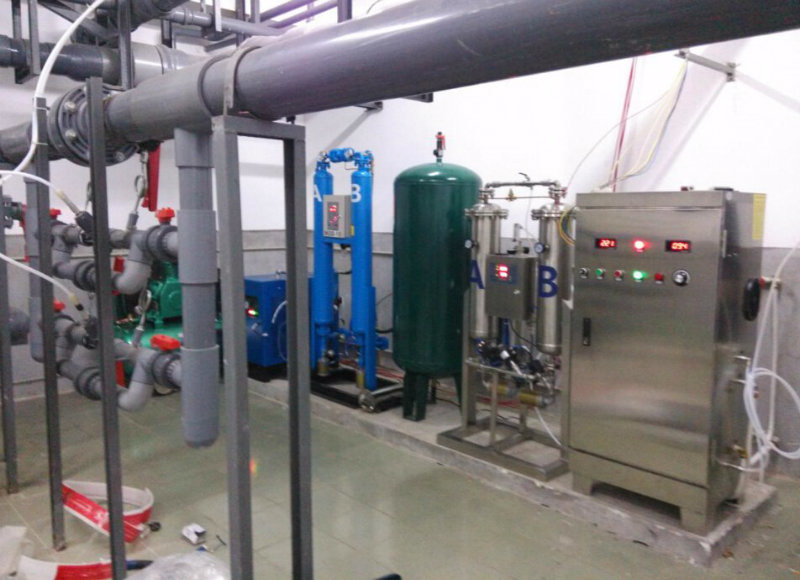

Ozone generator swimming pool water treatment Installation site:
Informations of ozone wastewater treatment for your reference:
1. Normally, 3-5g/h ozone for 1 cubic meter water/hour, using oxygen source ozone generator.
2. If for small amount of wastewater, such as 1-2m3/day. It is better to use the aeration stone or earation disc. Put it directly into the bottom of the wastewater tank or wastewater pool.
3. If for large amount of wastewater, the best way is using venturi to inject the water directly into the bottom of the wastewater pool. We should install an pressure pump before the venturi.
4. Actually, as waste water treatment is complecated, detailed plan should be made according to the amount of water, water flow rate, what effect you want and your budget.

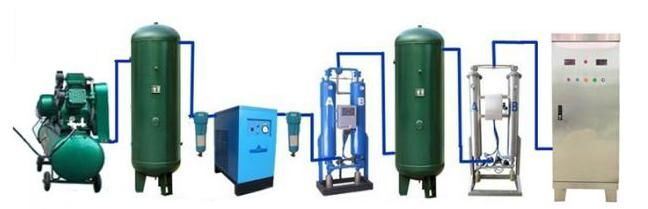

200g oxygen source ozone generator--complete set:
