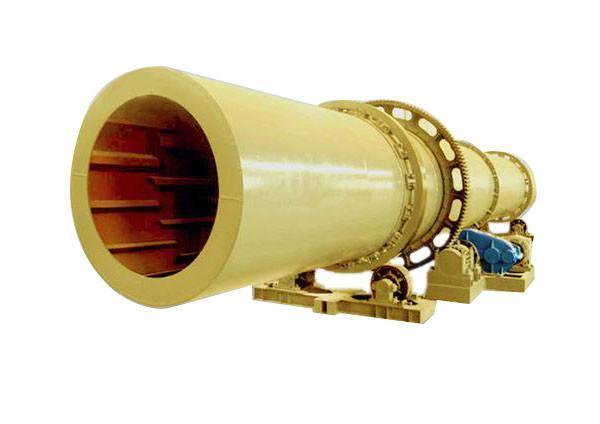

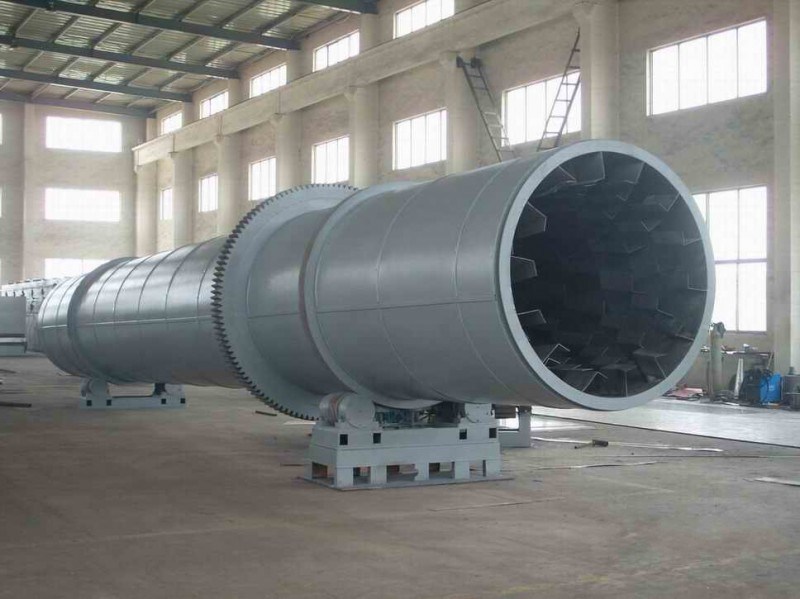

1.Product Application of Factory Directly Supply Coal/Ore powder/Sawdust Rotary Dryer
It is widely used in building materials, metallurgy, chemicals, coal, fertilizer industries to dry the materials with certain humidity or guanularity. The rotary dryer can be used for the drying of many rotary kiln dryer for sale materials,such as the coal slurry, the metal powder the building industry. and many other industry. Generally speaking it can dry the material from 30-40% humidity to 1-5% humidity. According to the different characteristic of the material, the model of the rotary dryer it use will be a little bit different.
2.Working principle of Factory Directly Supply Coal/Ore powder/Sawdust Rotary Dryer
The wet materials are conveyed to the hopper through the belt conveyor or bucket elevator, and then enter into the feed end through the hopper charger and the feeding pipe in sequence. The inclination of the feeding pipe must be greater than the natural inclination of materials in order to make the materials flow into the dryer smoothly. The dryer cylinder with slight inclination with the horizontal line. The materials enter from the higher end, and the heat carrier enters from the lower ender; the two contact each other from opposite directions, but there are also circumstances that the heat carrier flows into the dryer body together with the material.
3.Techinical datas of Factory Directly Supply Coal/Ore powder/Sawdust Rotary Dryer
| Model (mm) | Speed(r/min) | Slope(%) | Inlet Air Temperature(°C) | Power(kw) | Capacity(t/h) | Weight(t) |
| Φ800×8000 | 3-8 | 3-5 | ≤700 | 4 | 0.8-2 | 3.5 |
| Φ1000×10000 | 3-8 | 3-5 | ≤700 | 5.5 | 1-3 | 5.6 |
| Φ1200×10000 | 3-8 | 3-5 | ≤700 | 7.5 | 2-3.5 | 13.5 |
| Φ1200×12000 | 3-8 | 3-5 | ≤700 | 11 | 2.5-4 | 14.2 |
| Φ1500×12000 | 2-6 | 3-5 | ≤800 | 11 | 4-6 | 18.5 |
| Φ1500×15000 | 2-6 | 3-5 | ≤800 | 18.5 | 5-8 | 21 |
| Φ1800×18000 | 2-6 | 3-5 | ≤800 | 18.5 | 6-12 | 31 |
| Φ2000×18000 | 1.5-6 | 3-5 | ≤800 | 22 | 8-15 | 35 |
| Φ2200×12000 | 1.5-6 | 3-5 | ≤800 | 22 | 13-15 | 31.6 |
| Φ2200×14000 | 1.5-6 | 3-5 | ≤800 | 22 | 14-16 | 33.5 |
| Φ2200×16000 | 1.5-6 | 3-5 | ≤800 | 30 | 14-18 | 36 |
| Φ2400×18000 | 1.5-6 | 3-5 | ≤800 | 45 | 16-22 | 42.8 |
| Φ2400×20000 | 1.5-6 | 3-5 | ≤800 | 45 | 18-25 | 52 |
| Φ3000×20000 | 1.5-6 | 3-5 | ≤800 | 55 | 25-30 | 77.8 |
| Φ3000×25000 | 1.5-6 | 3-5 | ≤800 |
4.Main feature of Factory Directly Supply Coal/Ore powder/Sawdust Rotary Dryer
1.Wide applicability, available for many kinds of materials.
2.Simple operation, stable performance;
3.Low investment, high efficient and capacity;
4.Low cost in maintenance
5.Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
6.Certification
7.our copmany
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
8.FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
9.Contact us
If you want to know more details, please contact me!!
Website:http://www.hcmachinary.com
Tel: +86-0371-86160152
Amanda
China
