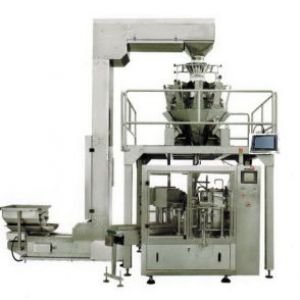

Premade Pouch Filling and Sealing Machine Line for Snacks Jy-Pre

Z bucket elevator:  (discharging height 310cm, total height 360cm)It is made by 304 stainless steel frame and food class plastic ABS buckets. The elevator is applicable for vertical lifting of grain material in depart

Technical Feature

  • Shunde, China
  • 30 Sets/Month
  • L/C, T/T, Western Union, Money Gram
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
JY-PRE
Automatic Grade
Fully Automatic
Filling Valve Head
Single-Head
Dosing Device
Capacity Cup
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging
Bag
Weighing Machine
10 Heads Multihead Weigher
Bag Open
Automatic
Bag Filling
Automatic
Trademark
JINGYI
Specification
200x400x380cm
HS Code
8422303090
Type
Weighing-type Filling Machine
Material Type
Solid
Feed Cylinder Structure
Single-Room Feeding
Filling Principle
Atmospheric Pressure
Structure
Rotary
Packaging Material
Film
Bag
Ready Made Bag
Bag Sealing
Automatic
Max Speed
60 Dumps/Min
Transport Package
Wood Similar Case
Origin
Foshan Guangdong

DETAIL DESCRIPTION

Z bucket elevator:  (discharging height 310cm, total height 360cm)
It is made by 304 stainless steel frame and food class plastic ABS buckets.

The elevator is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.

For the lifting machine, the hopper is driven by the chains to lift. It's used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

Conveyor speed controlled by inverter. Bucket movement controlled by level sensor.

Speed: Max 90buckets/min, each bucket 1.8L
Power: 550W Voltage: 220V or 380V 3PHASE
The vibration hopper is 75x45x10cm


2. JY-10HST multihead weigher:  (stainless steel main frame)
 Main Features
1) The most efficient and accurate weight calculation by computer.
2) Circle dump avoid materials drops together to avoid break and pile up
3) 10.1 inch touch screen with multiple languages.
4) Adjustable backlight control for vision protection
5) Compatible with single packaging machine for automatic weighing.
6) Instant hopper vibration index for better control.
7) 50 preset programs for multiple tasks.
8) Individual setting linear vibration amplitude
9) Templated motor drive, convenient for dismantling
10)Adopts latest CAN BUS electronics and DSP technology, each head unit with modular system control
11) With CE certificate.
Use rangeFood: Snack, candy, sugar, beans, chips, pet food…
Non food: small screws, buttons, nails, toys…
Weight range:8g-1500g/dump
Max speed60bags/min
Weight accuracy±1g
Buckets10pc 1.5L weighing buckets
Operate languageEnglish, Polish, France, Spanish, Hungary, Germany, Finland….
DriveBy step motor
Power1500W
voltage110V, 220V, 50/60HZ
Net weight/gross weight260kg/330kg
Machine size95x95x100cm
Packing size108X108X130cm

3. Platform: (180X180X170CM, stainless steel frame and aluminum table)

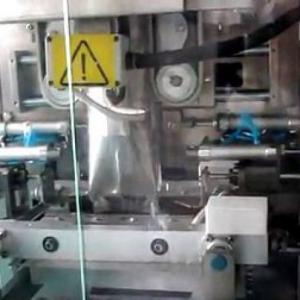

4. Rotary packing machine:


Scope of application:
Lump: candy, chocolate, candy, cookies, cakes, peanuts, beans, nuts, pistachios, cooked food, pickles, puffed food, and other daily necessities;
Granule: MSG, chicken, sugar, melon seeds, nuts, capsule, granular medicines, seed, feed, pesticides, fertilizers, chemical raw materials;
Powder: spices, monosodium glutamate, salt, sugar, glucose, fine powder, detergent, pesticide, fertilizer, chemical raw materials.
Liquid: rice wine, soy sauce, vinegar, fruit juice drinks, detergents and other;
Sauce: tomato sauce, peanut butter, jam, pepper sauce, soybean paste;
Other packaging materials.
Standard configuration:

PLC control system ( OMRON )
Human machine interface ( OMRON )
Pneumatic components ( SMC )
Temperature control system ( OMRON )
Oil free vacuum pump ( ORION )
Engineering plastics bearings ( IGUS )
Optional configuration:

Coding device
Exhaust
Automatic clamping device
Automatic deoxidizing agent apparatus
Automatic zipper opening device
Vibration device
Bag dust removing device
Main functions and features:

Prefabricated bags automatic packaging machine to replace the manual packaging, for large enterprises, small and medium-sized enterprises to realize the automation of packaging, improve the production efficiency of all walks of life, greatly reduces cost;
To meet the food processing machinery health standards, materials or packaging bag contact parts made of stainless steel or other food hygiene requirements in line with processing of materials, to ensure food hygiene and safety.
The wide range of packaging machines, packing liquid, paste, powder, granular, solid body of various materials, only according to the different choice of different measuring and filling device.
Packaging bag adapted to a wide range, for PE, PP multilayer composite membrane made of prefabricated bags, paper bags can be applied;
Package material loss is low, the machine uses the pre-made bags. Packaging bag pattern perfectly, sealing products of good quality, so as to improve the product quality;
Rapid replacement of packaging bags, automatic device to the bag's width can be adjusted quickly and easily handle adjustment;
Convenient operation, use PLC control, who face the interface control system, so that the operation is convenient;
The function of automatic detection, such as the opening of the bag or the bag opening is not complete, not feeding, no heat sealing, the bag can be used again, do not waste package materials and raw materials, for the user to save the cost of production.
Horizontal air bag, bag device can store more bags, the bags quality requirements for low, bags, bag high rate;
Zipper bag opening mechanism, specifically for zipper bag products characteristic design, avoid deformation or breakage of the mouth;
Safety device, when the pressure is abnormal or heating pipe failure, the alarm;
Part of the goods into the engineering plastic bearings, without refueling, reduce the pollution to the material;
Using oil-free vacuum pump, avoid the production of environmental pollution.
Technical parameters:

Type of packing bagbag, hand bag, zipper bags, four sides sealing bag,  three side sealing bag, paper bag, M bags composite bag
Packing rangeW:100~ 200MM  L: 100~ 300MM
Filling area5-1500G
Packing speed30-45 package / minute ( the packing rate from the product characteristics and the filling weight decision)
Packaging accuracydeviation of≤ ±1%
Total power2.2KW
Compressed air consumption≥0.4m³/miu

5. Discharge conveyor: (stainless steel main frame and food class belt)
Feeding speed30m/minute
dimension2110×340×500mm
Voltage220V/45W
Packing size179x48x53cm
Net weight60kg
Gross weight85Kg
