Reverse Osmosis Water Purification Plant

Water Treatment Reverse Osmosis Water Purification PlantRO water filter system can treat tap water, well water, brackish water and sea water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advan

Technical Feature

  • Shanghai, China
  • 500sets/Year
  • L/C, T/T, Western Union, Paypal
  • CE
  • 98.5%
  • Industry
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Model NO.
RO-1000
Usage
Chemical Industry, Beverage Industry
Name
Water Purification
Trademark
Sky Machine
Transport Package
Wooden Case
Specification
CE
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
84212190

DETAIL DESCRIPTION

Water Treatment Reverse Osmosis Water Purification Plant

RO water filter system can treat tap water, well water, brackish water and sea water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advanced skills of reverse osmosis to purifying water. The RO membrane of this water filter is USA Hydranautics, this is the best RO membrane brand.
Reverse Osmosis Water Purification Plant

A. Description:
RO water treatment, the raw water is tap water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤ 10μ S/cm² .

B. Process:

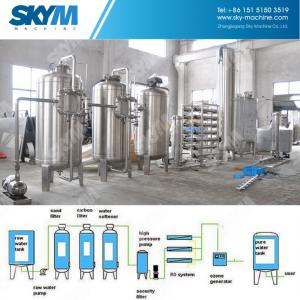

Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ water softener ( optional) + security filter +high pressure pump+ reverse osmosis+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points

C. Parameters:
1. Capacity: 250L/H
2. Rated power: 1.5Kw/H
3. Voltage: 220V/50Hz, 380V/50Hz
4. Desalting rate: 97-98%
5. Water recovery rate: 50-70%
6. Conductivity of raw water: ≤ 400μ S
7. Conductivity of pure water: ≤ 10μ S
8. With water softener

D: Detailed specification
1) Adopts imported RO membrane from America, which can remove 99.7% inorganic salt, heavy metal ion and completely get rid of colloid, microbiology organic materials, germ, protozoa, pathogens, bacteria, inorganic chemical and so on.
2) No need to add any chemicals, stable pure water quality, and no pollution drained, low produce cost.
3) Equipped with pretreatment system, such as active carbon absorption filter and PP sediment filter.
4) 304 stainless steel rack and pipe accessories connection.
5) Equipped with auto pressure protection system and on -line monitor.
6) Automatically and manually wash RO membrane. Also the design of washing the RO membrane is by chemical solution (citric acid or sodium hydroxide optional).
7) The lifespan of the whole system is long, operation simple, the applicability is strong

E. Functions:
1. Manually wash RO membrane
2. Manually wash RO membrane with chemicals on machine
3. Machine automatically stops when high water level of purified water, and runs when low level
4. Multi-stage pumps protect the machine when lack of water
5. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.

F. We are professional water treatment manufacturer located in China.
Model No.Capacity   (M3/H)Power (kw)Recovery Rate (%)Total land area
 LX W X H (mm)
RO-2500.251.5502500X1000X2800
RO-5000.51.5502500X1000X2800
RO-100012503500X1200X2800
RO-20002450-606500X1500x2800
RO-300034.555-657500X1500X2800
RO-400046.555-657500X1500X2800
RO-500051160-7010000X2500X3500
RO-600061160-7010000X2500X3500
RO-800081860-7010000X3500X3500
RO-10000102060-7010000X4000X3800
RO-20000203070-7515000X5000X5000
RO-30000304070-7520000X6000X5000
RO-50000505070-7530000X8000X5000
Reverse Osmosis Water Purification Plant


Reverse Osmosis Water Purification Plant
