WORKING PRINCIPLE

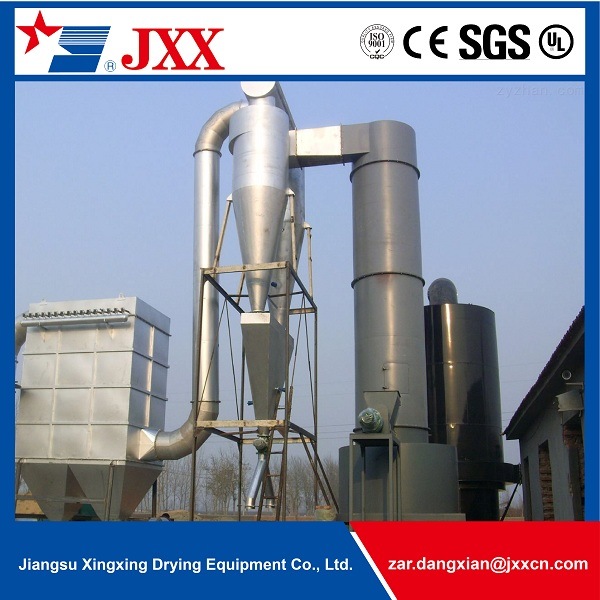

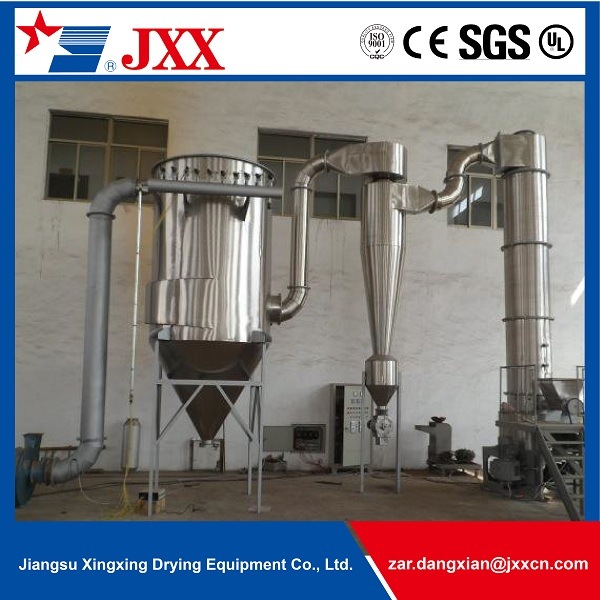

The hot air enters into the bottom of the dryer in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. Paste materials go into the dryer via screw feeder, and dispersed by impact, friction and shearing force under the powerful high-speed rotating impeller; bulk materials immediately get smashed, in fully contact with hot air in order to get heated and dried. Then the dehydrated materials rise with hot air. A hierarchical ring will make large particles retentate, while exhaust small particles out of dryer from center of the ring, recovered by cyclone separator and deduster. The bulk materials or materials without being fully dryer will be thrown to the wall under centrifugal force and drop to the bottom again to be smashed and dried.
FEATURES
(1) Dynamic integration of cyclone, fluidized, spouted and grinding classification technologies.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
APPLICABLE MATERIALS
Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate, the organic pigments, and so on;
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
Technical Parameter
Note: 1 the evaporated amount ofmoistu reis calculatedwhenthetemperatu re ofinletis l80 CandIhetemperature of outletis180oCand the temperature of outlet is 180oC 2.Besides the models above mentioned,special specification can also be made as request;
3.the equipped capacity above mentioned is standard.the power can also be decreased in accordance with pracitcal condition.
Raw materials to treated and characteristics(based on Model 6)
CERTIFICATE
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.
During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win
cooperation relationship in long term. Welcome for your visiting.
WORKING PRINCIPLE
The hot air enters into the bottom of the dryer in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed. Paste materials go into the dryer via screw feeder, and dispersed by impact, friction and shearing force under the powerful high-speed rotating impeller; bulk materials immediately get smashed, in fully contact with hot air in order to get heated and dried. Then the dehydrated materials rise with hot air. A hierarchical ring will make large particles retentate, while exhaust small particles out of dryer from center of the ring, recovered by cyclone separator and deduster. The bulk materials or materials without being fully dryer will be thrown to the wall under centrifugal force and drop to the bottom again to be smashed and dried.
FEATURES
(1) Dynamic integration of cyclone, fluidized, spouted and grinding classification technologies.
(2) Equipments are compact and small-sized, enabling high efficiency and continuous production, achieving "small equipment, large-scale production".
(3) Great drying intensity, low energy consumption, high thermal efficiency.
(4) Short material residence time, good product quality, available for drying heat sensitive materials.
(5)Negative or slightly negative pressure operation, good impermeability, high efficiency, eliminating environmental pollution.
APPLICABLE MATERIALS
Organic compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate, the organic pigments, and so on;
Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide, all kinds of heavy metal salt, synthetic cryolite and so on;
Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
Technical Parameter
| Model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| ID of main machine,mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 |
| Air amount,M3/h | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-20000 | 18000-36000 | 28200-56500 |
| Evaporated moisture,kg/h | 12-17 | 40-70 | 80-150 | 150-250 | 230-4250 | 300-600 | 600-1000 | 1000-1500 |
| Max equipped capacity,kw | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| Max,hight,m | 4.0 | 4.8 | 5.8 | 6.5 | 7.1 | 7.8 | 8.8 | 10.1 |
| Occupied area,m2 | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
3.the equipped capacity above mentioned is standard.the power can also be decreased in accordance with pracitcal condition.
Raw materials to treated and characteristics(based on Model 6)
| Name of raw material | Zinc stearate | Aluminum hydroxide | Zinc carbonate | Insecticide | TMTD | DSD acid | Ferric Oxide red | Antimony Dioxide | Cuprous Chloride | White Carbon Black |
| T of air inlet,oC | 150 | 180 | 150 | 120 | 140 | 150 | 200 | 180 | 200 | 280 |
| Primary moisture,% | 80 | 55 | 80 | 30 | 65 | 60 | 60 | 45 | 30 | 85 |
| Final moisture,% | 0.5 | 1.5 | 1.0 | 1.0 | 0.5 | 0.5 | 0.5 | 1.0 | 3.0 | 5.0 |
| Practical dry capacity,kg/h | 140-160 | 250-280 | 130-170 | 80-110 | 80-120 | 80-120 | 300-350 | 280-320 | 290-310 | 250-300 |
| Name of raw material | ZDC Accelerant ZDC | Oil Soluble ink | Substitute Zinc Manganate | Phthaloc- Yanin dye | Calcium Citrate | Superfine Calcium Carbonate | Slurry Treatment Agent | Sodium Isocyanurate Dioxide | Sodium Isocyanurate Trioxide |
| T of air inlet,oC | 150 | 150 | 120 | 150 | 140 | 160 | 200 | 180 | 150 |
| Primary moisture,% | 60 | 45 | 30 | 55 | 40 | 70 | 75 | 25 | 30 |
| Final moisture,% | 0.5 | 2.0 | 1.0 | 1.0 | 1.0 | 1.5 | 5.0 | 0.2-2 | 1.0 |
| Practical dry capacity,kg/h | 80-110 | 350-380 | 120-150 | 160-180 | 300-350 | 430-470 | 290-310 | 80-120 | 90-150 |
