Szlh320 Ring Die Poultry and Livestock Pellet Press

SZLH320 Ring Die Poultry and Livestock Pellet PressMain Features of Pellet Mill Machine1.With two rollers inside, better for poultry feed making;2.Manufacturing according to internationally advanced technology standard;3.The quality matching with the

Technical Feature

  • Qingdao, China
  • 20 Set/Sets Per Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Pellet Mill
  • Animal-Derived Feed
  • Crushing-before-Mixing
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~50

PRIMARY PARAMETERS

Model NO.
SZLH 320
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Certification
Ce, ISO, SGS
Power(W)
37kw
Capacity
3-5t/H
Raw Material
Grain, Corn, Wheat
Pellet Size
2-12mm, Length as Per Customeru2032s Need
Dimension(L*W*H)
1500*1200*1350mm
Warranty
1 Years
Bearing Brand
SKF/NSK
Motor
Siemens Motor
Ring Die Material
Stainless Steel
Trademark
RICHI
Transport Package
Iron Pallet or Depend on Customeru2032 S Needs
Specification
380V/400V/415V
Origin
Henan, China(Mainland)
HS Code
8436100000

DETAIL DESCRIPTION

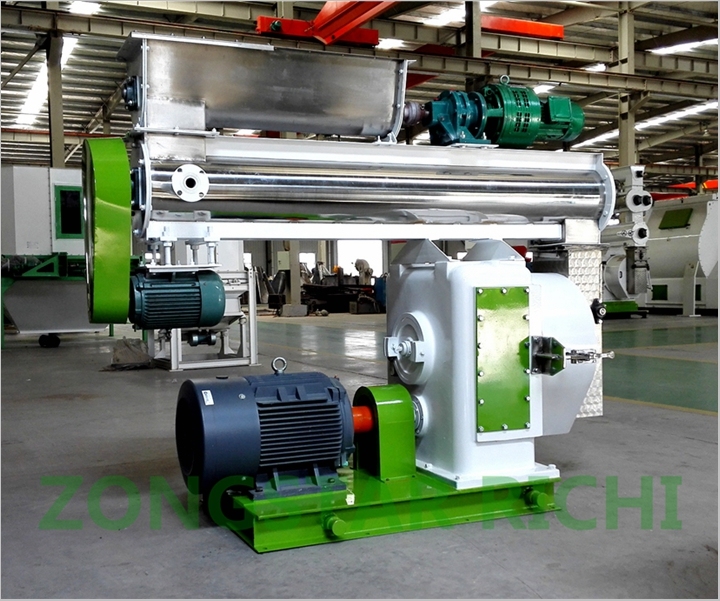

SZLH320 Ring Die Poultry and Livestock Pellet Press
Main Features of Pellet Mill Machine

1.With two rollers inside, better for poultry feed making;
2.Manufacturing according to internationally advanced technology standard;
3.The quality matching with the European standard;
4.Gear driving system, with good transmission rate, stable and reliable performance and low noise;
5.The key components are imported to ensure longer service life and lower cost for maintenance;
6.Raw material contacting parts are made by stainless steel;
7.Widely used for pelleting the high-grade livestock and poultry feed.

Poultry feed pellet mill models
ModelMain PowerFeeder PowerConditioner PowerDia.of Ring DiePellet SizeCapacity
SZLH25022KW0.55KW1.5KW250mmφ1.0-12.0mm1-2T/H
SZLH32037KW1.5KW2.2KW320mmφ1.0-12.0mm3-5T/H
SZLH35055KW1.5KW3.0KW350mmφ1.0-12.0mm5-7T/H
SZLH420110KW2.2KW7.5KW420mmφ1.0-12.0mm8-12T/H
SZLH508132/160KW2.2KW11KW520mmφ1.0-12.0mm12-120T/H

SZLH-320 Feed Pellet Making Machine ,The Capacity is 3-5T/H
Szlh320 Ring Die Poultry and Livestock Pellet Press

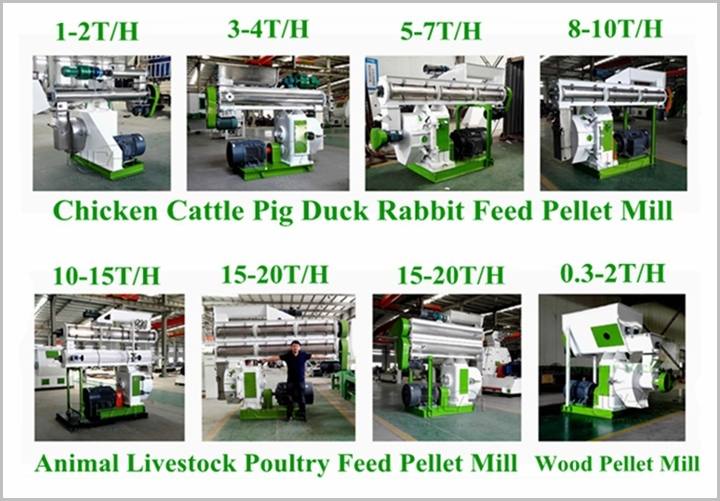

Other Types of Feed Pellet Machine

Szlh320 Ring Die Poultry and Livestock Pellet Press

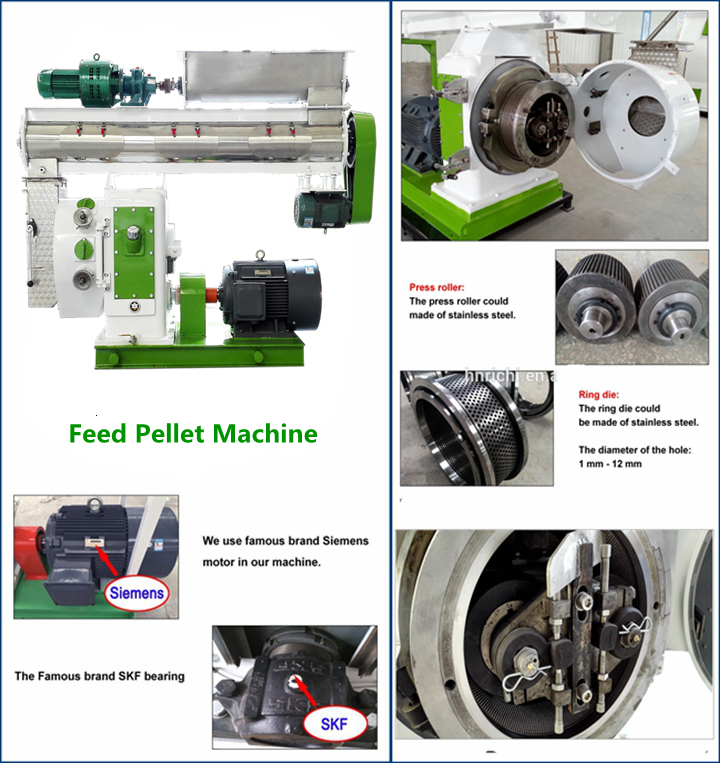

Advantages of Animal Feed Pellet Making Machine

  • Gear directly-connecting driving is adopted for high efficiency;
  • Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;
  • LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
  • Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
  • Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
  • The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
  • Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
  • The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Szlh320 Ring Die Poultry and Livestock Pellet Press

Product Description

This Poultry Feed Pellet Machine can be used to make feed pellets for all ages chicken cattle pig and other poultry. And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry. The feed pellet can be used to your farm to use, can also be used for marketing. Also can used for our turn-key feed project.
The 3-5T/H Feed Pellet Machine Used For Feed Pellet Production Line

Szlh320 Ring Die Poultry and Livestock Pellet Press

About Our Factory

23Years!!!
Szlh320 Ring Die Poultry and Livestock Pellet Press

♦ We, Henan Zonstar Richi Machinery Co., Ltd. was established in 1995, Has served Europe,
North America, Africa,Middle East, Asia for ten years. Our products have been sold to many countries all over the world. Such as Algeria, Malaysia, Qatar, Zimbabwe, cape Verde, Ecuador, Tanzania, Serbia, Chile, Peru, uzbekistan, Ukraine, etc
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional poultry animal feed pellet mill machinery and complete feed plant project solution supplier,
Henan Richi can always meet different customers' requirement.

♦ Choose RICHI, Choose Rich, Choose Success!!!

♦ Choose Our Feed Machinery, is Choose Your Need!!!


Our Other Type Feed Equipments
Szlh320 Ring Die Poultry and Livestock Pellet Press
Contact Information:

HENAN RICHI MACHINERY CO., LTD

Name: Tiffany Wang
Mob:+86 15093409352


Tel: +86 371 63379734;
Fax: +86 371 63752859
