Product Description:
Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pionere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Product Details:
Working Principle:
Selection Reference:
Application:
Advantages:
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance
Process Diagram:
Cases:
Remarks:
♦ Sludge type, sludge volume, solid content and daily runtime of machine are necessary for better model selection.
♦ Raw material is SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Custom-made is available.
Contact Us:
YEW
Tel:(86)0510-88568099
Product Description:

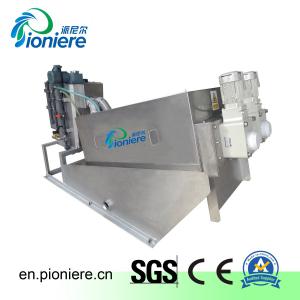

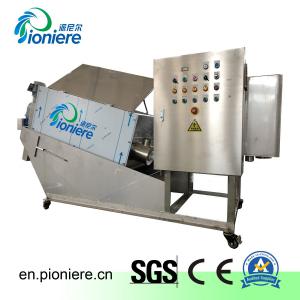

Screw press sludge dewatering equipment (XF series) is a new kind of sewage treatment facility developed by Pionere. It uses multilaminated filter and spiral rotation to separate moisture from sludge. Benefiting by the special structure of fixed rings and moving rings, it allows continuous automatic operation in 24 hours without blocking. And our machines are competitive in current market for more than 6 years' experience and CE certification.
Product Details:
Working Principle:

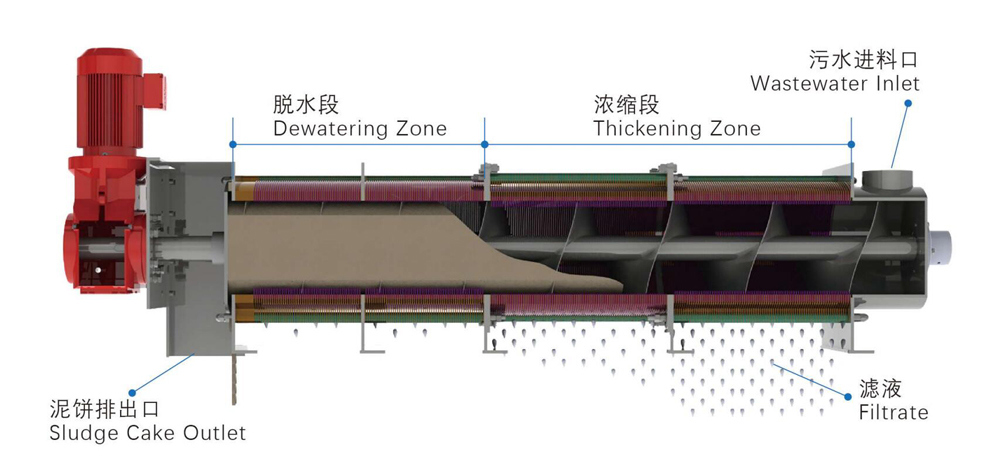

As equipment starts running, sludge flows into the filter cylinder and moves forward to sludge cake outlet under the thrust from screwshaft. The whole filter cylinder is composed of fixed rings, moving rings and shaft. The first two sections are thickening zone, last two are dewatering zone, The space between screw blades gets more and more narrower, which means the inner pressure gradually gets bigger. Under this pressure, liquid is squeezed out from the sludge and leaks from the small gaps between rings. And the left dry solid is pushed to the sludge cake outlet.
Selection Reference:
Application:
Advantages:
♦ Low cost operation
♦ Energy, water, polymer saving
♦ Compact design, small floor space
♦ Self-cleaning, free of clogging, easy to handle oily sludge
♦ 24h automatic continuous control, simple operation and maintenance

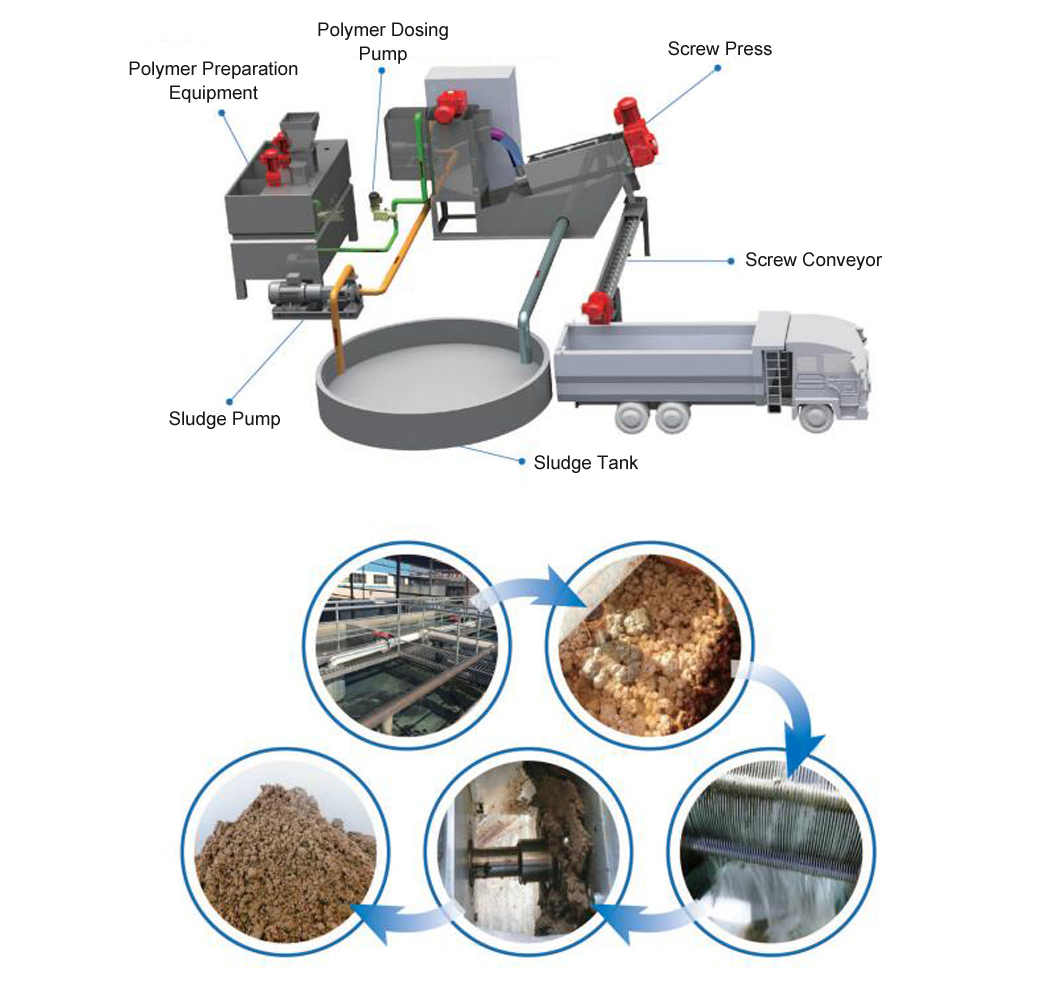

Process Diagram:

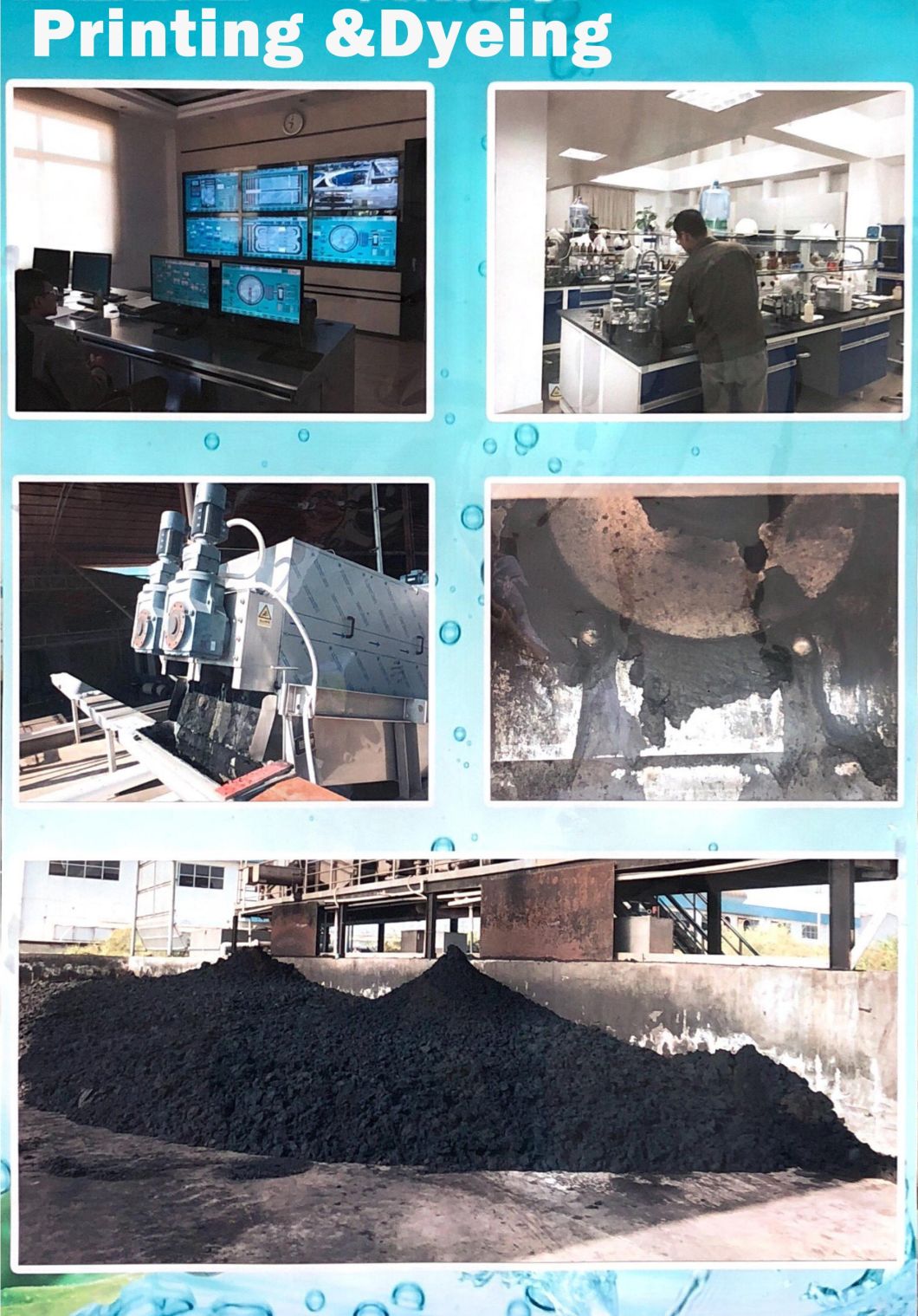

Cases:
Remarks:
♦ Sludge type, sludge volume, solid content and daily runtime of machine are necessary for better model selection.
♦ Raw material is SS304 or SS316 (according to different sludge types,sludge containing much chloride ion needs SS316).
♦ Custom-made is available.
Contact Us:
YEW
Tel:(86)0510-88568099
Fax:(86)0510-80193290
Web: www.pioniere.cn
China
