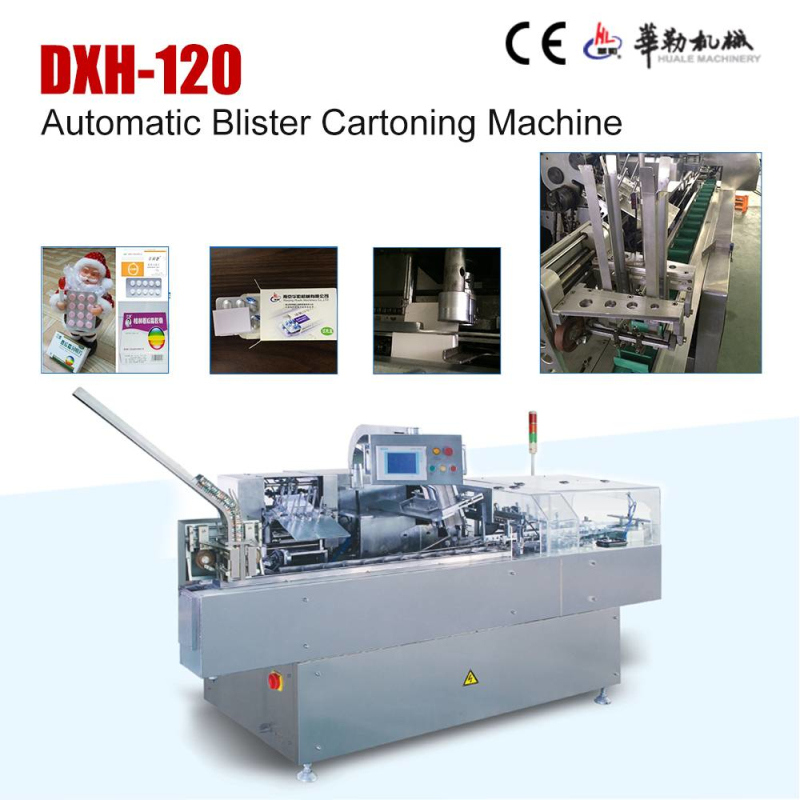

Name: Automatic Cartoning Equipment Small Carton Box Packing Machine
This Small Box Packing Machine is suitable for packaging different objects with automatic leaflet inserting, carton opening, object cartoning, batch number embossing and carton sealing,.
Introduction
1.This Small Box Packing Machine for various small items.
such as ALU-PVC blister plate, bottles, cosmetics, playing cards, electronics and daily use hardware, etc.
2.PLC touch screen system
3.Insert leaflet and product into carton
4.Protecting automatically for overloading.
5.Stable performance , operation is easy .
Descriptions and features
This is a newly designed machine based on domestic and abroad advanced technology which combined Mechanical, electrical, pneumatic and optical together.
The machine can work isolated or connecting to other packaging machines as a production line.
International famous brand of electrical component such as PLC touch screen, frequency converters, etc.
Automatically displaying device for trouble, speed and finished products counting.
Machine running without pressing if no products or incorrect position of products. And stopping automatically if Incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Automatic detection and rejection device for lacking blister goods and leaflets.
Main technical Parameters
This Small Box Packing Machine is suitable for packaging different objects with automatic leaflet inserting, carton opening, object cartoning, batch number embossing and carton sealing,.
Introduction
1.This Small Box Packing Machine for various small items.
such as ALU-PVC blister plate, bottles, cosmetics, playing cards, electronics and daily use hardware, etc.
2.PLC touch screen system
3.Insert leaflet and product into carton
4.Protecting automatically for overloading.
5.Stable performance , operation is easy .
Descriptions and features
This is a newly designed machine based on domestic and abroad advanced technology which combined Mechanical, electrical, pneumatic and optical together.
The machine can work isolated or connecting to other packaging machines as a production line.
International famous brand of electrical component such as PLC touch screen, frequency converters, etc.
Automatically displaying device for trouble, speed and finished products counting.
Machine running without pressing if no products or incorrect position of products. And stopping automatically if Incorrect position of product into carton after return or no cartons or out of leaflets continuous.
Automatic detection and rejection device for lacking blister goods and leaflets.
Main technical Parameters
| Max encasing speed | 50-120 boxes/min | |
| Box | Quality requirement | 250-350g/m2(according to carton size) |
| Dimension Rang (L*W*H) | (50-200)×(20-80)×(14-45)mm | |
| Leaflet | Quality requirement | 55-65g/m2 |
| Folded Leaflet Specification(1-4) Fold | (80-240)×(90-190)mm (L×W) | |
| Compressed air | Pressure | ≥0.5Mpa 120-160L/min |
| Consumption | 0.3m3/min | |
| Motor Power | 220V 50HZ 0.75kw | |
| Dimension | 3100×1100×1600mm (L×W×H) | |
| Net weight | 1500kg |
