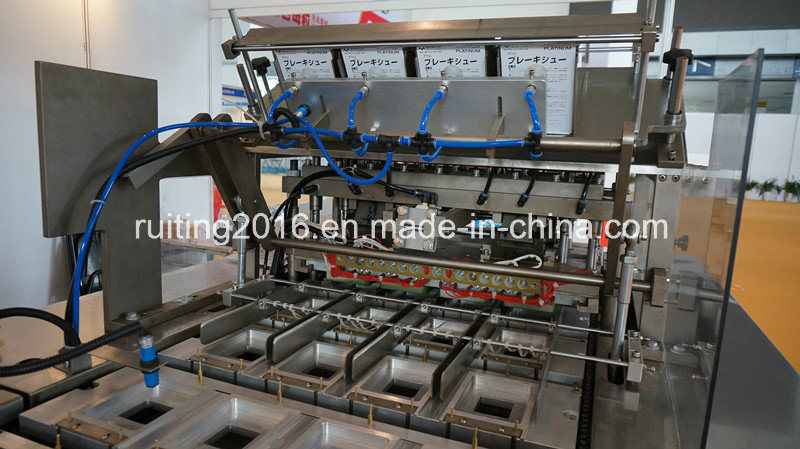

Rtzp-500 Lipstick Toothbrush Packaging plastic PVC Carton Blister Packing Machine
Workflow:
PVC feeding
↓
PVC heating & forming
↓
Blister towing & punching
↓
Waste material collecting
↓
Mechanical hand picking blisters into sealing molds
↓
Inspecting the blister
↓
Feeding automatically or by hand
↓
Feeding & inspecting cardboard
↓
2times heating under high pressure
↓

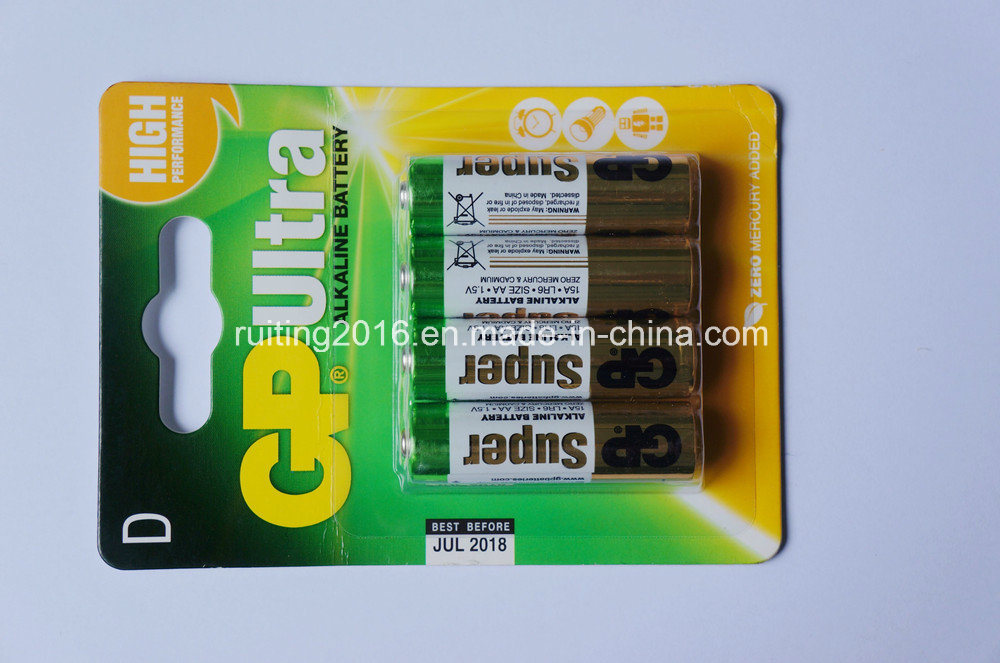

Finished products
Model | RTZP-500 | |
Packing Material | PVC sheet thickness | (0.15-0.5)*(330-460)mm |
Cardboard 200g-700g | ||
Compressed air | pressure (0.55-0.85)Mpa | |
air consumption quantity≥0.3m/min | ||
Power consumption | 380V50Hz 7-12Kw | |
Mould cooling water | Running water or circle water consumption50L/h | |
Overall dimension | L*W*H(3600-4300)*900*1650mm | |
Weight | 1500-2300Kg | |
Production capacity | 10-30 punches/min | |
Travel range | 50-(130-180)mm | |
Max area of cardboard | 500*(125-220)mm | |
Max forming area and depth | (310-440)*(120-180)*(16-45)mm (According to customer's requirement) |
