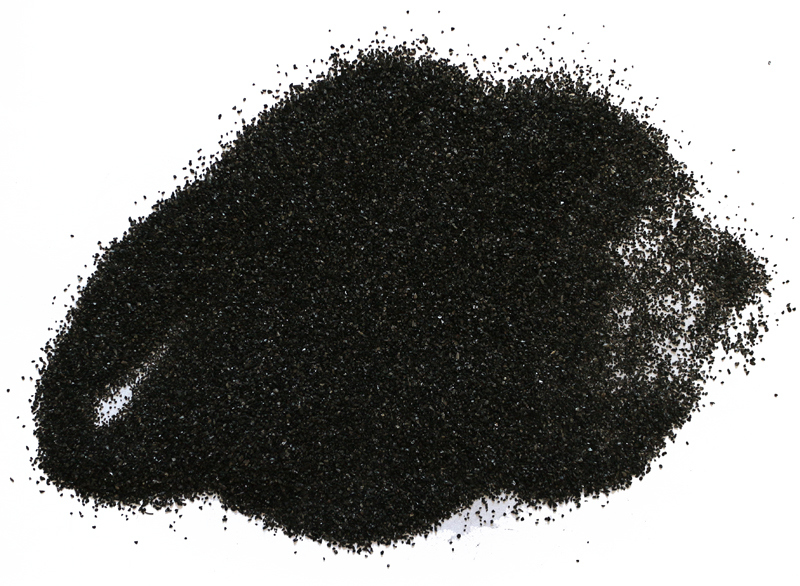

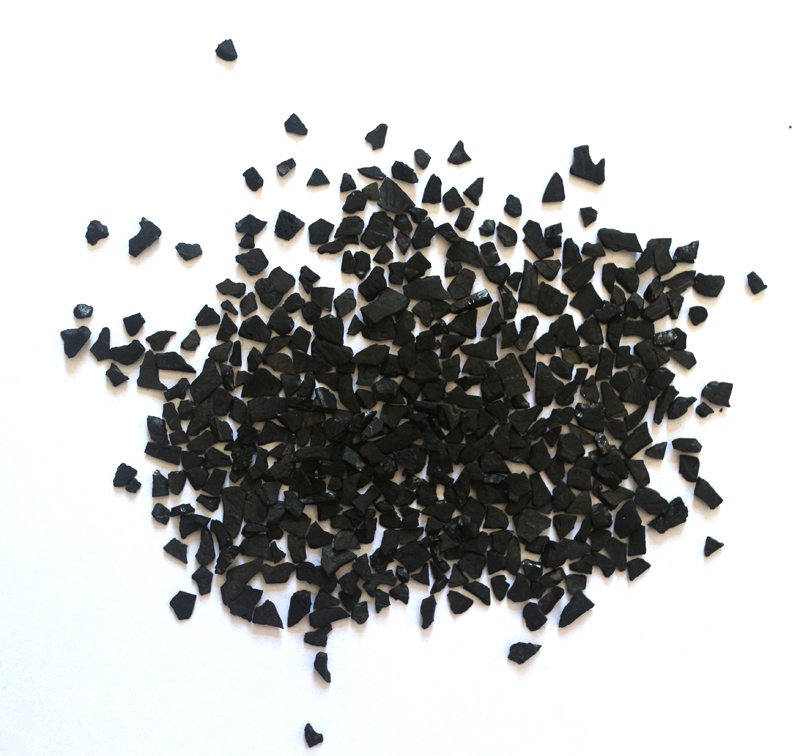

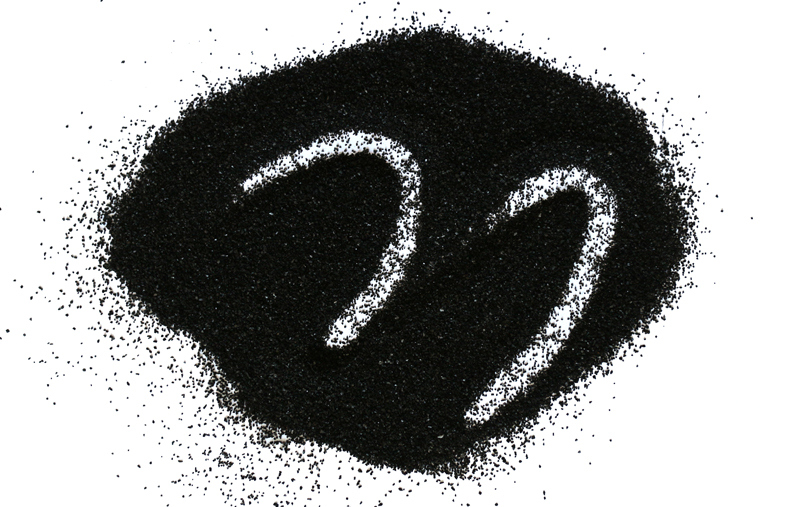

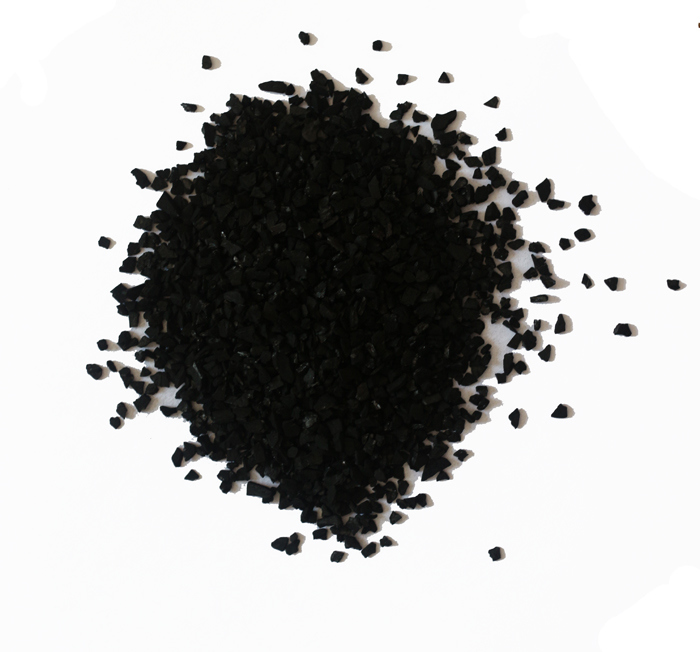

![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/19fd9e12af268ed87644aef46bdfa938.jpg)
![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/a229c64dbf9db906a2981eeb482ddfa3.jpg)
![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/05537848c2a4ef55acb76407c6f59103.jpg)
![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/27d2dbd6fe574bef5f48c44d94d6a113.jpg)
![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/576e30e234ef7bc3785428483c4f9e2f.jpg)
![4X8 Mesh Granular Active Carbon Walnut](/uploads/lib/20180707/ef78b0339fe8aab1fed096b09c6af8d0.jpg)
Products Applications
Waste gas treatment
Industrial and domestic water treatment,
Solvent & gold or other mentals recovery
Toxic gas purification
4.Products Features
Rreasonable pore structure
High adsorption ability
High mechanical strength
Regeneration easily.
5.Products Key Technical datas
Moisture content ≤ 5.0%
Hardness ≥ 92%
Ash content ≤4%
Iodine No. :650--1050mg/g
C.T.C ≥ 60 %
Apparent density :0.44-0.55g/cm3
6.Producing Procedure
Raw material of high quality Shanxin anthracite Coal or 100% bituminous coalBroken&CrushingBlending&MixGrinding to PowderAgglutinateCompression moldingCharcoaling ActivationSieve and packWeighColumnar activated carbon
Name/Specification | Coconut shell activated carbon | Apricot shell activated carbon |
Iodine adsorption value | ≥1100mg/g | ≥1000mg/g |
400mg/g | 400mg/g | |
mechanical strength | ≥95% | ≥95% |
Filling density | 0.4-0.5g/cm3 | 0.4-0.5g/cm3 |
500mg/g | 500mg/g | |
PH value | 5-7.5 | 5-9 |
7mg/g | 6mg/g | |
Moisture | ≤5% | ≤5% |
minimum flow velocity | 9-12.5m/s | 9-12.5m/s |
Specific Surface area | 900-1110m2 | 900-1110m2 |
Fire point | 500°C | 500°C |
Total hole volume | 0.8cm3/g | 0.8cm3/g |
