50L Anti-Explosion Glass Rotary Evaporator
1.Feature of 50L Anti-Explosion Glass Rotary Evaporator (50L, 20L, 10L):
- Built-in vacuum controller, High vacuum performance
- PTFE sealing
- Anti-explosion desigh to secure the experiment
- Flexibly adjust the ascending or descending of Water/ Oil bath by hand lift
- Digital display and control, easy to read and set
- Easy assembling design: to be assembled within 30 minutes.
- Double layer cooling coils for improved condenser performance.
- High quality borosilicate glass 3.3 with excellent physical and chemical properties
- Large selection of customized volumes from 0.25L to 50L
- Cost-saving modular design and can be customized by clients' requirements
♦We are professional lab equipment manufacturer and we can produce customized anti-explosion rotary evaporator as per clients' required specification & quantity and deliver goods within required production time.
2.The advantage of Toption rotary evporator
The advantage of Toption Rotary Evaporator | |
1 | All the glass parts with high Borosilicate Glass 3.3 |
2 | The voltage can be changed to 110V /60Hz (Standard 220V/50Hz), related plug for your country using. |
3 | With oil bath (RT~180°C)and water bath (RT~100°C) for your choice. |
4 | Can make special opening on the condenser for testing vapor inlet temp. |
5 | PT 100 sensor with digital displayer can be added for vapor inlet temperature. |
6 | Standard exported wooden package to ensure safe delivery. |
7 | Automatic bath lifting system; |
8 | Rotary speed between 10 - 110 rpm. |
9 | All PTFE valves |
10 | Continuous receiving without interrupt operation. |
11 | Seal: PTFE Viton gasket vacuum |
12 | Ultimate Vacuum Level: < 2 mbar. |
13 | Transparent shield, insulation, energy saving, explosion-proof, splash-proof, rust-proof, anti-pollution, improve safety performance. |
3. General Specification of the the EXRE series
anti-explosion glass rotary evaporator (50L, 20L, 10L):
Model | YRE-2010 | YRE-2020 | YRE-2050 |
Rotary flask(L) | 10 | 20 | 50 |
Collection flask(L) | 5 | 10 | 20 |
Motor power(W) | 120 | 120 | 180 |
Rotating speed (rpm) | 0~110 | ||
Evaporating Rate (L/hr) | ›6 | ›10 | ›18 |
Water bath power(kw) | 3 | 4 | 4 |
Power supply | 220V 50HZ | ||
Sealing | PTFE sealing | ||
Bath temp control range(°C) | RT-180 | RT-99 | |
Vacuum degree | -0.098(20 mbar) |

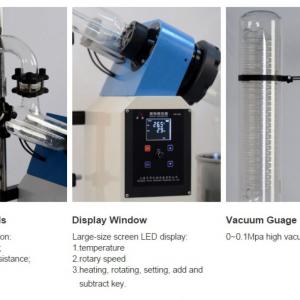

4.Details Display Packing:
5.FAQ
Q: What rotary evaporator you supply??
A: Now we supply standard rotary evaporator.from 1L,3L,5L,10L,20L,30L,50L and customized type as your request,we not only supply instrument but solution provider
Q: What is matched device for rotary evaporator?
A: 1. Vacuum pump
2. Circulating heater
3. Chiller
We can match you circulating heater and chiller, range of temperature from -80 to 300ºC and vacuum pump if you need.
Q: MOQ of Reactors Supply??
A: 1 set can supply
Q: Delivery Time of rotary evaporator After Place Order??
A: Generally within 2-3 working days after payment if in stock, if customized usually 3-5 working days
Q: Whats Your Warranty Time??
A: 12 months, within warranty time, all parts free changeable only pay freight, after warranty time all parts changeable as produced cost
