Introduction:
Series CTZ permanent magnetic drum (magnetic pulley) is usually used for the purification treatment of powdery, granular, small block materials and the recycling of iron. Besides, the machine can prevent the crushing machines, grinding machines and pressing machines from being damaged and abraded by tramp iron.
Features:
1. Easy to install and convenient to use.
2. Excellent magnetic field intensity.
3. No energy consumption itself.
4. High efficiency and stable performance.
Applications:
Widely used in metallurgy, ceramics, abrasives, carborundum, non-metallic minerals, refractory materials, mining, food, chemical, glass, building materials and other industries.

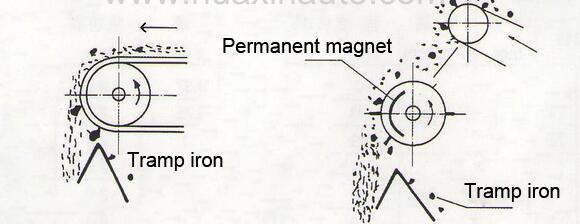

Sketch map
Can be customized according to user requirements, provide technical support.

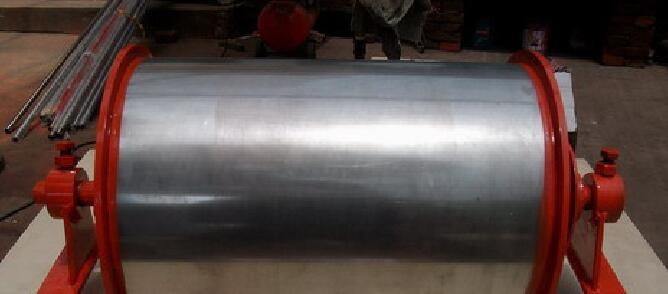

The uploaded image is displayed as a sample showing. Please contact us for details.
The following is the contact information, 24 hours service.
Series CTZ permanent magnetic drum (magnetic pulley) is usually used for the purification treatment of powdery, granular, small block materials and the recycling of iron. Besides, the machine can prevent the crushing machines, grinding machines and pressing machines from being damaged and abraded by tramp iron.
Features:
1. Easy to install and convenient to use.
2. Excellent magnetic field intensity.
3. No energy consumption itself.
4. High efficiency and stable performance.
Applications:
Widely used in metallurgy, ceramics, abrasives, carborundum, non-metallic minerals, refractory materials, mining, food, chemical, glass, building materials and other industries.
Sketch map
| Model No. | Adaptive belt width(mm) | Diameter of drum(mm) | Length of drum(mm) | Magnetic intensity(mT) | Rotary speed(r/min) | Iron removing capacity (t/h) | Weight (kg) | ||
| Powdery materials | Bulk materials | ||||||||
| CTZ-32/40 | 400 | 320 | 500 | 300 | 20~30 | 0.8 | 10 | 120 | |
| CTZ-32/50 | 500 | 320 | 600 | 300 | 1 | 15 | 150 | ||
| CTZ-40/50 | 500 | 400 | 600 | 300 | 2 | 20 | 240 | ||
| CTZ-50/50 | 500 | 500 | 600 | 300 | 3.5 | 30 | 360 | ||
| CTZ-32/65 | 650 | 320 | 750 | 300 | 2 | 20 | 210 | ||
| CTZ-40/65 | 650 | 400 | 750 | 300 | 2.8 | 30 | 350 | ||
| CTZ-50/65 | 650 | 500 | 300 | 4.5 | 40 | 420 | |||
| CTZ-63/65 | 650 | 630 | 300 | 7 | 45 | 830 | |||
| CTZ-40/80 | 800 | 400 | 950 | 300 | 8 | 55 | 470 | ||
| CTZ-50/80 | 800 | 500 | 300 | 10 | 65 | 600 | |||
| CTZ-63/80 | 800 | 630 | 300 | 10 | 80 | 800 | |||
| CTZ-80/80 | 800 | 800 | 400 | 12 | 100 | 980 | |||
| CTZ-63/100 | 1000 | 630 | 1150 | 350 | 12 | 120 | 1200 | ||
| CTZ-80/100 | 1000 | 800 | 1150 | 400 | 15 | 140 | 1300 | ||
| CTZ-100/120 | 1200 | 1000 | 1400 | 400 | 20 | 180 | 1580 | ||
| CTZ-125/140 | 1400 | 1250 | 1600 | 400 | 30 | 250 | 1950 |
Can be customized according to user requirements, provide technical support.
The uploaded image is displayed as a sample showing. Please contact us for details.
The following is the contact information, 24 hours service.
