Specification:
| Diameter (mm) | Φ20, Φ50, Φ53, Φ57, Φ60, Φ65, Φ70, Φ75, Φ80, Φ100, Φ125, Φ200, Φ245, Φ300, Φ320, Φ360, Φ400, Φ450, Φ500, Φ550, Φ600, max. 1200 |
| Slot (mm) | 0.010, 0.015, 0.02, 0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.5......15 ... |
| Length (mm) | 50~6000 |
| Material | stainless steel (AISI 304, 316, 316L...), low carbon steel, low carbon steel galvanized zinc, steel treated with plastic spraying |
| Wedge Wire (mm) | Width: 1.0,1.2,1.5,2.0,2.2,3.0,3.3,3.7,4.0,4.5 Height: 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.70,5.5 |
| Support Rod (mm) | Width: 1.5,2.0,2.3,2.5,3.0,3.3,3.7,4.0,4.5 Heigh: 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.5,4.7,5.5 |
| Note | Non-standard offer, can be produced as per request |
Characteristics:

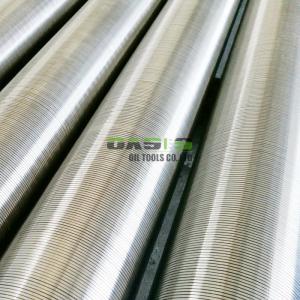

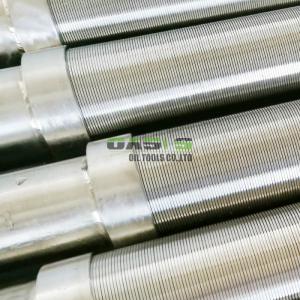

The stainless steel wedge wire screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

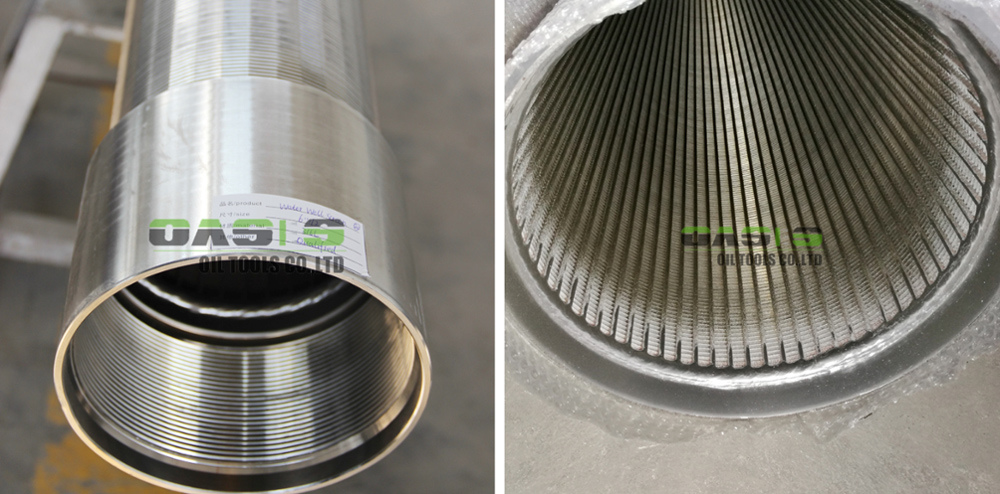

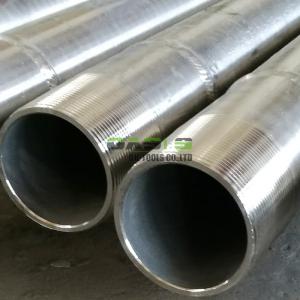

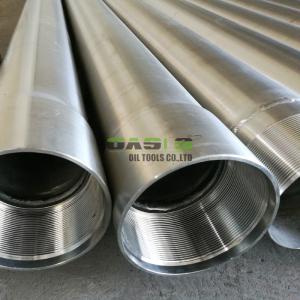

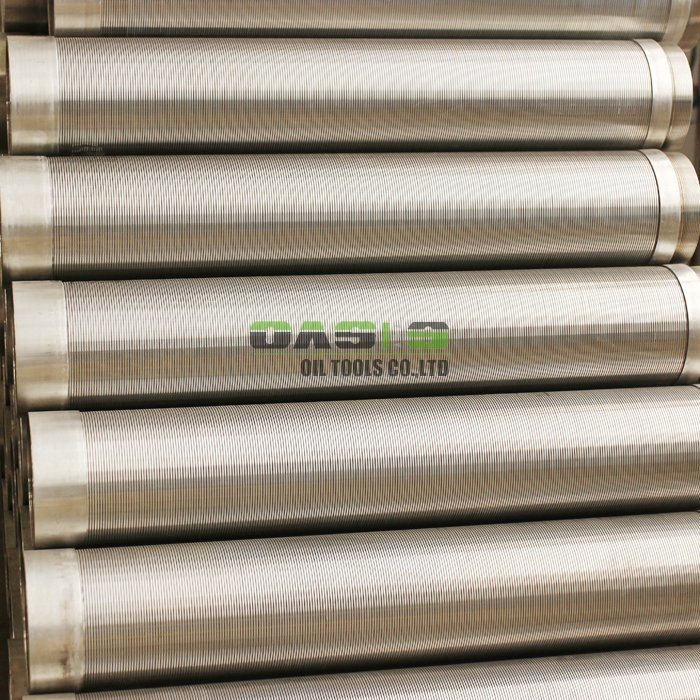

Stainless steel Johnson water well screen:
1.The stainless steel water well screen is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.
2.This type of screen made up of rods and warp.the rod can be round wire,triangular wire and trapezoid wire.
3.The wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.
4.The warp is triangular wire(v-shape wire).The water well screens have astructure and high open area;as well as accurate slot dimension.
5.Water well screen have heat -resising,anti-corrosive,good machine capability,last long ,satefy and reliability and so on.
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
Applications of wedge wire screen pipe :
• Separating; • Sizing • Straining;
• De-watering; • Filtering; • Drying;
• Water intake; • Media retention
Advantage:
1.Geological formations comprised of small, fine particles
2.Water wells where gravel packs will be installed
3.Thin aquifers, where maximum open area is required
4.Large- and small-diameter deep well
The certification:

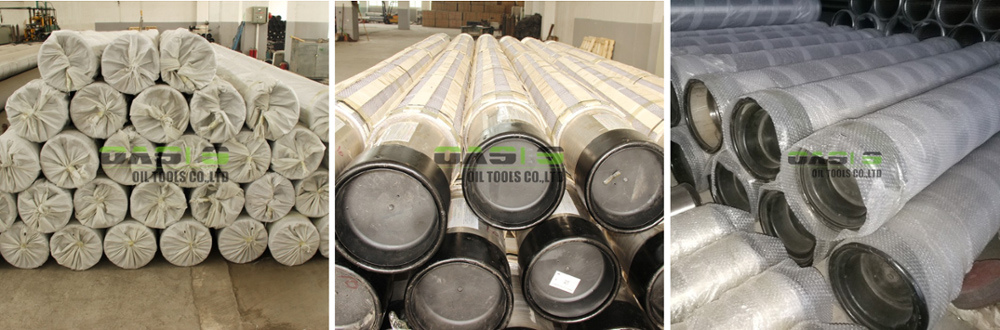

Packing&Delivery:
Packaging Details: water well screens/v wedge wire screen filter strainers/deep well water pipes are packed with bubble bag or woven bag and then in wooden case or according to the requirement of customers.
Delivery Time: Within 30 days after received your advanced deposit or depend on quantity.
About Oasis:
Oasis Oil Tools Co., Ltd is located in Xinxiang Industrial Park, Henan Province, which is collection of scientific research, production, manufacturing, sales and service as one of the major high-tech enterprise. We have a group of professional technical and sales staff and management team, extensive and stable business channel as well as the strong economic strength, international and domestic marketing ability. Our company treats customers as the center, focuses on CSI of after-sales products and service, and constantly deepens the cooperative relations with customers. We will adhere to "serve you, share with you" management philosophy, wholeheartedly for our customers with high quality products and perfect service.
Contact us:
If you have any question about our Water Well screen Water treatment Johnson wedge wire Screen Pipe, please feel free to contact us.
