Stainless Steel Pipe

Technical Feature

Shanghai, China

20000 Metric Ton Per Year

L/C, T/T

Send Standard Inquiry

Add Inquiry List

$0~5

PRIMARY PARAMETERS

Model NO.

austenitic and duplex stainless steel

Standard

ASTM, AISI, GB, JIS, DIN, EN

Certification

ISO, ISO, PED ASME, DNV

Technique

Cold Rolled

Outside Diameter

6mm - 508mm

Length

20m

Transport Package

in Bundles or Wooden Cases

Origin

China

Type

Stainless Steel Pipes

Grade

300 Series

Shape

Round

Surface Treatment

solution anealed and pickled

Wall Thickness

0.5mm - 20mm

Trademark

GAOLIN

Specification

ASTM, DIN, EN, JIS, GOST, GB

HS Code

73044110

DETAIL DESCRIPTION

We specialize in stainless steel pipe/pipes, seamless stainless steel pipe/pipes/piping, stainless steel seamless pipe/pipes/piping

Product Introduction
Product Name: Seamless Stainless Steel Pipe
Features:
1) Commodity: Seamless austenitic stainless steel pipe/tube, Seamless duplex stainless steel pipe/tube

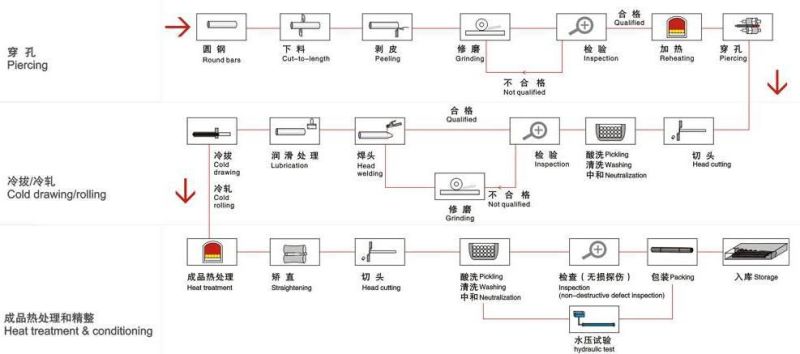

2) Process method: Cold drawn/cold rolled3) Surface finish: Anneal/pickling/manual polished/ mechanical polished

4) Material: TP304/304L/H/LN, TP309S/310S, TP316/316L, TP317/317L, TP321/321H, TP347/347H, TP316Ti, TP904L, N08904, S31803, S32205, S32304, S32750, SAF2205, SAF2304, SAF2507, 1.4301, 1.4306, 1.4401, 1.4404, 1.4833, 1.4845, 1.4571, 1.4438, 1.4541, 1.4550, 1.4539, 1.4462 1.4410, 12X18H10T, 08X18H10T and so on. 5) Standards: ASTM(ASME) (SA)A312/213/269/511/677/789/790/M, DIN17456/17458, EN10216-5, JIS G3463/G3459, GOST 9941-81 and so on

6) Size:
A) NPS: 1/8" to 20"
B) Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S,
Acc. To ANSI B36.19/36.10
C) O. D.: 6mm to 508mm
D) W. T.: 0.5mm to 40mm
7) Length: Max. 20 meters
8) Delivery conditions: Solution Annealed and Pickled
9) Inspection: ISO 9001-2000, PED 97/23/EC, ASME, DNV10) Applications: For fluid and gas transport, structure and Machining

11) packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging
