Stainless Steel Perforated Wire Mesh Basket Filter Element

Wedge wire basket filter is a filter element for filter equipment, which is used to remove small amount of solid particles in liquid, which consists of connectingpipe, main pipe, filtration basket, flange, blind flange and fastener, etc. When the li

Technical Feature

  • Tianjin, China
  • 20000 Meters Per Month
  • L/C, T/T, D/P, Western Union, Paypal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~60

PRIMARY PARAMETERS

Model NO.
HD-b
Layers
Single
Type
Filter Elements
Structure
Singl, Multilayer, OEM Support
Products
Wedge Wire Screen Panel, Flat Wire Wrapped Screen
Wire Size
1.5*2 mm, 2.2*3.5 mm, 3*5 mm, 3.2*4 mm, etc
Length
1-5.8m, as Per Request
Certification
ISO 9001-2008
Sample
Available
Transport Package
Standard Export Packaging
Origin
China
Material
Metal
Usage
Liquid Filter, Solid Filter
Hole Shape
Round
Model
HD-L
Slot Size
0.2-6mm, OEM as Your Request
Open Area
as Per Request
Surface Treatment
Degreasing & Pickling, Polishing, etc
OEM
Support
Trademark
Huadong
Specification
upon request
HS Code
7306309000

DETAIL DESCRIPTION

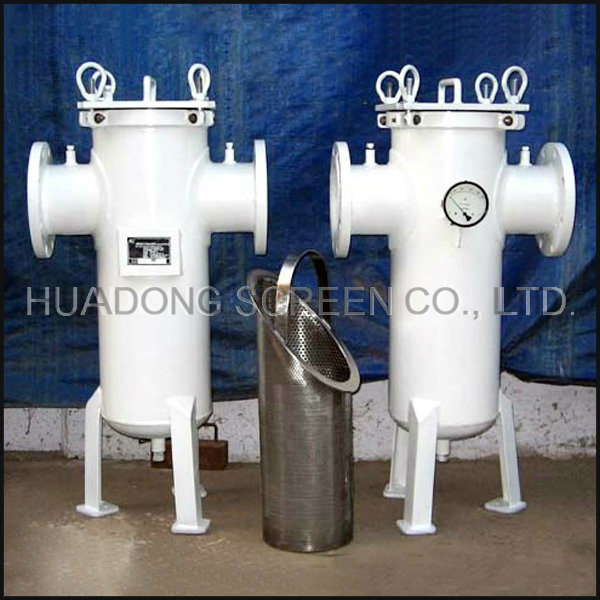

Wedge wire basket filter is a filter element for filter equipment, which is used to remove small amount of solid particles in liquid, which consists of connectingpipe, main pipe, filtration basket, flange, blind flange and fastener, etc. When the liquid flows into the filtration basket through main pipe, solid impurity particles are blocked in the filtration basket, but the clean liquid will flow through the basket and be discharged through sewage outfall. when it needs to be cleaned, unscrew the bottom plug of main pipe, discharge the liquid and disassemble he blind flange, and assembly it again after cleaning.so it is easy to operate and maintain.

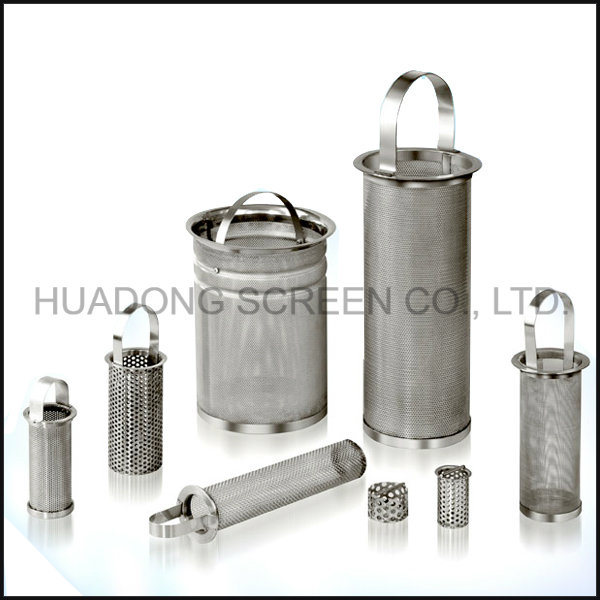

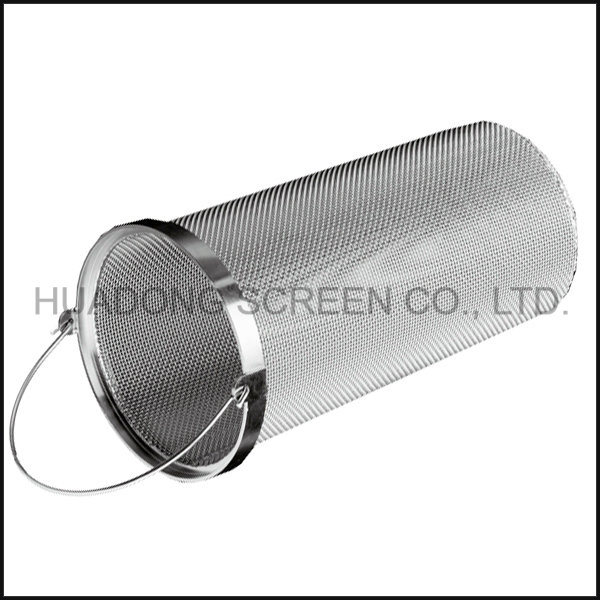

Stainless Steel Perforated Wire Mesh Basket Filter Element
Stainless Steel Perforated Wire Mesh Basket Filter Element
OEM support, welcome your drawings / specifications

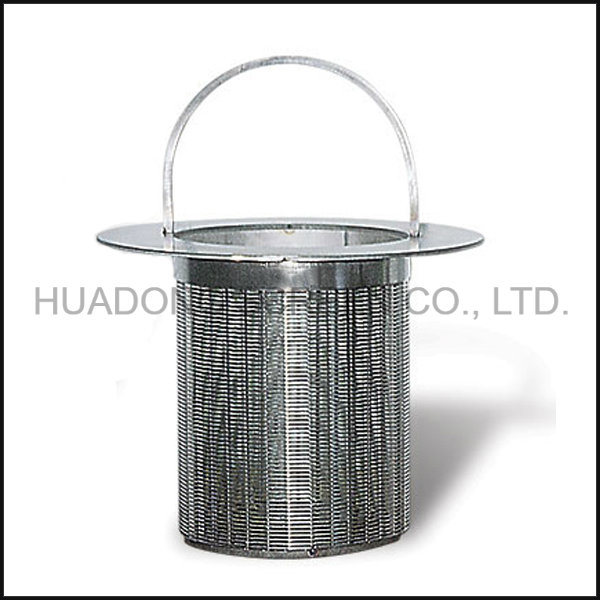

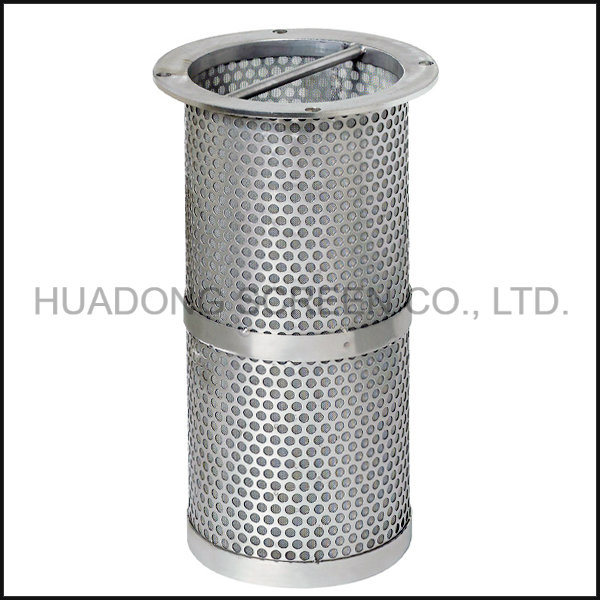

More Images of Stainless Steel Perforated Wire Mesh Basket Filter Element
Stainless Steel Perforated Wire Mesh Basket Filter ElementStainless Steel Perforated Wire Mesh Basket Filter ElementStainless Steel Perforated Wire Mesh Basket Filter ElementStainless Steel Perforated Wire Mesh Basket Filter Element
