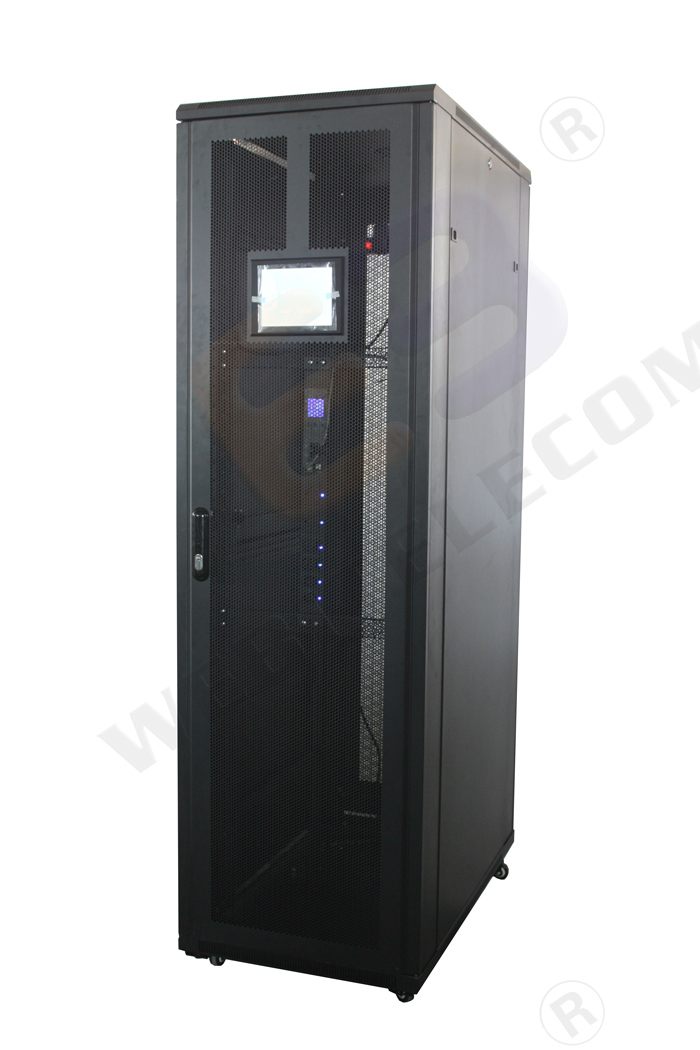

Smart Server Cabinet
*Front single perforated door with LCD screen panel and passcode electric lock.
Smart Cabinet Function:
Smart cabinet system provide the whole plan for cabinet equipment and computer room environment for centralized monitoring and centralized management.It provides the powerful guarantee for equipment to operate safely,reliably,stably and automatic.

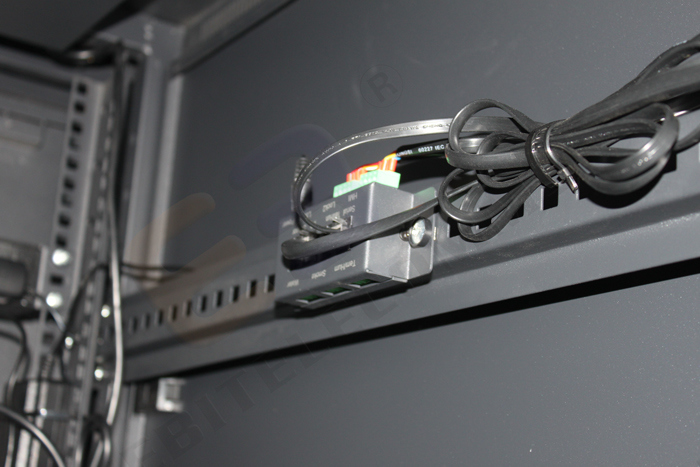

1)Temperature and humidity monitor
The temperature and humidity value of the environment can be monitored by the built-in temperature/humidity sensor and can be showed on the LCD.It also has alarming function of the out of limit.
2)Smog monitoring
It can monitor the fire state of environment real-time by the smog sensor. And it will alarm once abnormity happens.
3)Entrance guard management
It can monitor the cabinet door on/off status by the infrared sensor and the alarm can be set according to the user's need.
4)Automatic illumination of cabinet
When the door opened, the light in the cabinet will switch on.
5) LCD touch control
There is a 8-inch LCD in the front of the cabinet. It is used for setting and checking the parameter,conveniently and clearly.
Working voltage: DC12V
Communication mode: RS232/RS485 , TCP/IP: MODBUS
Baud rate: 9600bps
6) Cabinet lighting function
When the user open and close the cabinet door, the light in the front and rear will switch on automatic. It can prevent the
inconvenience of operating because of the weak light.
7) Green energy and low power dissipation
The smart monitoring system has low power consumption. The leading end of the whole system won't be exceeding 30W,,and can save more than 80% energy comparing with the traditional monitoring systems.
Doors
Front single mesh door with 8" LCD screen- electric code lock.
Back single/double mesh door with handle lock.
Removable side panel , locked side panel.
Accessories
Fan tray for airflow cooling.
4× position-adjustable 19 " mounting rail.
600KG capacity wheels and adjustable feet.
20 sets of extra M6 caged screws.
Cable entrance
Top - 1 * 400×50mm rectangle cable entrance
Bottom - 4* 350×50mm rectangle cable entrance
Can ask for more...
Package
Although Webitelecomms provide flat packing, Assembled pack suggested.
Webitelecomms neutral carton box packed
Plywood pallet for options
Application
· Telecommunication equipment
· CCTV
· Security and broadcasting
· Active equipment
· DATA CENTER
Sample show
OPERATION CONDITIONS
• Operation environment:
-Office,Home,Telecom room,etc
The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion)
• Must be protected against:
- Mechanical damage
- Improper handling
- A different usage than the cabinet is intended for
• Improper handling is especially:
- Overloading (maximum recommended load exceeding)
- Device installation that can influence negatively operation and function of the cabinet or the installed equipment
- Change of the construction or design of the cabinet
INSTALLATION OF THE CABINET
• To ensure the maximum recommended load, it is necessary to distribute the load equally.
• Place the cabinet on a flat floor and adjust any differences using the levelling feet.
• To avoid dust penetration in the case where cables lead through some of the cable openings, it may be sealed with a blanking panel with a brush or secured by a plastic frame (both can be purchased from us).
ENVIRONMENTAL PROTECTION
• All parts are made of recyclable materials and after decommissioning the cabinet, it must be disposed of according to relevant regulations.
CERTIFICATE AND CONFORMITY
• This product is fully in accordance with CE & RoHS.
