Solid Liquid Separation Belt Filter Press for Brewery Wastewater

Volute Sludge Dewatering Machine For Sludge oil treatment developed by HOLLY utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment, more

Technical Feature

  • Shanghai, China
  • 500
  • L/C, T/T, Western Union, Paypal, Money Gram
  • Physical Treatment
  • Volute Sludge Dewatering Machine
  • Industrial
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~60

PRIMARY PARAMETERS

Model NO.
HLDS
Trademark
Volute sludge dewatering machine
Specification
Volute sludge dewatering machine
Origin
Yixing City, Jiangsu China
HS Code
8421191000

DETAIL DESCRIPTION

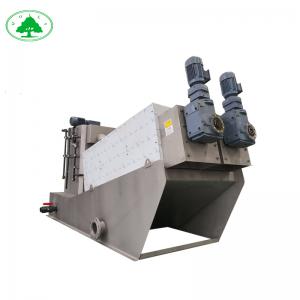

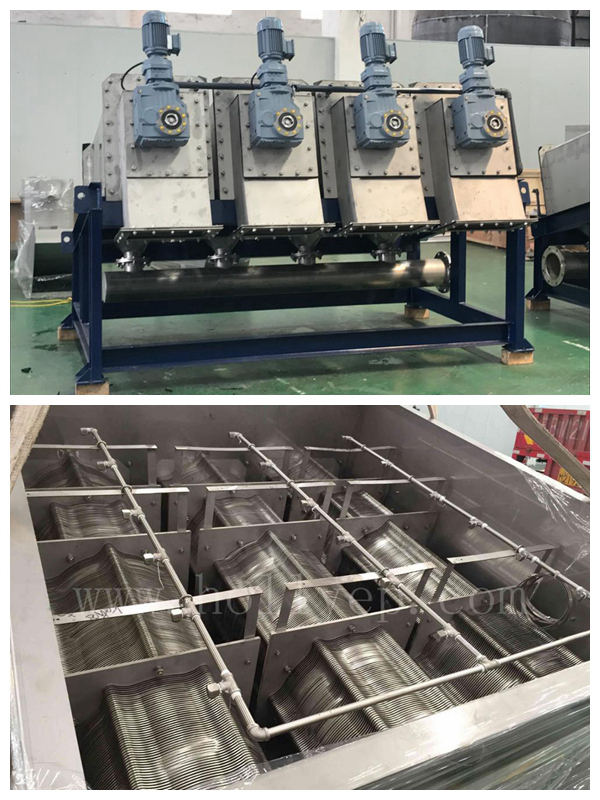

Volute Sludge Dewatering Machine For Sludge oil treatment developed by HOLLY utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment, more advanced than the traditional dewatering equipment which are easily blocked, unsuitable for low-concentrated sludge and oily sludge, of high consumption and difficult to operate, well eliminate these problems and are of higher efficiency and power saving.

Solid Liquid Separation Belt Filter Press for Brewery Wastewater



Technical Parameters

Selection reference
Model TypeStandard volume
(kg/h)
Sludge treatment capacity(m³/h)
LowconsistencyHighconsistency2000mg/h5000mg/h10000mg/h20000mg/h25000mg/h50000mg/h
HLDS131~6~10~3~1.2~1~0.5~0.4~0.2
HLDS132~12~20~6~2.4~3~1~0.8~0.4
HLDS201~9~15~4.5~1.8~1.5~0.75~0.6~0.3
HLDS202~18~30~9~3.6~3~1.5~1.2~0.6
HLDS301~30~50~15~6~5~2.5~2~1
HLDS302~60~100~30~12~10~5~4~2
HLDS303~90~150~45~18~15~7.5~6~3
HLDS402~120~200~60~24~20~10~8~4
HLDS403~120~300~90~36~30~15~12~6
HLDS404~240~400~120~48~40~20~16~8

Main Features

♦ Exclusive pre-thickening device enables a wide solid concentration ranging from 3000mg/l to 50000mg/l
♦ Fixed and moving plates replace filter cloth, self-cleaning, clog-free, easy to handle oily sludge
♦ Low running speed, low noise, low power consumption, 1 /8 of Belt Press and 1 /20 of centrifuge
♦ Less capital construction cost, more excellent working performance
♦ Fully automatic control, Easy operation and simple maintenance


Advantages

Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Low Running Cost
Power-use: Less than 5% of centrifuge.
Water-use: Less than 0.1% of belt filter press. Polymer: Saving around 60%.
Room: Saving more than 60% of the investment for dehydration room.
Non-clogging
Self-cleaning with small amount of water.
Suit for Oily Sludge
No secondary pollution
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small.
Only need a small amount of water for self-cleaning, no secondary water pollution.
Sludge runs at a slow operating condition. The smell does not spread.

Solid Liquid Separation Belt Filter Press for Brewery Wastewater
Solid Liquid Separation Belt Filter Press for Brewery Wastewater
Solid Liquid Separation Belt Filter Press for Brewery Wastewater



Our Service

Pre-Sales Service

* Free for design.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas.


Certificate

Solid Liquid Separation Belt Filter Press for Brewery Wastewater




About Us

Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.

Solid Liquid Separation Belt Filter Press for Brewery Wastewater
