Description

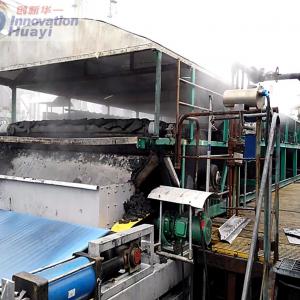

Impelled by a vacuum pump, the vacuum belt filter achieves remarkable effect in liquid and solid separation. The horizontal filtration equipment is able to continuously complete filtration, washing, dewatering, discharging and filter cloth cleaning. This belt filter system has been widely used for separating liquid from solid in metallurgies, mining, chemical engineering, papermaking, food manufacture, pharmaceuticals and environmental protection. Particularly, it receives high praise in FGD (Flue Gas Desulfurization).
Features
1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.
3. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
4. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.
Specifications
Shipment&Installation
Company information
Shandong Innovation Huayi Environmental Engineering Co, Ltd. It's a new and high-tech enterprise specialized in environmental protection equipment, which is innovated development, manufacturing , technological design, technical services. Our company brought in advanced technology and processing from VOITH, Finland Parker etc international class enterprise. We specialized in sewage disposal environmental protection equipment, which contains Dissolved air flotation machine, domestic sewage treatment equipment, industrial waste water treatment, sludge dewatering machine series, waste incinerator, pulp making line and paper machinery and many , etc. The Products was sold well throughout 29 cities, exported to many countries such as Malaysia, Vietnam, Pakistan, Mexico, Iran, Indonesia, Venezuela etc.

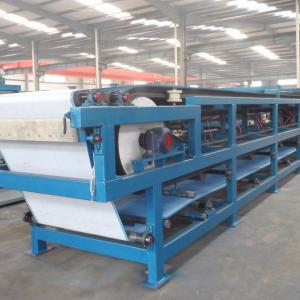

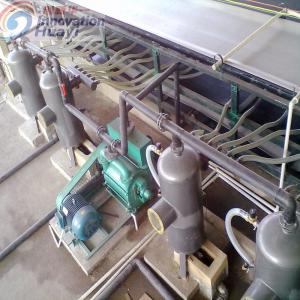

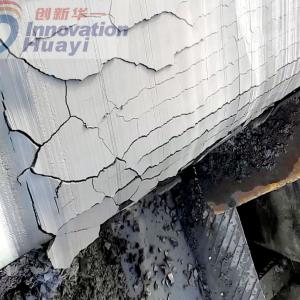

Impelled by a vacuum pump, the vacuum belt filter achieves remarkable effect in liquid and solid separation. The horizontal filtration equipment is able to continuously complete filtration, washing, dewatering, discharging and filter cloth cleaning. This belt filter system has been widely used for separating liquid from solid in metallurgies, mining, chemical engineering, papermaking, food manufacture, pharmaceuticals and environmental protection. Particularly, it receives high praise in FGD (Flue Gas Desulfurization).
Features
1. Modularized design is for easy installation and transportation.
2. High auto degrees: Consecutive auto feeding, filtering, washing, dewatering, discharging, cloth cleaning improves production efficiency.
3. Convenient filter technology: cake thickness, water vol., counter current decantation stages, vacuum degree, filter speed can be adjusted for optimistic effect.
4. Fine decantation effect: even and thorough multi-stage advection or counter current decantation makes collection and reuse of mother liquor and washing liquor separately.

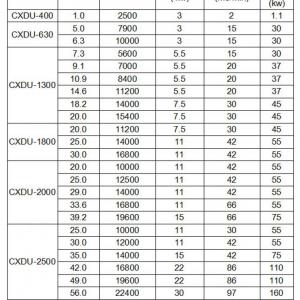

Specifications
| Model | Filter area (m2) | Filter length (mm) | Main motor power ( kw) | Vacuum consumption (m3/min) | Vacuum box power (kw) |
| CXDU-400 | 1.0 | 2500 | 3 | 2 | 1.1 |
| CXDU-630 | 5.0 | 7900 | 3 | 15 | 30 |
| 6.3 | 10000 | 3 | 15 | 30 | |
| CXDU-1300 | 7.3 | 5600 | 5.5 | 15 | 30 |
| 9.1 | 7000 | 5.5 | 20 | 37 | |
| 10.9 | 8400 | 5.5 | 20 | 37 | |
| 14.6 | 11200 | 5.5 | 20 | 37 | |
| 18.2 | 14000 | 7.5 | 30 | 45 | |
| 20.0 | 15400 | 7.5 | 30 | 45 | |
| CXDU-1800 | 20.0 | 11200 | 7.5 | 30 | 45 |
| 25.0 | 14000 | 11 | 42 | 55 | |
| 30.0 | 16800 | 11 | 42 | 55 | |
| CXDU-2000 | 20.0 | 10000 | 11 | 42 | 55 |
| 25.0 | 12500 | 11 | 42 | 55 | |
| 29.0 | 14000 | 11 | 42 | 55 | |
| 33.6 | 16800 | 11 | 66 | 55 | |
| 39.2 | 19600 | 15 | 66 | 75 | |
| CXDU-2500 | 25.0 | 10000 | 11 | 30 | 55 |
| 30.0 | 12000 | 11 | 42 | 55 | |
| 35.0 | 14000 | 15 | 42 | 75 | |
| 42.0 | 16800 | 22 | 86 | 110 | |
| 49.0 | 19600 | 22 | 86 | 110 | |
| 56.0 | 22400 | 30 | 97 | 160 | |
| CXDU-3150 | 61.7 | 19600 | 30 | 100 | |
| 70.6 | 22400 | 30 | 123 | ||
| 79.4 | 25200 | 30 | 141 |

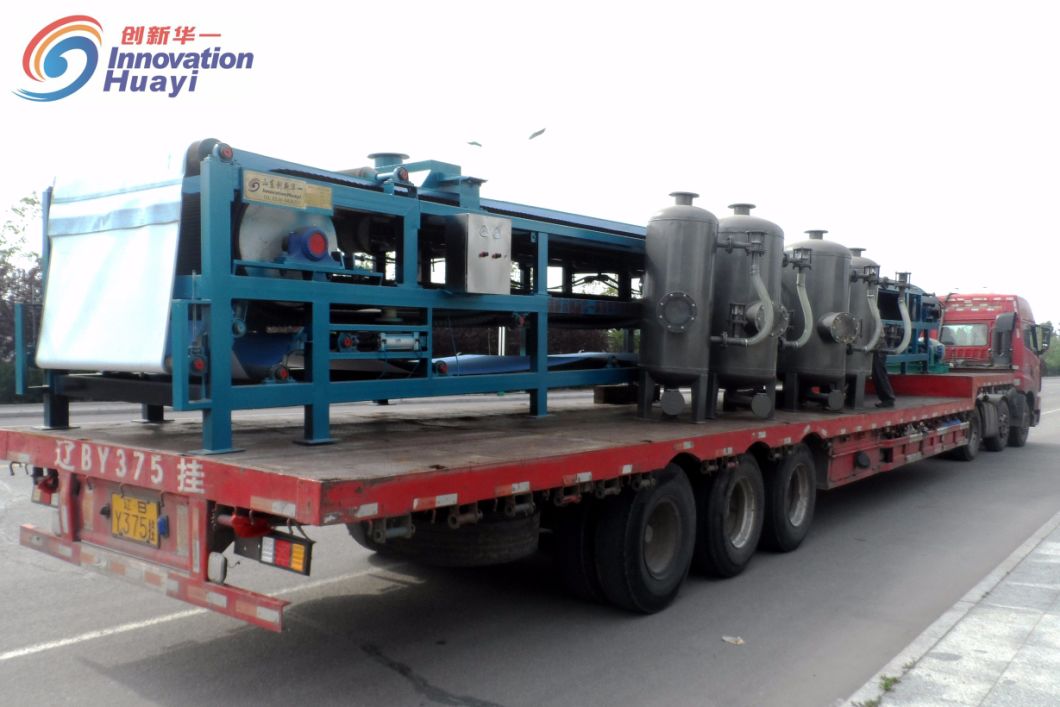

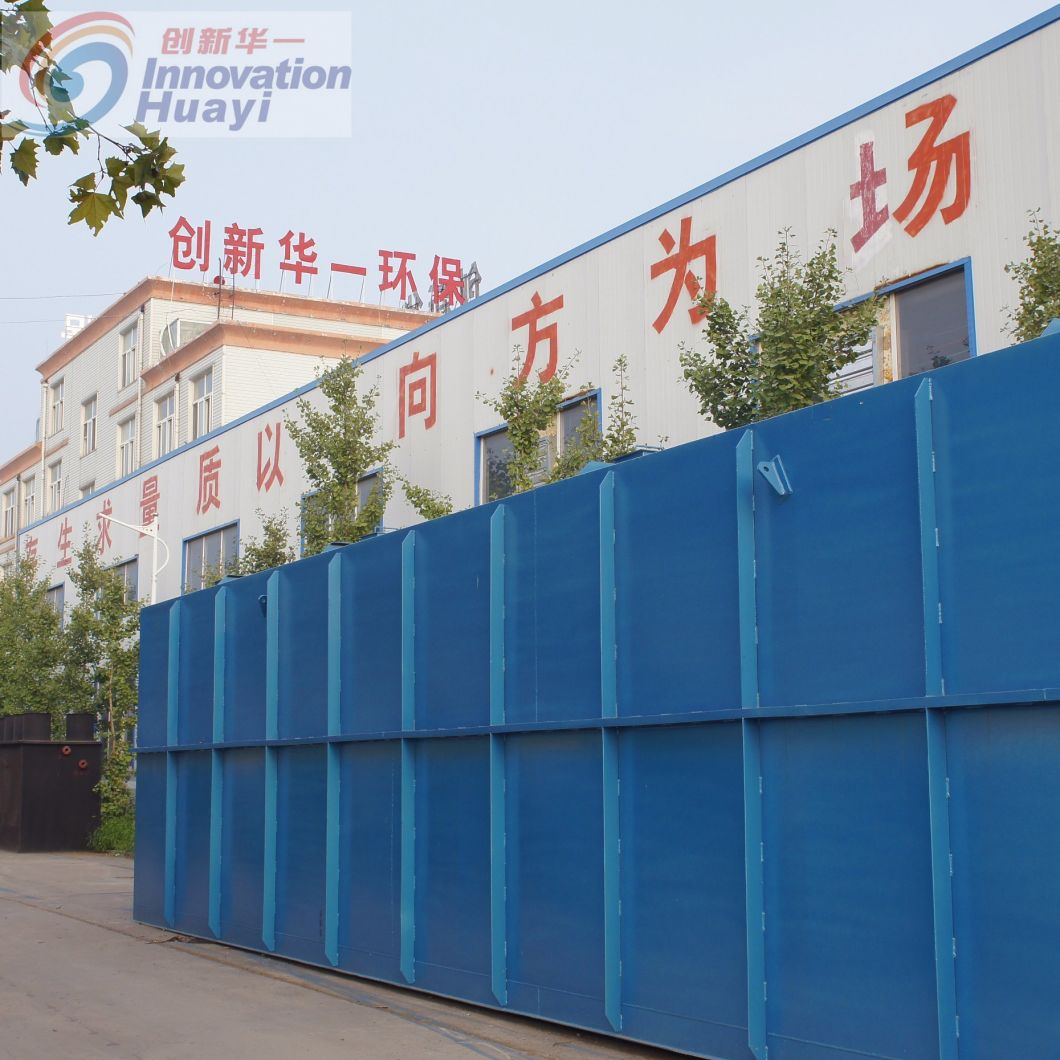

Shipment&Installation

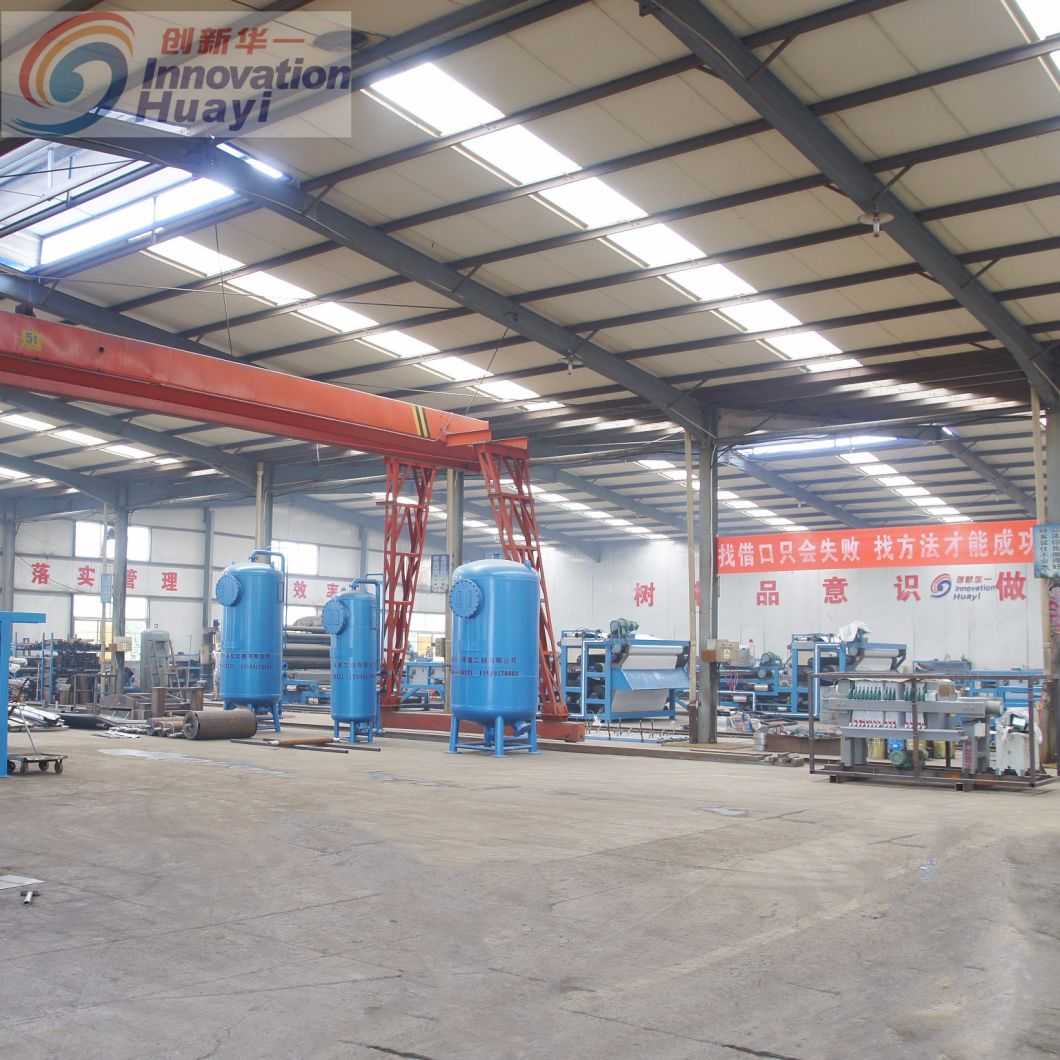

Company information
Shandong Innovation Huayi Environmental Engineering Co, Ltd. It's a new and high-tech enterprise specialized in environmental protection equipment, which is innovated development, manufacturing , technological design, technical services. Our company brought in advanced technology and processing from VOITH, Finland Parker etc international class enterprise. We specialized in sewage disposal environmental protection equipment, which contains Dissolved air flotation machine, domestic sewage treatment equipment, industrial waste water treatment, sludge dewatering machine series, waste incinerator, pulp making line and paper machinery and many , etc. The Products was sold well throughout 29 cities, exported to many countries such as Malaysia, Vietnam, Pakistan, Mexico, Iran, Indonesia, Venezuela etc.
