Full Automatic Pocket Facial Tissue Paper Products Making Machine
Section A: Brief description of Facial Tissue Paper Machine
New design embossed facial tissue box paper machine is cut by the knife roll after cutting the base paper,fold into a chain of rectangular croww tissues. this embossed facial tissue box paper machine adopts vacuum suction,automatic counting function stack,with a high speed,neatly folded,and easy operation.
The embossed facial tissue box paper machine is suitable for automatic boxing of facial tissues, square tissues,pocket tissues,cotton tissues etc.
Section B: Function and Character of Facial Tissue Paper Machine
1.Folding type: V type folding,paper in upper and lower positon are jointed and folded with auto counting unit and output in stack, folding with vcacuum adsorption.
2.Paper is conducted by spira cutting by sections with convenient adjustment in cutting tool.
3.Slitting width can be adjustable while products are in trim.
4.Unwinding of jumbo roll is pushed an fed by the flat belt ,equipped with stepless speed regulator to adjust tension of unwinding.
5.Adopt PLC and frequency speed regulator control.
6.As Per costumer's requirement,it can be equipped with embossing unit ,color printing unit or chromatic gluing unit.
Section C: Advantage of Facial Tissue Paper Machine
1.Suitable for automatic packing and sealing of all kinds of facial tissue, tissue in bags.
2.Integrated electrical automation production, operation is simple.
3.Key working parts use stainless steel material.
4.Advanced PLC and screen monitor for easy and accurate control and adjustment.
5.Adjustable water cooled dual temperature control enable different bag material choice and excellent sealing effect.
6.Full machine speed is more faster,more saving artificial,reducing the cost of production,and improving the efficiency of production.
7.The machine has reasonable structure,stable performance,hard materials,durable,the main parts of controlling is importing high quality component,and the rest of parts if the national standard high quality parts.
Section D:The basic techinical parameter of Facial Tissue Paper Machine
| Products size | 200×200±2mm |
| Base width | 2200mm |
| Dimensions | 5150*1300*1920mm |
| Paper diameter | Φ1100mm(other sizes are available) |
| Paper core inner diamater | 76.2mm |
| Speed | 0-80m/min |
| Embossing device | Steel to steel embossing |
| Embossing roller end | Felt roll,wool roller,rubber ruooler,steel roller |
| Controller | Electromagnetic speed |
| Blank lines | Steel on steel,the independent tregulator |
| Vacuum system | 7.5KW |
| Host power | 3KW |
| Use of power | Frequency control,electromagnetic governor |

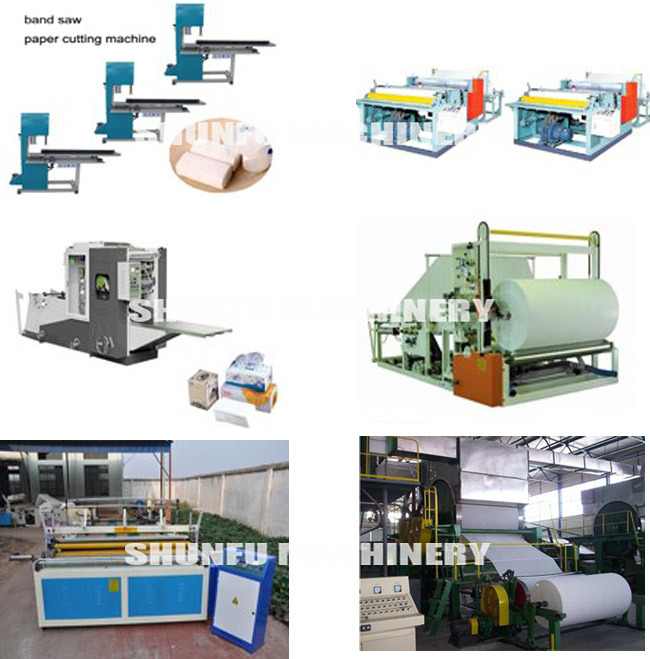

Section E:Related productions of Facial Tissue Paper Machine
Section F:Packing & Sinpping
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details!
We can design the machine according to your request.
