15W Integrated solar led street light led garden light with high pixel camera
Product Overview
1. The design of the integrated solar street light/garden light absorbs the inspiration and energy from the universe, combines today's best green energy portfolio (solar energy, semiconductor LED light source,
dedicated battery for street lights).

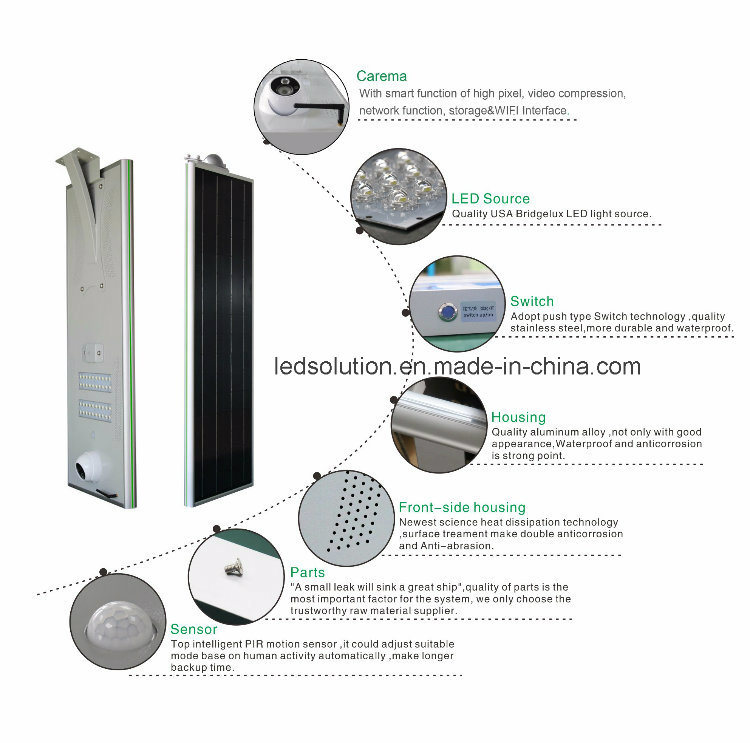

2. It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., combines with the simple integrated structure design, perfect implementation of low power consumption but high brightness (average 5w power consumption is 100w incandescent lamp's illumination), connect with camera (1,100,000 pixel, Video Compression, Network function, storage&WIFI Interface), long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
All the advantages above make it the best contributed and creative patent product of our company.
Product Benefits
Technical Characteristics
Item Type | LS-ISSCA-215 |
Light Power | 15W |
Solar panel Max | 60W |
Solar panel light time | 25 yrs |
Battery type (Lithium) | Solar energy Lithium battery 12V 21AH |
Led max power | 15W |
Led chip brand | USA Bridgelux |
Lumen (lm) | 1500-1650 |
Lighting Viewing angle | 120 degree |
Charging time (by sun) | effective sunshine10 hours |
Discharge time | trigger State 15 hours |
CCT | 6500-7000K |
Mounting height | 4-5m |
Lamp main material | Aluminum alloy |
Warranty period | 3 yrs |
Camera Specifications
Pixel: 1,100,000 pixel
Video Compression: Adopt H.264 Main Profile and Baseline profile compression algorithm, Image is more clear, less code flow, be easy to network transmission, and storage space save.
Network function:
1,Support the double stream monitor at the same time;
2,Support mobile phone to see;
3,Support 6 users monitor the IP Camera at the same time;
4,Build-in WEB SERVER, Support IE browse and parameter setting, use one port for data transmitting, making it easy for users to network Settings;
5,Support 802.11b/g/n agreement,can be built-in wifi module, Flexible forming wireless monitoring environment;
6,Supports four regional Motion Detection and alarm linkage.
Storage: Biggest support 32G TF card store, the default with 16G TF card.
Interface: WIFI.

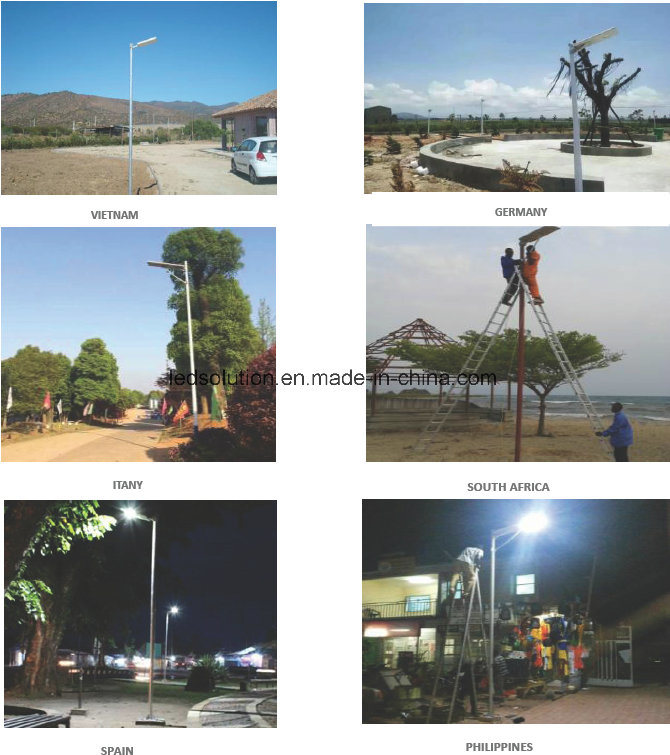

Application range
Crosswalk, Roadway
Garden, Residence, Courtyard
Areas with no electrical supply
Mine, Parking lot
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
5 years warranty
