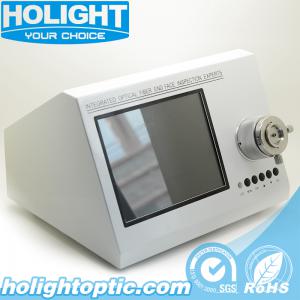

PRODUCT NAME : 200x 400x Optical Fiber Inspection scope
Description
Our Fiber Optic Inspection Scope can enlarge fiber end by 200x,400x or 80x magnification. Baseline is according with end face diameter measured on 8-inch screen. Then enlarged picture of fiber end face is showed on display through video signal. Finally fiber end defects can be easily found at a glance on the display. It starts work when power on. No cables between display and microscope makes it easy to manipulate, fast to work, and most of all greatly enhances work efficiency.
This Fiber Inspection Scope can quickly check blemish, scratch and chipping etc. defects on fiber jumper and fiber ferrule. Operators just need to visually inspect fiber end on LCD screen instead of directly view on it. Therefore no harm on human eyes. As well known, harm is made by laser in fiber when operators directly view fiber end.
Photograph Image save Image delete
X/Y axis adjustable
External monitor connection External signal input
External USB signal input External AV signal input Brightness adjustable
Contrast adjustable Saturation adjustable Clock
External SD card connection
Technical parameters and specifications
Remark: "Y" indicates function enabled; "-" indicates function disabled

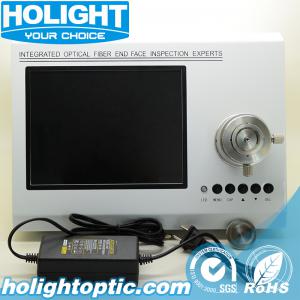

Keys Feature Introduction:
1. LED : power supply indicator
2. Menu : menu or move
3. CAP : image save
4. : increase
5. : decrease
6. DEL : delete
7. Power : Power on/off
8. DC 12V : DC 12V Power interface
9. AVOUT : output video singal to other devices
10. SWITCH : switch internal signal or external input signal
11. AV IN : USB interface of external signal input
12. AVIN : input interface of external signal
13. SD : SD Card Slot
Work Instruction
1. Adjustable definition mode of display window
a. Press "MENU" to enter display parameters setting interface. There are brightness, contrast, saturation, default and exit can be selected;
b. Press "MENU" to move cursor on the parameter to be adjusted, then press or to start modification. When adjustment completes, press "MENU" to move cursor on "EXIT", finally press to save and quit. Note to restore factory settings, press "MENU" to move cursor on "DEFAULT", then press to save and quit.
2. Image save mode
Press "CAP" to save image into SD card. Note SD card should be inserted well into slot before using image save mode. HT-7000 series support hot swap
3. Inspection mode
Connect uninspected product into inspection port, then adjust focus ring to get the most clear picture on LCD display. Fiber end can be easily inspected by naked eyes from LCD display.
Description
Our Fiber Optic Inspection Scope can enlarge fiber end by 200x,400x or 80x magnification. Baseline is according with end face diameter measured on 8-inch screen. Then enlarged picture of fiber end face is showed on display through video signal. Finally fiber end defects can be easily found at a glance on the display. It starts work when power on. No cables between display and microscope makes it easy to manipulate, fast to work, and most of all greatly enhances work efficiency.
This Fiber Inspection Scope can quickly check blemish, scratch and chipping etc. defects on fiber jumper and fiber ferrule. Operators just need to visually inspect fiber end on LCD screen instead of directly view on it. Therefore no harm on human eyes. As well known, harm is made by laser in fiber when operators directly view fiber end.
Function and feature
Photograph Image save Image delete
X/Y axis adjustable
External monitor connection External signal input
External USB signal input External AV signal input Brightness adjustable
Contrast adjustable Saturation adjustable Clock
External SD card connection
Technical parameters and specifications
| model | HOL-7000C |
| magnification | 50X/80X/200X/400X |
| X/Y axis adjustable | Y |
| Image input/output format | Analog PAL |
| CCD resolution | 1/3"420 lines |
| Image output port | RCA |
| Image input port | RCA |
| Focus mode | Manual |
| Image analysis | - |
| Power consumption | 3W |
| Operating temperature | +10ºC ~ +50ºC |
| Storage temperature | 0ºC ~ +55ºC |
| Input port | Y |
| Display | 8"TFT 800*600 PIX |
| Power supply | DC12 |
| Size | 288mm*230mm*190mm |
| Weight | 4KG |
Remark: "Y" indicates function enabled; "-" indicates function disabled
Keys Feature Introduction:
1. LED : power supply indicator
2. Menu : menu or move
3. CAP : image save
4. : increase
5. : decrease
6. DEL : delete
7. Power : Power on/off
8. DC 12V : DC 12V Power interface
9. AVOUT : output video singal to other devices
10. SWITCH : switch internal signal or external input signal
11. AV IN : USB interface of external signal input
12. AVIN : input interface of external signal
13. SD : SD Card Slot
Work Instruction
1. Adjustable definition mode of display window
a. Press "MENU" to enter display parameters setting interface. There are brightness, contrast, saturation, default and exit can be selected;
b. Press "MENU" to move cursor on the parameter to be adjusted, then press or to start modification. When adjustment completes, press "MENU" to move cursor on "EXIT", finally press to save and quit. Note to restore factory settings, press "MENU" to move cursor on "DEFAULT", then press to save and quit.
2. Image save mode
Press "CAP" to save image into SD card. Note SD card should be inserted well into slot before using image save mode. HT-7000 series support hot swap
3. Inspection mode
Connect uninspected product into inspection port, then adjust focus ring to get the most clear picture on LCD display. Fiber end can be easily inspected by naked eyes from LCD display.
