10000j Capacitor Discharge Welder Servo Pressurize Machinery

10000J Capacitor Discharge Welder Servo Pressurize Machinery ParameterItemParameterRated Capacity                 20 KVAPower Supply380V/ 3 phase /50HZPrimary Current80ADuty Cycle 50%Secondary Empty Voltage 10.5~14 VSecondary Voltage Adjust

Technical Feature

  • 1 Piece
  • Guangzhou, China
  • 20 Million USD/Year
  • L/C, T/T
  • Water Cooling
  • Manual
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
DR-10000-14002
Power Supply
380/ 3phase /50Hz
Primary Current
80
Duty Cycle
50%
Secondary Empty Voltage
10.5~14V
Secondary Voltage Adjustment Level
2
Throat Depth
270mm
Electrode Arm Gap
400mm
Cylinder Stroke
150mm
Max Working Pressure
24kn
Trademark
HERON
Transport Package
Wooden Case
Specification
CE
Origin
Guangzhou, China
HS Code
8515219900

DETAIL DESCRIPTION

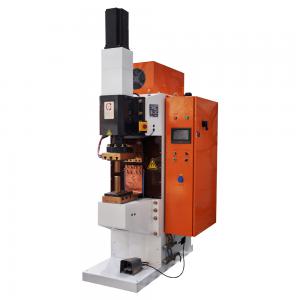

10000J Capacitor Discharge Welder Servo Pressurize Machinery

10000j Capacitor Discharge Welder Servo Pressurize Machinery

Parameter
ItemParameter
Rated Capacity                 20 KVA
Power Supply380V/ 3 phase /50HZ
Primary Current80A
Duty Cycle 50%
Secondary Empty Voltage 10.5~14 V
Secondary Voltage Adjustment Level2
Throat Depth270mm
Electrode Arm Gap 400mm
Cylinder Stroke 150mm
Max Working Pressure24KN
Cooling Water Consumption  8 L/MIN
Primary Cable 1616MM2
Max Short Cut Current 80000A


Welding Machine Features
1. Use servo motor to drive the electrode downward,instead of standard air cylinder.
2. By using the servo pressurized welding way, the welding pressure is more stable. And it can monitor the pressure, displacement, indentation data.
3.With medium-voltage capacitors for charging and discharging, has shorten the welding time, improved the welding effect. Also can reduce the demand of capacity. What's more,this welder occupy less space.

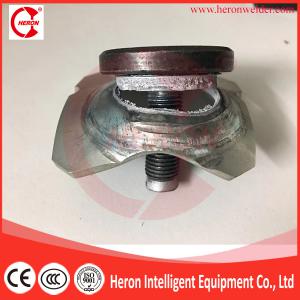

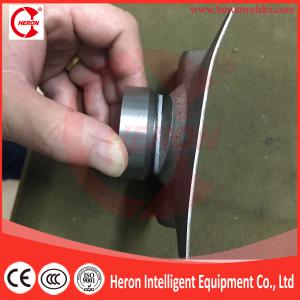

Welding effection
10000j Capacitor Discharge Welder Servo Pressurize Machinery
10000j Capacitor Discharge Welder Servo Pressurize Machinery
10000j Capacitor Discharge Welder Servo Pressurize Machinery

Company Introduction
Heron's products have a wide application, which include automotive manufacturing industry, auto parts manufacturing industry, low voltage electrical industry, compressor manufacturing industry, household appliance manufacturing industry and motor manufacturing industry.

Besides, Heron also becomes a long-term supplier for many famous enterprises, such as Volkswagen, Benteler, Johnson Control, Emerson, Siemens, and etc. In the meanwhile, Heron's products have been exported to overseas market, such as the United States, Canada, France, Italy, Poland, Brazil, Mexico, India, Egypt, Saudi Arabia and etc.
Moreover, Heron also built sales and service network in United States,Canada and Turkey. In this way, Heron has gradually become an international brand.
Heron is looking forward to cooperating with you. Heron will repay your trust with high quality products and outstanding service.

Heron's assembly workshop covers an area of 5,000 square meters.  In the workshop, we have more than 20 years designing and manufacturing experience of manual and robotic integrated guns.
Heron also operates the automation department, with the design and integrated work station for custom applications.

10000j Capacitor Discharge Welder Servo Pressurize Machinery


FAQ
1.What's the trade terms?
A: FOB, EX-Work, CRF

2.What's the payment term?
A: a. T/T 30% as deposit, 70% should be paid before delivery.
   b. L/C at sight

3. What's the delivery time?
A: 2-3 months after received 30% deposit.

4. What's the package way?
A: Wooden case

5. Which shipment port?
A: Guangzhou or Huangpu

6.How long is the guarantee?
A: For one year after customer received the machine. (It's not including the comsumables)
