Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor

product description:The Liquid integrated ultrasonic level transmitter for irrigation is mounted on top of the vessel. Under thecontrol of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The soundwave is reflected by th

Technical Feature

  • Shanghai, China
  • 50000peic
  • T/T, D/P, Western Union, Paypal, Money Gram
  • Ultrasonic Level
  • Contactless
  • Analog Type
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$156~934

PRIMARY PARAMETERS

Model NO.
SPE-ES
IP Rating
IP65
Certification
CE
Customized
Customized
Output Signal
4-20mA/Hart
Accuracy
0.5%
Trademark
SUPMEA
Transport Package
Standard Carton
Origin
Hangzhou Zhejiang China
HS Code
9026100000

DETAIL DESCRIPTION

Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor

product description:

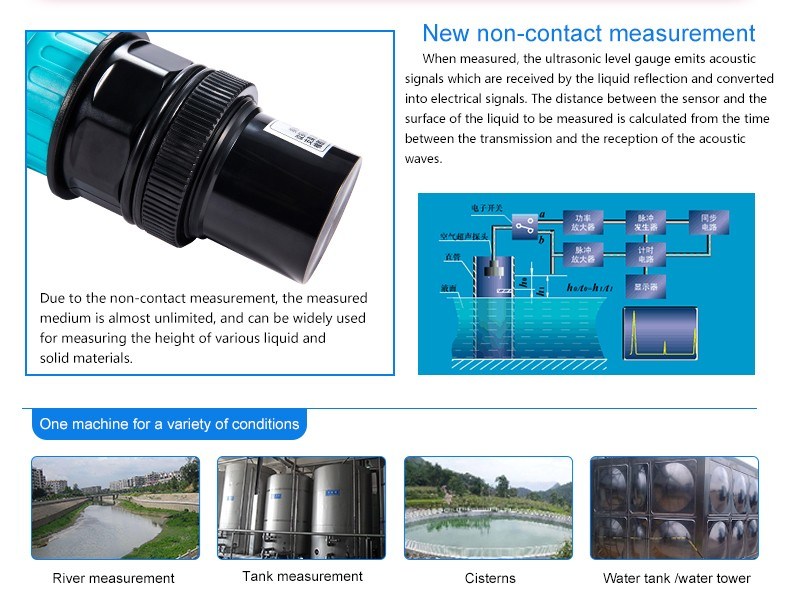

The Liquid integrated ultrasonic level transmitter for irrigation is mounted on top of the vessel. Under the
control of the electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound
wave is reflected by the surface of medium, a part of reflection echo is received by the probe and converted
into electrical signal. From the emission of the ultrasonic wave to the new reception,the time is direct
proportion to the distance from the probe to the measured medium. The electronic unit detects the time
and calculates out the easured distance according to the known sound velocity. Use subtraction to obtain
the value of medium position. It is widely used in open pipe, oil tank, pump station, water tower, dam, open
channel, difference between levels etc.

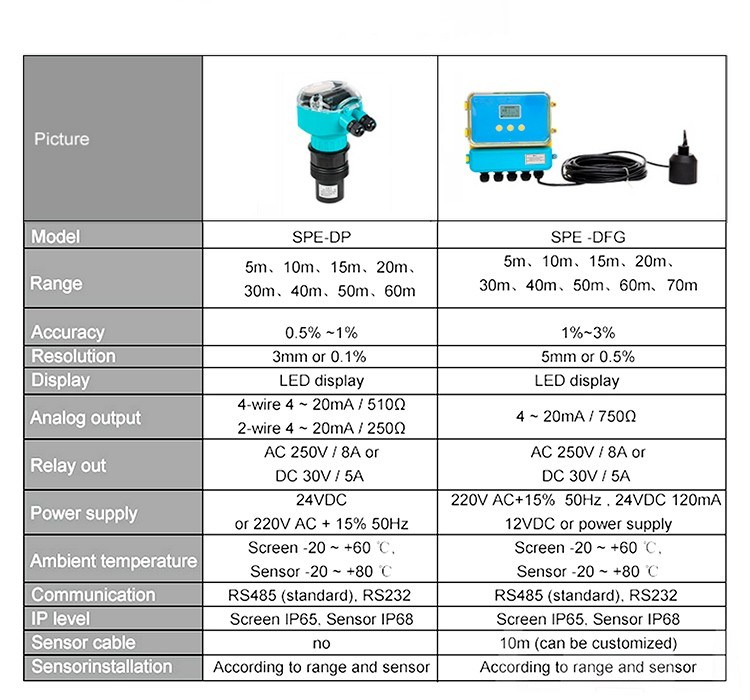

Parameter:
Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor
Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor
Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor


Professional engineers to provide one-on-one service

Response time: Online chatting  within 1 minute
                          Inquiry within 10 minutes

After-sales service: 2-years warranty, free replacement for non-human-oriented operation during
the warranty period



Overseas Service Center Address:

Singapore :
2 VENTURE  DRIVE #11-30 VISION  EXCHANGE SINGAPORE
Germany:
Göttinger Straße.59 30449 Hannover Niedersachsen Deutschland
Malaysia:
No 3, Jalan Emas Jaya 1, Taman Industries Emas jaya Tongkang Pecah , Batu Pahat
India:
Plot No.22, Sri Venkateswara Nagar, First Street,  Kottivakkam, Chennai 600041. Tamilnadu, India.


After-sales service:
Contact us via Online chatting, inquiry, email or phone    call(+8613777833374)


EXhibitions:

Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor

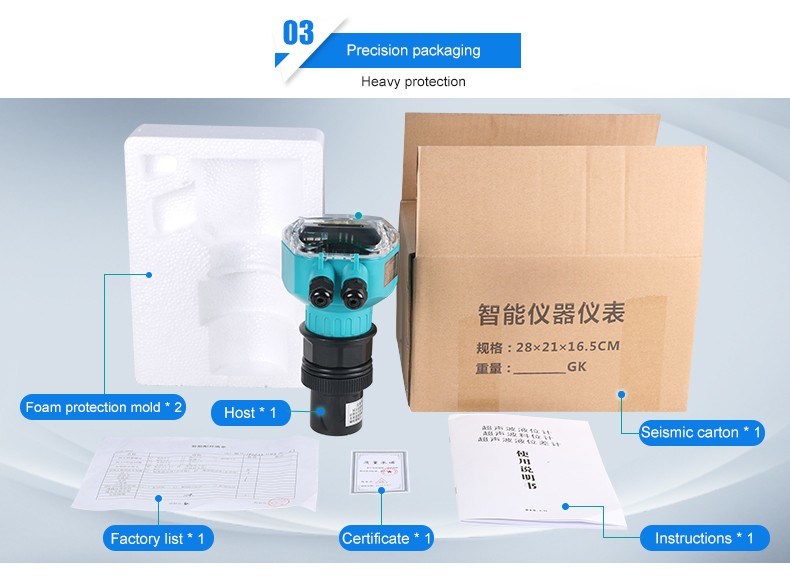

Packing & Delivery:

Lead time : Most products within 7 working days(if have stock, could be sent same day), customized
                    product would be longer

Delivery process:
1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 2-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance
Wireless Ultrasonic Water Level Sensor Ultrasonic Tank Level Monitor
