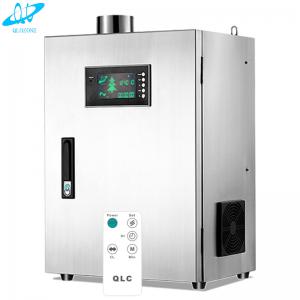

Commercial Deodorizer & Air Purifier

QLC Series products are the most advanced ozone geenrator for commercial kitchen oil, odor removal and pipe system air treatment. It has wide applications in the fields of commercial kitchens, poultry farms, pig farms, food processing workshop, cosmetic disinfection, mushroom cultivation and other air treatments. It has been largely exported to Europe, US, Australia, South Asia markets, etc. and many Mcdonald's and Kentucky Fried Chicken use this model for kitchen exhaust duct to eliminate odour and grease generated in cooking process.

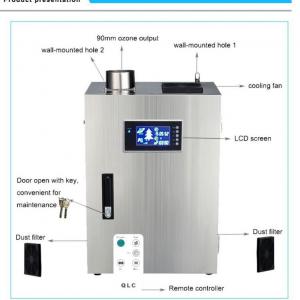

Wall-mounted installation, very easy operation. but make sure that machine's working condition is dry & clean, ventilated, especlally stands away from grease. A horse is needed to conduct ozone from device to exhaust duct.

Maintence: As fed by ambient air, when doing maintenmance, please clean filters, fans and ceramic plates. Or it will affect the performance. So to reduce costand pre-long lifesapn of ozone generator, please check and clean it regularly.

Though an electrostatic filter can remove a proportion of odours generated in the cooking, some odours still can not be eliminated. So, the remaining odours need to be treated by a strong oxidizer. Ozone, as a well-known powerful disinfectant, will effectively mitigate the odours. Below are the benefits of the ozone generator for kitchen exhaust system:

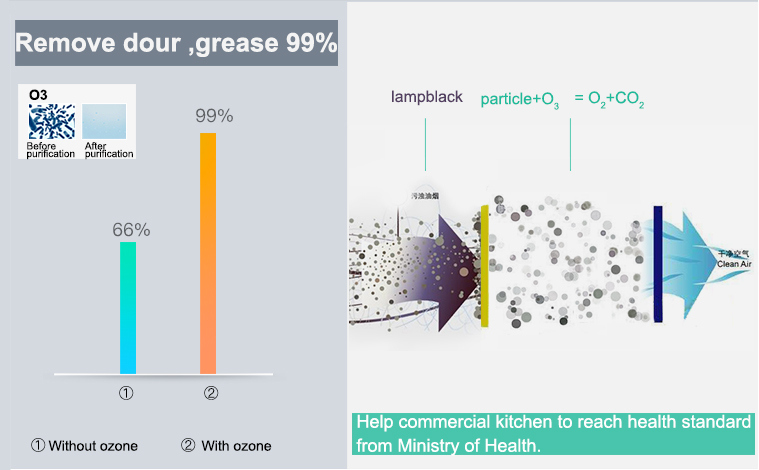

1.Reduction of Oil and Grease: this ozone unit reduces oil and grease in the kitchen exhaust systems keeping the exhaust duct works clean and odour free. Ozone breaks down the oil and grease invapor form to carbon dioxide, water and a small amount of polymerized grease which leaves the exhaust duct works in the form of a dry powder. Polymerized grease is bio degradable and poses no health hazard.

2.Reduction of Micro organisms: in all kind of ventilation systems there are bacteria's, and other micro organisms. Ozone generator eliminates all types of micro organisms. In this way ozone prevents the built up of bacteria's and other microorganisms fromentering the kitchen.

3.Reduction of cooking odour: all types of cooking create odors. The odors are exhausted through the duct works in a gaseous form and do not get caught in a conventional filters of the kitchen hoods. Ozone reduces the odors to a minimum if not eliminating them all together by oxidation. This prevents food smell from reentering the HVAC system through the fresh air intakes of near by buildings and offices.

4.Fire protection and duct cleaning: the ozone injected in the kitchen hoods oxidizes the oil and grease in the vapor form preventing them from condensing on the cooler ductworks down stream of the exhaust system preventing the build up of oil and grease in the kitchens exhaust systems. This reduces considerably the risk of fire in the ductworks and increases the life time of the ventilation system. The number of duct cleaning or sweeping can significantly be reduced.

The ozone generator's outlet is connected to exhaust duct after exhaust hood. For ozone reaction, it takes a minimum time to contact with odours and destroy them. And, two seconds is the ideal timing. The ozone unit can be installed without an electrostatic filter if the cooking only generates grease mist (no smoke), because ozone will ozonize and break down greases and odours.


Packing and Shipping

Shipping:

♦Sample sent by TNT,FEDEX,DHL,UPS,EMS,ARAMEX,etc.,door to door service;

♦Batch order:shipped by FCL sea way or by air;

♦Customer can also arrange shipment yourself;

♦Express normally takes 3-9 days;sea way takes 25-35  days.

♦Accept OEM & ODM order,but there's a MOQ request,details should be negotiated.

♦Logo can be printed.

♦Ozone generator matched equipments can be provided.

♦Solution for air & water treatment provided.

♦Sample is available,more quantity ,more discount .

♦Technical guidance is available.

♦After sales service available.
