Water Filtration Unit Microfiltration Equipment

Water Filtration Unit Microfiltration EquipmentHow Water Filtration Unit Microfiltration Equipment WorksThe Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicr

Technical Feature

  • Ningbo, China
  • 1t/Hour
  • L/C, T/T
  • O
  • 99.5%
  • Industry
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~6

PRIMARY PARAMETERS

Model NO.
WT-RO-1T
Low Pressure Piping
Ss304
High Pressure Piping
Ss304
Name
Microfiltration Equipment
Trademark
bowei
Transport Package
Wooden Case
Specification
2000LPH
Origin
Wenzhou
HS Code
842121999

DETAIL DESCRIPTION

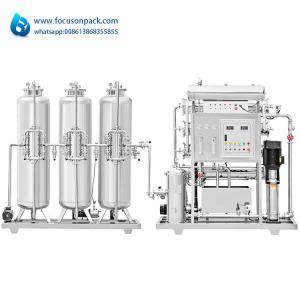

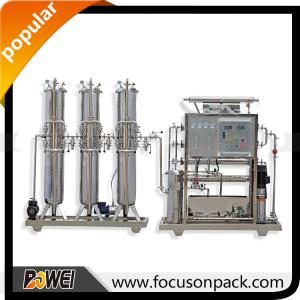

Water Filtration Unit Microfiltration Equipment

How Water Filtration Unit Microfiltration Equipment Works
The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water.


Water Filtration Unit Microfiltration Equipment Technical route and flow diagram instructions
The technical route is as following.
Raw tank-->Booster pump -->Quartz sand filter-->activated carbon filter--->Softener-->Sediment filter-->High pressure pump-->RO desalination device-->Permeate tank

Water Filtration Unit Microfiltration Equipment Features
Materials of Construction
Skid Frame: SS304
Membrane Elements:Hydraulics ESPA2-4040
Membrane Housings: SS304
Low pressure piping: SS304
High pressure piping: SS304
Pump and Motor
Pump: 304SS vertical multi-stage centrifugal
Motor: TEFC, 380/460 VAC, 3-phase, 50/60 Hz.
Standard Features
4" x 40" High rejection membrane elements
5-micron sediment pre-filter housing
Automatic inlet solenoid valve
PLC control
Product water conductivity monitor
Operating pressure gauges
Product and concentrate flow meters
Concentrate and recycle flow control valves
Low inlet pressure switch with shutdown alarm
Auto/Manual wash
Optional Equipment Available
Atmospheric storage tanks with level control and repressurization pump
Pressurized storage vessels
UV
Ozone generator
Membrane clean-in-place (CIP) systems
Pretreatment chemical injection systems



Water Filtration Unit Microfiltration Equipment Specification
Model NoWT-RO-1000
Capacity1000LPH(Liter per Hour)
Nominal Recovery65-75%
Nominal Salt Rejection99.60%
Operating Temperature15°C-45°C
Design Temperature25°C
Feed Pump0.75KW
High Pressure Pump1.50KW
Voltage220V /380V/460V - 50Hz/60Hz
