Production description

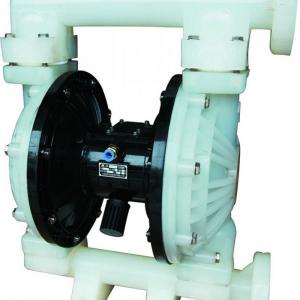

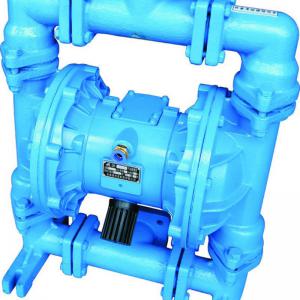

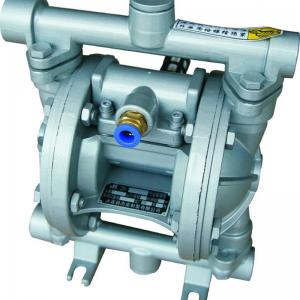

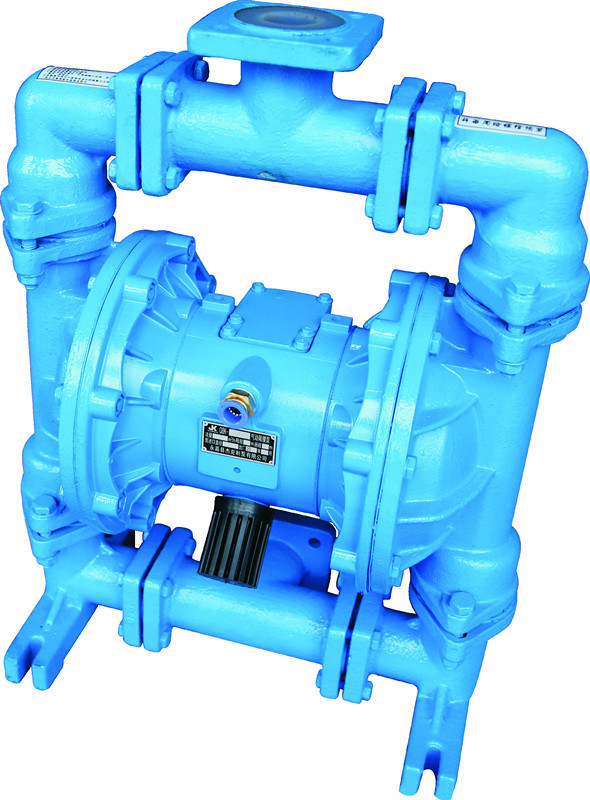

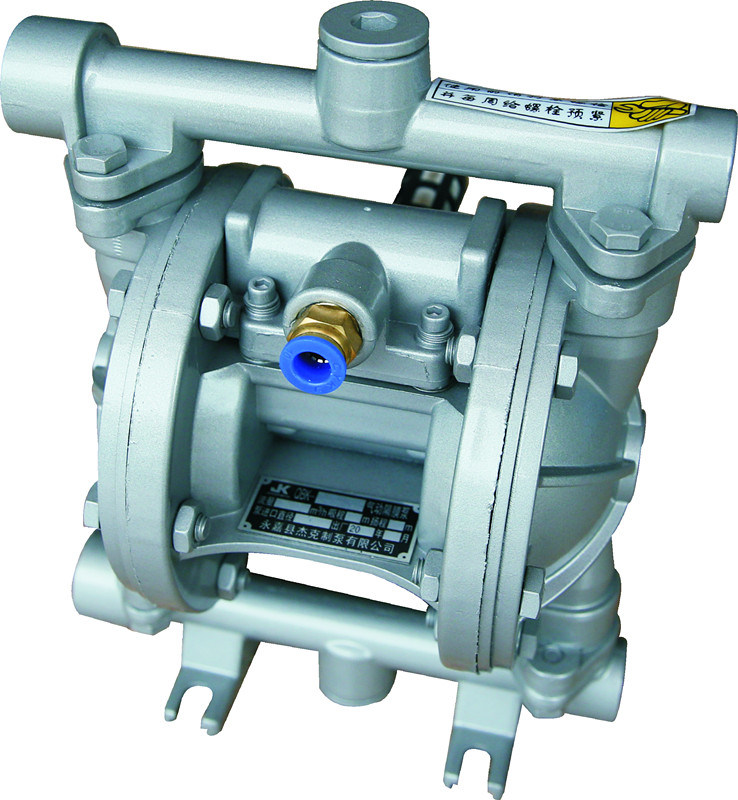

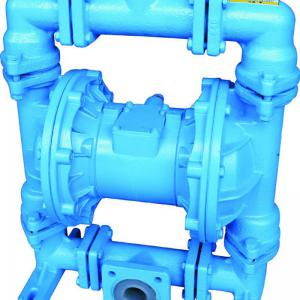

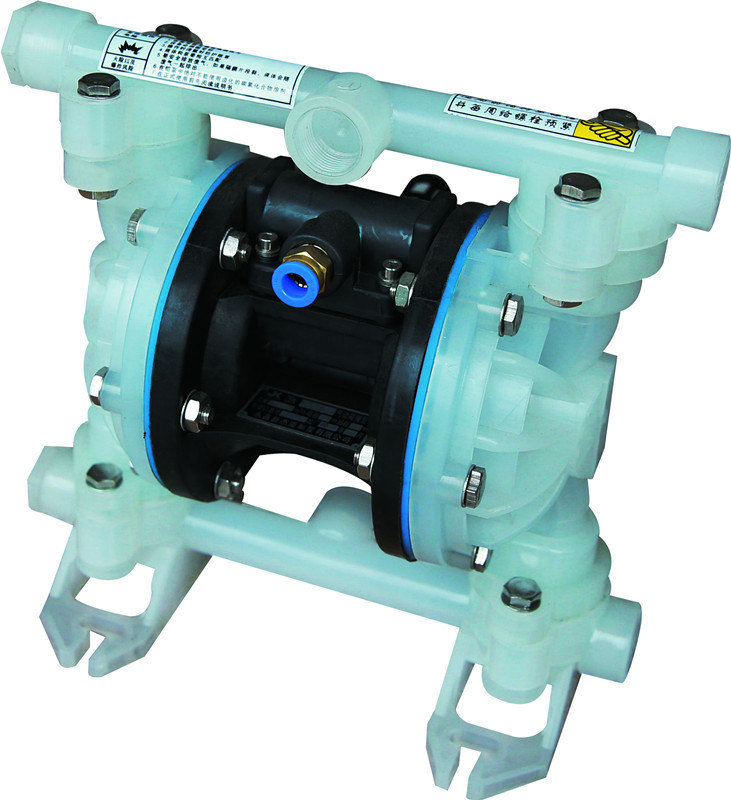

The diaphragm pump includes pneumatic diaphragm pump, electric diaphragm pump, plastic diaphragm pump, cast iron diaphragm pump, stainless steel diaphragm pump, etc.
QBK iscoosai's new develop series of AODD pump which is also the third generation,it has the virtue of long service life and nonstop operation,not only it can convey some uneasy flowed medium,with the merits the merits of self-pumping pump,diving pump,shield pump,slurry pump and impurity pump etc.

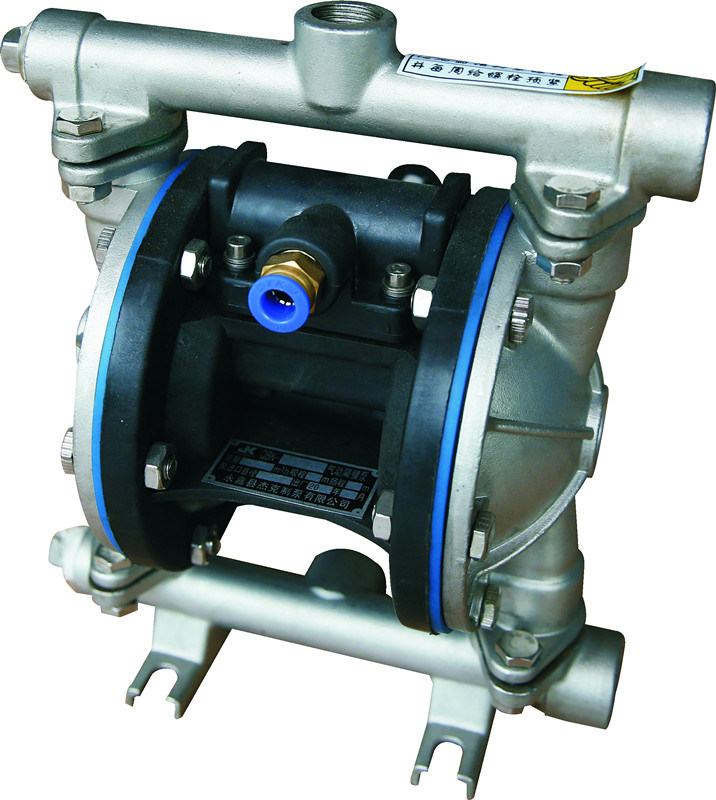

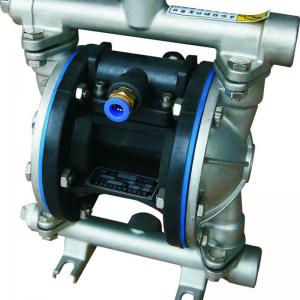

1. QBY Stainless Steel Air Diaphragm Pump for Food& Chemical, Chemical Resistant Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.
2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.
3. QBY air operated double diaphragm pumps not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
Main specifications
| Type | Max Flow Rate (L/Min) | Discharge pressure (Bar) | Sucked Lift (m) | Max Grain Diameter (mm) | Max Air Consumption (L/min) | Materical of Diaphragm | ||||
| una-N | Neoprene | EPDM | Viton | Teflon | ||||||
| QBY-8 | 16 | 6.9 | 5 | 1 | 300 | Y | Y | Y | Y | Y |
| QBY-10 | 20 | 6.9 | 5 | 1 | 300 | Y | Y | Y | Y | Y |
| QBY-15 | 20 | 6.9 | 5 | 1 | 300 | Y | Y | Y | Y | Y |
| QBY-25 | 100 | 6.9 | 5 | 2.5 | 600 | Y | Y | Y | Y | Y |
| QBY-40 | 140 | 6.9 | 5 | 4.5 | 600 | Y | Y | Y | Y | Y |
| QBY-50 | 240 | 6.9 | 5 | 8 | 900 | Y | Y | Y | Y | Y |
| QBY-65 | 280 | 6.9 | 5 | 8 | 900 | Y | Y | Y | Y | Y |
| QBY-80 | 400 | 6.9 | 5 | 10 | 1500 | Y | Y | Y | Y | Y |
| QBY-100 | 480 | 6.9 | 5 | 10 | 1500 | Y | Y | Y | Y | Y |
Package
Contact US
Please contact us for getting detail technical and more information !
Thanks for your vist our products. Have a nice day!
