Wras Ductile Iron with Epoxy Coating Wafer Butterfly Valve

PRIMARY PARAMETERS

Model NO.

D71X

Connection Form

Wafer

Seal Form

Force Sealed

Working Temperature

Low Temperature (-100u00b0C<T<-40u00b0C)

Application

Industrial Usage, Water Industrial Usage

Trademark

KQ or OEM

Specification

ISO Quality Management System

HS Code

8481804090

Driving Mode

Manual

Structure

Centre Sealing

Work Pressure

Low Pressure (Pn<1.6mpa)

Material of Seal Surface

Soft Sealed

1.0,1.6MPa or 125lb ,150lb

Transport Package

Plywood Packing

Origin

Shanghai China

DETAIL DESCRIPTION

Wafer Butterfly Valve

Brief Introduction

The butterfly valve is operated by the disc rotating form 0° to 90°, can be applied to cut off or regulate the flow of medium. The valve can be actuator by operating lever, handle wheel electric actuator or pneumatic actuator. Widely used for potable water supply and distribution, waste water treatment, electric power plant, gas supply, warm-air system, smelting plant, ship building, textile, petroleum, chemistry, or other light industries.

Key feature and benefits
Light weight
Good wear resistance
Compact structure
Low flow resistance
Small operation torque
Easy to install and maintain

Technical Specification

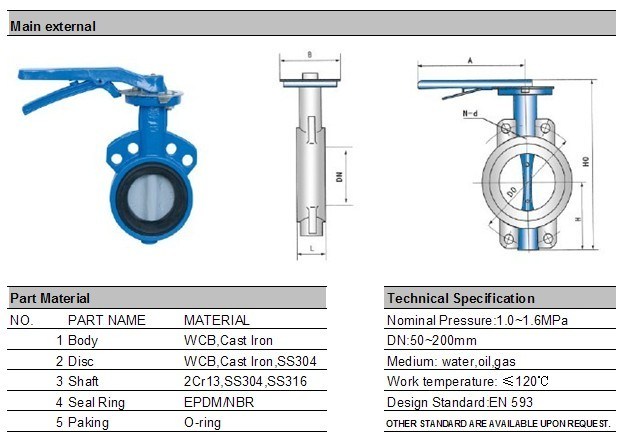

-Nominal diameter:50~200(2~ 8'')
-Nominal pressure:1.0/1.6/2.0Mpa
-Drive mode:Aluminum alloy hand lever.
-Applicable medium:freshwater,sea water,food,natural gas,alcoholic,salt,acid,alkali,oil,steam,air etc.

Wras Ductile Iron with Epoxy Coating Wafer Butterfly Valve

Wras Ductile Iron with Epoxy Coating Wafer Butterfly Valve

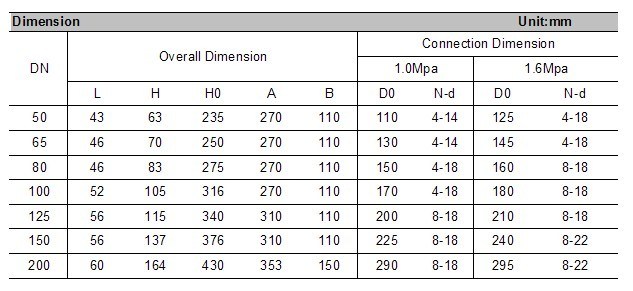

Dimension Unit:mm
DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000	1200
L	43	46	46	52	56	56	60	68	78	78	102	114	127	154	165	190	203	216	254
H	63	70	83	105	115	137	164	206	230	248	289	320	343	413	478	525	585	640	780
Ho	306	321	346	387	411	447	572	646	738	761	877	938	993	1131	1476	1533	1655	1765	1976
A	180	180	180	180	180	270	270	270	380	380	450	480	480	480	640	640	750	850	1500
B	200	200	200	200	200	280	280	280	420	420	470	490	490	490	660	660	860	900	580
D0(1.0MPa)	110	130	150	170	200	225	295	350	400	445	495	550	600	705	810	920	1020	1120	1340
N-d(1.0MPa)	4-14	4-14	4-18	4-18	8-18	8-18	8-18	12-18	12-22	12-22	16-22	16-22	20-22	20-26	24-26	24-30	24-30	28-30	32-33
D0(1.6MPa)	125	145	160	180	210	240	295	350	410	460	515	565	620	725	840	950	1050	1160	1380
N-d(1.6MPa)	4-18	4-18	8-18	8-18	8-18	8-22	8-22	12-22	12-22	16-22	16-22	20-26	20-26	20-30	24-30	24-33	28-33	28-36	32-39
