Plastic Machinery
PVC Machine
Application: This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules.
Specifications Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1. Installed with imported termo controllers, imported inverters or converters.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5. We also can provide a variety of exhaust-type extruder.

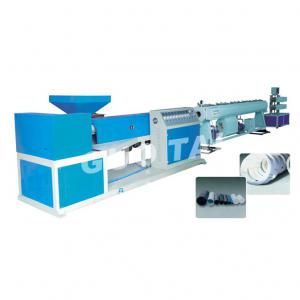

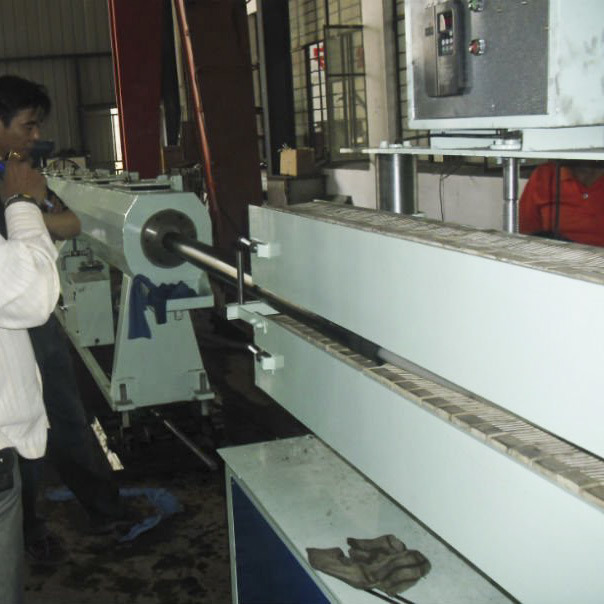

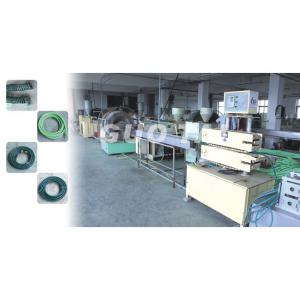

Extrufer for plastic pipe

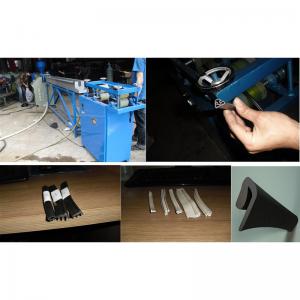

Extruder for plastic profle

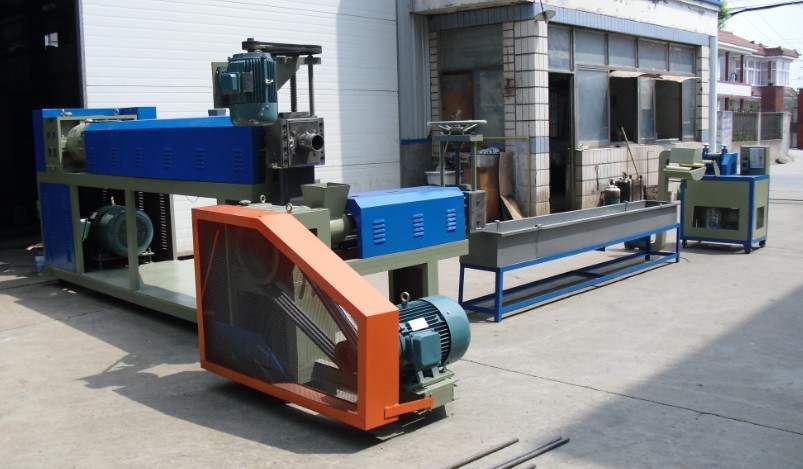

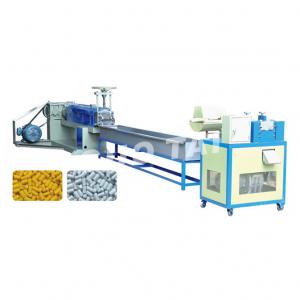

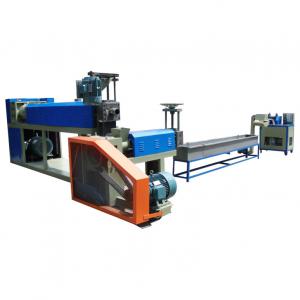

Extruder for plastic granule
Plastic Machinery
PVC Machine
Application: This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules.
Specifications Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1. Installed with imported termo controllers, imported inverters or converters.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5. We also can provide a variety of exhaust-type extruder.
Extrufer for plastic pipe
Extruder for plastic profle
Extruder for plastic granule
|
Mode |
Screw Dia. |
Length to diameter |
Rotational Speed of screw |
Height of center point |
Capacity |
Power Drive motor |
|
SJ-3-/25CY |
30mm |
25: 1 |
10-160r/min |
1000mm |
19.5kg/h |
2.2kw, 3kw |
|
SJ-45D |
45mm |
20: 1 |
10-90r/min |
1000mm |
22.5kg/h |
5.5kw |
|
SJ-45/25CY |
45mm |
25: 1 |
16-160r/min |
1000mm |
35kg/h |
7.5kw, 11kw |
|
SJ-45/28CY |
45mm |
28: 1 |
16-160r/min |
1000mm |
40kg/h |
7.5kw, 11kw |
|
SJ-45/25HY |
45mm |
25: 1 |
16-160r/min |
1000mm |
35kg/h |
11kw |
|
SJ-50/25HY |
50mm |
25: 1 |
16-160r/min |
1000mm |
40kg/h |
11kw, 15kw |
|
SJ-65/25HY |
65mm |
25: 1 |
8-80r/min |
1000mm |
100kg/h |
18.5kw |
|
SJ-65/28CY |
65mm |
25: 1 |
15-120r/min |
1000mm |
100kg/h |
18.5kw, 22kw |
|
SJ-65/28HY |
65mm |
28: 1 |
16-160r/min |
1000mm |
120kg/h |
22kw, 30kw |
|
SJ-65/30CY |
65mm |
30: 1 |
15-120r/min |
1000mm |
120kg/h |
22kw, 30kw, 37kw |
|
SJ-65/34CY |
65mm |
34: 1 |
15-120r/min |
1000mm |
120kg/h |
22kw, 30kw, 37kw |
|
SJ-70/25HY |
70mm |
25: 1 |
8-80r/min |
1000mm |
120kg/h |
22kw |
|
SJ-90/25HY |
90mm |
25: 1 |
10-100r/min |
1000mm |
155kg/h |
30kw, 45kw, 55kw |
|
SJ-120HY |
120mm |
25: 1 |
30-90r/min |
1000mm |
250kg/h |
75kw |
