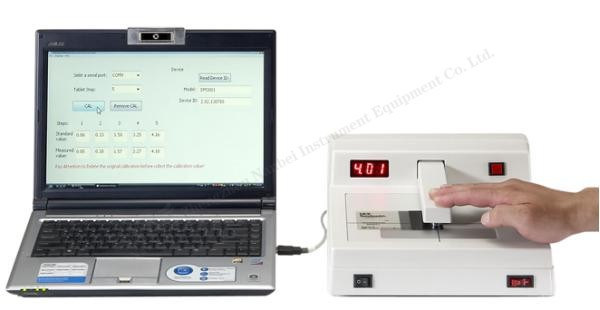

Easy operted Black-White Densitometer with digital display
Black-White Densitometer
The DM3010 black and white densitometer has the use of computer tech quality products. It has a reading accuracy, good stability, appearance, convenient operation and a series of features. It can be widely used for non-destructive testing, printing, medical and other industries. Each instrument are random with density sheet used to verify the accuracy of the instrument.
Specification

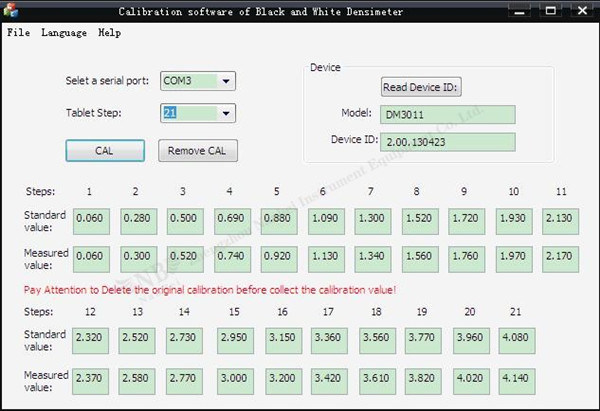

The Calibration Software Interface
Easy operted Black-White Densitometer with digital display
Black-White Densitometer
The DM3010 black and white densitometer has the use of computer tech quality products. It has a reading accuracy, good stability, appearance, convenient operation and a series of features. It can be widely used for non-destructive testing, printing, medical and other industries. Each instrument are random with density sheet used to verify the accuracy of the instrument.
Specification
| Model | DM3010 |
| Density Range | D=0.00—4.00 (DM3010) |
| D=0.00—4.50 (DM3010A) | |
| D=0.00—5.00 (DM3011) | |
| Repeatability | ±0.01 |
| Measuring Error | 0.00—2.00 0.02 |
| 2.00—4.50 0.05 | |
| 4.50—5.00 0.08 | |
| Power | 50 ~ 60Hz, 220V ± 10% |
| Power Dissipation | 25W |
| Aperture Size | Dia. 2mm |
| Display Mode | Three digital display |
| Sampling Time | 0.8 s |
| Communication Port | RS232 Port |
| Software | DmCAL PC software |
| Working Environment | Temperature 0 ºC~40 ºC, Relative humidity≤85% |
| Dimension | 260*265*110 (H×W×L) |
| Weight | 2.1kg |
| Standard Configurations | |
| DM30 Series Black-White Densitometer | Serial Port Cable |
| Standard Step Density Tablet | Software CD |
| Power Line | Quality Certification |
| Packing Case | Operating Manual, Packaging List |
