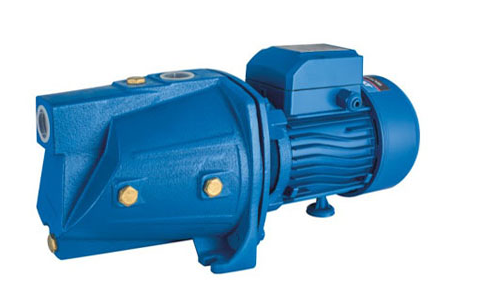

Electric Cast iron Self-priming Jet Pump With CE
Applications
For water supply and drainage of no-sand water and well water.
For farmland, breeding, garden, hotel, canteen and high-rise buildings.
For water pressurization and cooling circulating water such as air conditioners and boilers
For water supply and drainage of centrifugal requirements.
Operating Conditions
Trans medium pH: 6-8.5
Fluid temperature limit: 40ºC
Max ambient temperature: 40ºC
Max.Suction:9m
Insulation Class: B/F
Protection Class: IPx4
Component Material
Pump body: Cast iron
Pump support: Cast iron/ Aluminum
Motor housing: Aluminum
Impeller: Brass/ AISI304/PPO
Shaft with rotor: 45# steel/ AISI416/304 SS
Mechanical seal: Carbon/ Ceramic
Bearing: NSK/ C&U
Cooling:External ventilation
Built-in protector
110V/127V/220V/380V/440V.50Hz/60Hz available

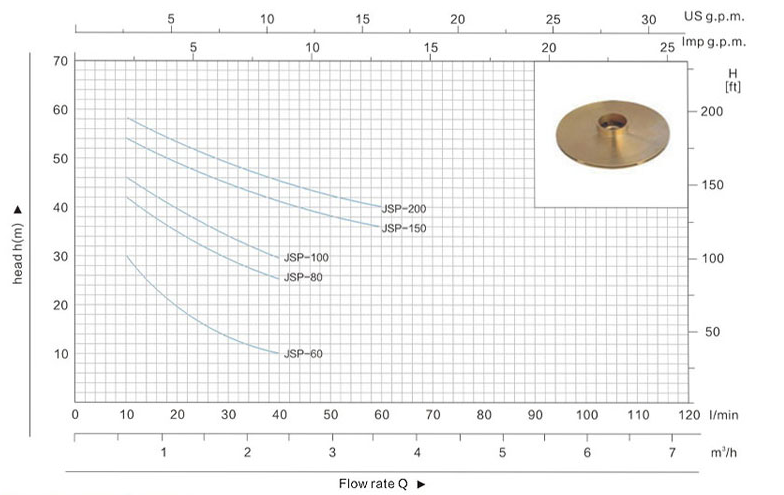

Performance Chart At n=2850RPM
Performance data
Applications
For water supply and drainage of no-sand water and well water.
For farmland, breeding, garden, hotel, canteen and high-rise buildings.
For water pressurization and cooling circulating water such as air conditioners and boilers
For water supply and drainage of centrifugal requirements.
Operating Conditions
Trans medium pH: 6-8.5
Fluid temperature limit: 40ºC
Max ambient temperature: 40ºC
Max.Suction:9m
Insulation Class: B/F
Protection Class: IPx4
Component Material
Pump body: Cast iron
Pump support: Cast iron/ Aluminum
Motor housing: Aluminum
Impeller: Brass/ AISI304/PPO
Shaft with rotor: 45# steel/ AISI416/304 SS
Mechanical seal: Carbon/ Ceramic
Bearing: NSK/ C&U
Cooling:External ventilation
Built-in protector
110V/127V/220V/380V/440V.50Hz/60Hz available
Performance Chart At n=2850RPM
Performance data
| Model | Power | Max.Flow | Max.Head | Max.Suct. | Inlet/Outlet | G.W. | DIMENSION | |
| KW | HP | (1/min) | (m) | (m) | (in) | (Kg) | (mm) | |
| JSP-60 | 0.37 | 0.5 | 40 | 35 | 9 | 1.25"x1"x1" | 13 | 425x200x230 |
| JSP-80 | 0.55 | 0.75 | 40 | 48 | 9 | 1.25"x1"x1" | 14 | 425x200x230 |
| JSP-100 | 0.75 | 1 | 40 | 53 | 9 | 1.25"x1"x1" | 28 | 425x200x230 |
| JSP-150 | 1.1 | 1.5 | 60 | 61 | 9 | 1.5"x1"x1" | 28 | 450x200x230 |
| JSP-200 | 1.5 | 2 | 60 | 65 | 9 | 1.25"x1"x1" | 30 | 435x200x230 |
