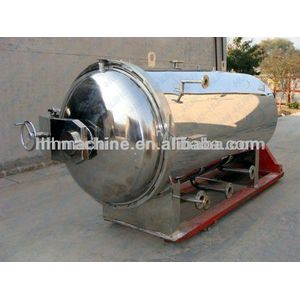

Single-Effect Concentrator (Evaporator) China Supplier
Brief Introduction:
Evaporator in the vacuum concentration device is one of the main equipment in the process of food production. It uses vacuum evaporation or mechanical separation method to concentrate material.
Usages:
It is applicable to Chinese medicine, western medicine, starch sugar, food, dairy products and other material enrichment and industrial organic solvent such as alcohol recovery, suitable for small batch and many varieties of low-temperature vacuum concentration of thermal sensitive material.
Material:
The machine material from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.
Why choosing our machine?
1. Huihe machine have sales department, engineering department, after sales department, we
Will provide you one-stop service for you;
2. We are not competing for the price but the high quality and friendly service we competition
3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;
4. The after sales colleague will service for you from place an order to the actual production;
5.10 years of industry experience, industry leader;
6. Factory, office site visit.

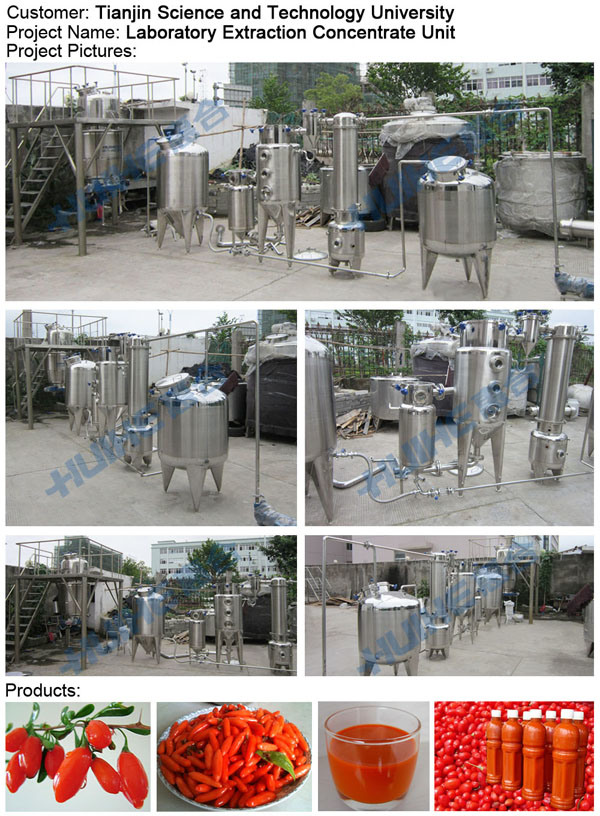

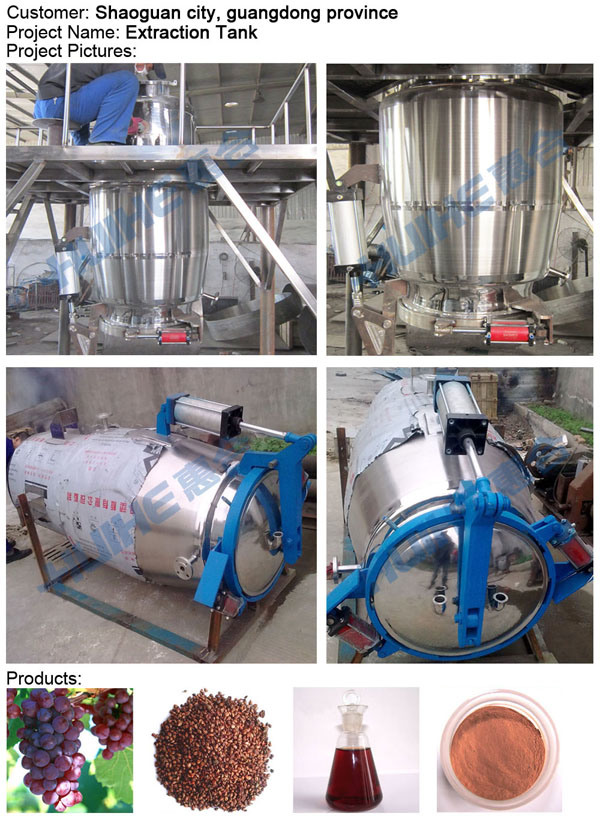

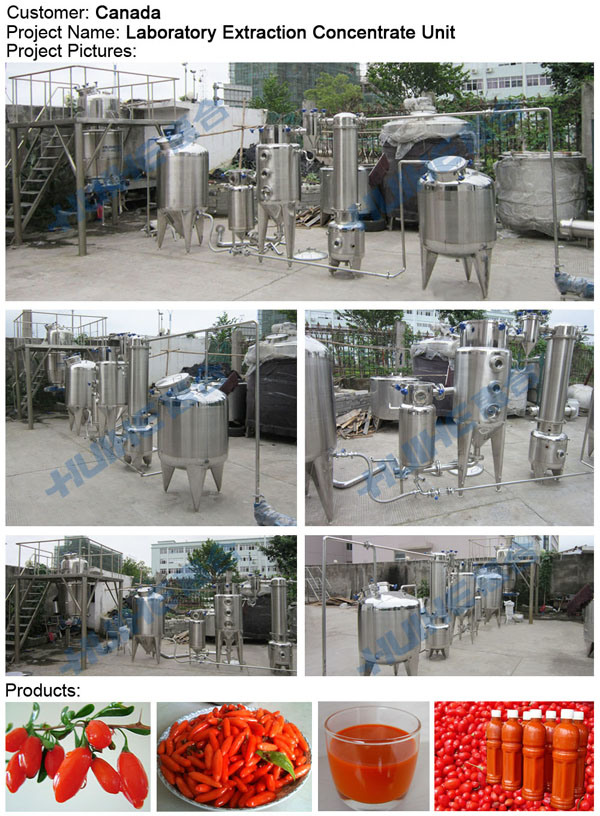

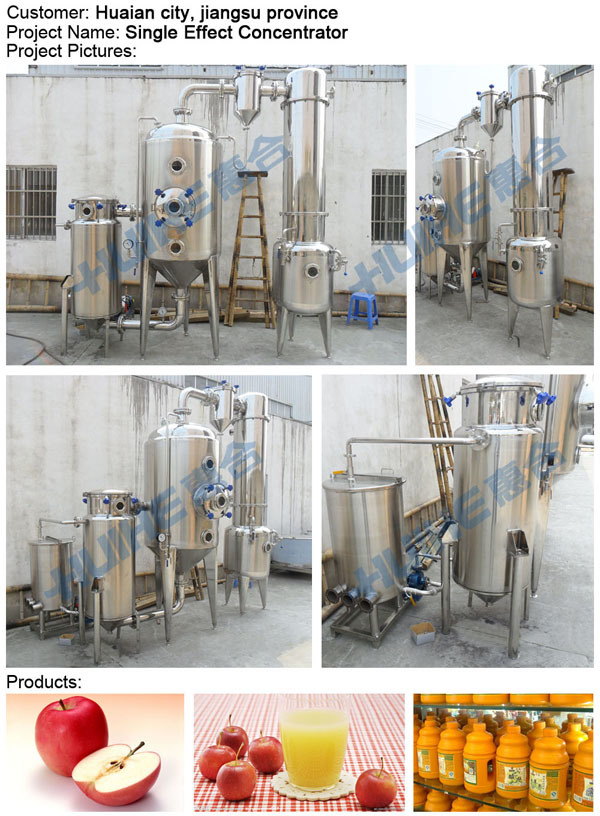

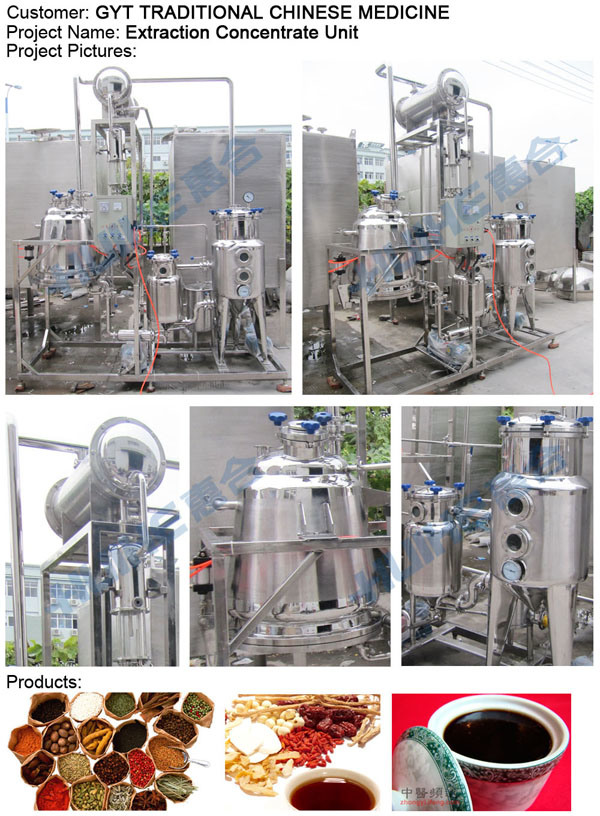

Cooperation Case
Brief Introduction:
Evaporator in the vacuum concentration device is one of the main equipment in the process of food production. It uses vacuum evaporation or mechanical separation method to concentrate material.
Usages:
It is applicable to Chinese medicine, western medicine, starch sugar, food, dairy products and other material enrichment and industrial organic solvent such as alcohol recovery, suitable for small batch and many varieties of low-temperature vacuum concentration of thermal sensitive material.
Material:
The machine material from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.
Why choosing our machine?
1. Huihe machine have sales department, engineering department, after sales department, we
Will provide you one-stop service for you;
2. We are not competing for the price but the high quality and friendly service we competition
3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;
4. The after sales colleague will service for you from place an order to the actual production;
5.10 years of industry experience, industry leader;
6. Factory, office site visit.
| Model | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
| Evaporation(kg/h) | 500 | 2300 | 3200 | 6300 |
| Recycle alcohol concentration(%) | 80-85 | |||
| Vapor pressure (Mpa) | 0.03-0.09 | |||
| Vacuum degree(MPA) | -0.05~ -0.08 | |||
| Evaporation chamber volume(m³) | 1.0 | 1.5 | 2.0 | 2.5 |
| Liquid tank volume(m³) | 0.3 | 0.5 | 0.8 | 1.0 |
| Steam consumption(kg/h) | 520 | 1050 | 1550 | 2100 |
| Water consumption(kg/h) | 7 | 10 | 15 | 20 |
| Heating steam orifices(mm) | 40 | 50 | 80 | 100 |
| Cooling water enter and exit orifices(mm) | 40 | 50 | 65 | 80 |
Cooperation Case
