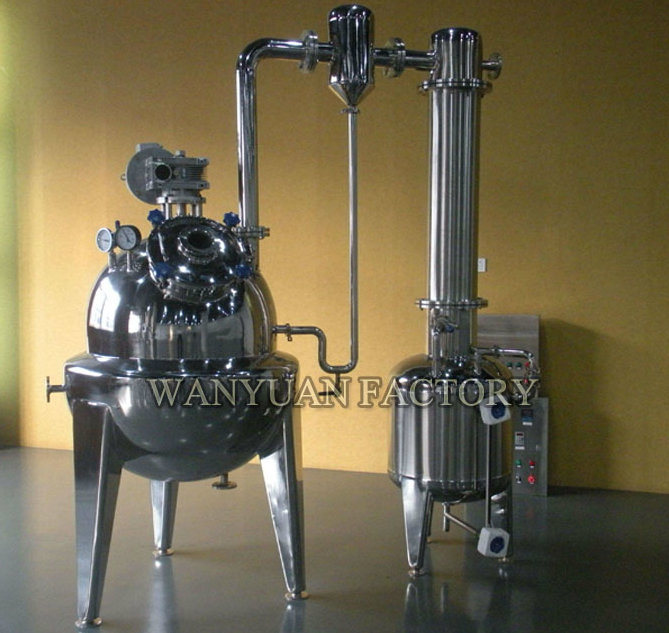

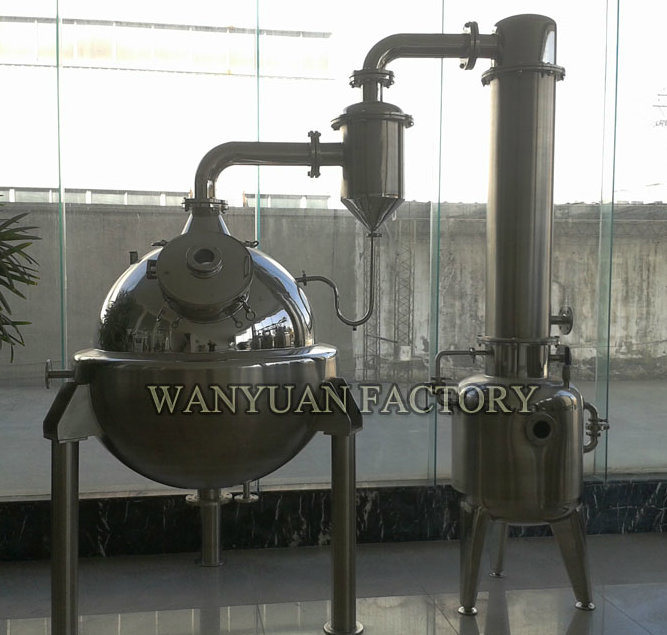

Vacuum Evaporator/ Jam Concentrator
1. Ocr18Ni9 stainless steel
2. Capacity: 300L~1000L
3. Steam pressure: 0.09Mpa
4. Vacuum degree: 500-620mmHg
Specification:
Application
The set can be used to condense and distill liquid material and reclaim organic solution in pharmacy, food and chemical.
Component
The QN series Ball type vacuum concentrator mainly consists of four parts, i. E. Main body of concentrator, condenser, vapor and liquid separator, liquid barrels. It may be used for concentration and distilling of liquid or recycling of organic solvent of pharmacy, foodstuff and chemical industries.
Advantage
By adopting reduced pressure concentration, it has short concentration time and does not destroy effective content of heat-sensitive material.
The parts in contact with material in this equipment made of Ocr18Ni9 stainless steel with good corrosion resistance and long durability and in conformity with sanitary requirement for medicine.
Details:
Materials will flow automatically or be vacuum pumped into concentration tank. Steam will be injetted
Into jacket to heat up and the feeding height is subject to the center of tank viewing mirror. The quantity
Of reflux of rising steam is controlled by the first condenser according to different tanks. Finally industrial
Solvents (such as alcohol) will be got by the liquid receiver after flowing through the second condenser
And cooler. This equipment can be operated under normal pressure or reduced pressure. It can used
For batch production or continuous production. While continues production or feeding, flowmeter should
Be added on feed tube. During continues reduced pressure process, to discharge materials after to
Reinstate normal pressure.
1. Ocr18Ni9 stainless steel
2. Capacity: 300L~1000L
3. Steam pressure: 0.09Mpa
4. Vacuum degree: 500-620mmHg
Specification:
Application
The set can be used to condense and distill liquid material and reclaim organic solution in pharmacy, food and chemical.
Component
The QN series Ball type vacuum concentrator mainly consists of four parts, i. E. Main body of concentrator, condenser, vapor and liquid separator, liquid barrels. It may be used for concentration and distilling of liquid or recycling of organic solvent of pharmacy, foodstuff and chemical industries.
Advantage
By adopting reduced pressure concentration, it has short concentration time and does not destroy effective content of heat-sensitive material.
The parts in contact with material in this equipment made of Ocr18Ni9 stainless steel with good corrosion resistance and long durability and in conformity with sanitary requirement for medicine.
Details:
Materials will flow automatically or be vacuum pumped into concentration tank. Steam will be injetted
Into jacket to heat up and the feeding height is subject to the center of tank viewing mirror. The quantity
Of reflux of rising steam is controlled by the first condenser according to different tanks. Finally industrial
Solvents (such as alcohol) will be got by the liquid receiver after flowing through the second condenser
And cooler. This equipment can be operated under normal pressure or reduced pressure. It can used
For batch production or continuous production. While continues production or feeding, flowmeter should
Be added on feed tube. During continues reduced pressure process, to discharge materials after to
Reinstate normal pressure.
| Parameters | WZ-500 | WZ-1000 | WZ-1500 | WZ-2000 |
| Evaporation capacity (/h) | 500 | 1000 | 1500 | 2000 |
| Steam pressure (Mpa) | <0.25 | |||
| Degree of vacuum (Mpa) | -0.8 | |||
| Concentration ratio | 1.2-1.3 | |||
| size length×width×height(m) | 2×1×3 | 2.2×1.2×3.3 | 2.5×1.3×3.5 |
